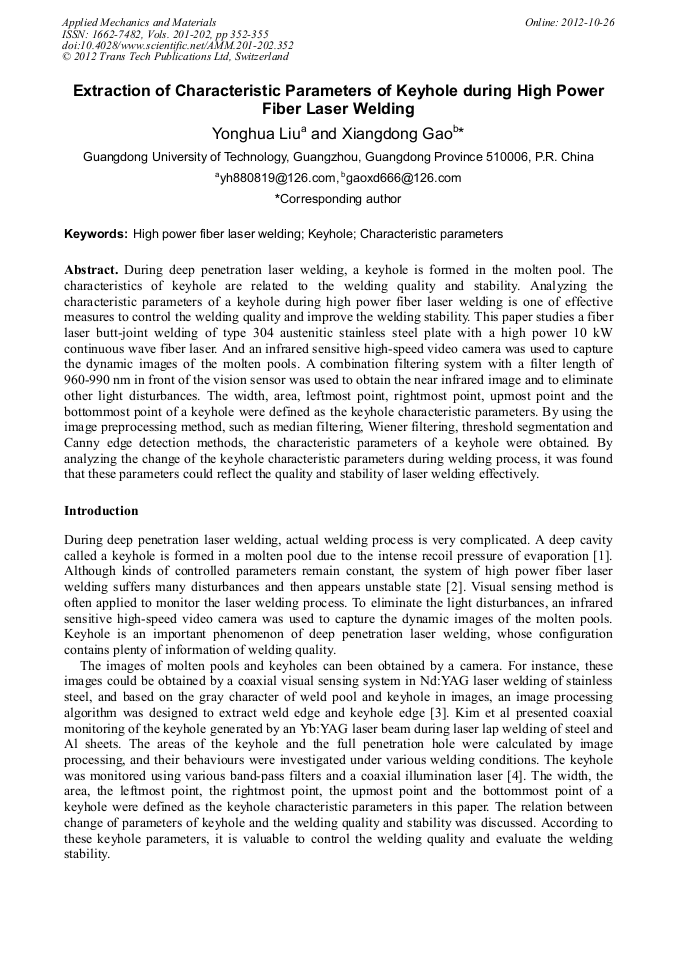

Extraction of Characteristic Parameters of Keyhole during High Power Fiber Laser Welding

Abstract:

During deep penetration laser welding, a keyhole is formed in the molten pool. The characteristics of keyhole are related to the welding quality and stability. Analyzing the characteristic parameters of a keyhole during high power fiber laser welding is one of effective measures to control the welding quality and improve the welding stability. This paper studies a fiber laser butt-joint welding of Type 304 austenitic stainless steel plate with a high power 10 kW continuous wave fiber laser, and an infrared sensitive high-speed video camera was used to capture the dynamic images of the molten pools. A combination filtering system with a filter length of 960-990nm in front of the vision sensor was used to obtain the near infrared image and eliminate other light disturbances. The width, the area, the leftmost point, the rightmost point, the upmost point and the bottommost point of a keyhole were defined as the keyhole characteristic parameters. By using the image preprocessing method, such as median filtering, Wiener filtering, threshold segmentation and Canny edge detection methods, the characteristic parameters of a keyhole were obtained. By analyzing the change of the keyhole characteristic parameters during welding process, it was found that these parameters could reflect the quality and stability of laser welding effectively.

• Periodical: Applied Mechanics and Materials (Volumes 201-202)
• Pages: 352-355
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.201-202.352
• Online since: October 2012
• Authors: Yong Hua Liu, Xiang Dong Gao
• Keywords: Characteristic Parameters, High Power Fiber Laser Welding, Keyhole

References

[1] R.P. Wang, Y.P. Lei and Y.W. Shi: Applied Mechanics and Materials, Vols. 29-32 (2010) pp.252-257.

[2] X.D. Gao, L. Mo, X.G. Zhong, D.Y. You and S.J. Katayama: Acta Physica Sinica, Vol. 60 (2011) No.8, pp.0881051-0881058 (In Chinese).

[3] J.Q. Gao, G.L. Qin, J.L. Yang, J.G. He, T. Zhang and C.S. Wu: Transactions of Nonferrous Metals Society of China, Vol. 21 (2011), No.2, pp.423-428.

[4] C. H. Kim and D.C. Ahn: Optics & Laser Technology, Vol. 44 (2012) No.6, pp.1874-1880.

[5] X.D. Gao, D.Y. You, S.J. Katayama and Y.S. Kawahito: Proceedings of LAMP 2009-the 5th International Congress on Laser Advanced Materials Processing (Cobe, Japan, June 29- July2, 2009), (298):09-150.
