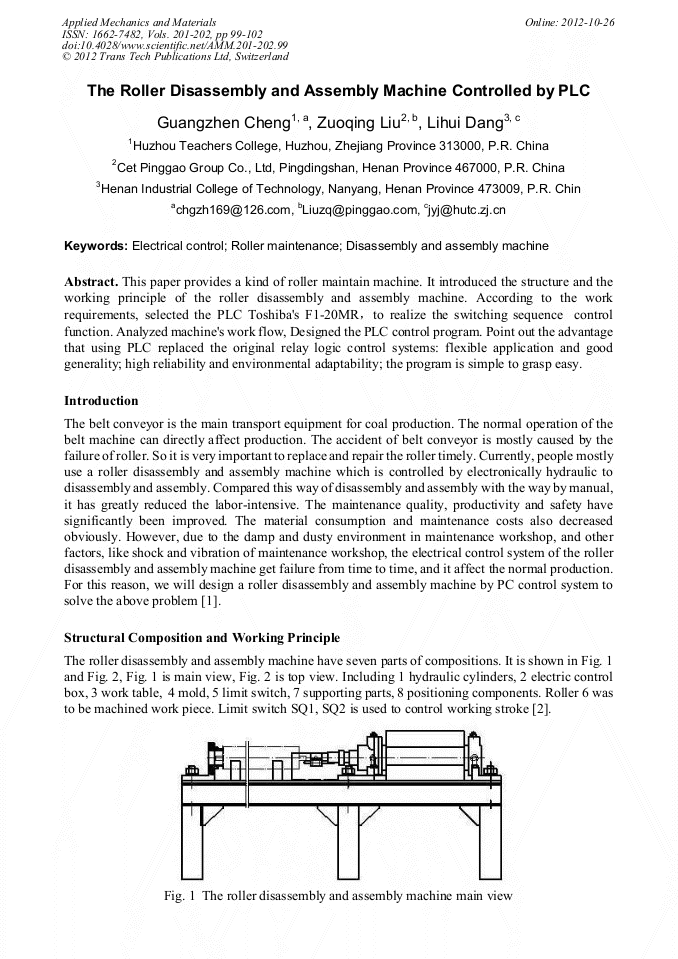

The Roller Disassembly and Assembly Machine Controlled by PLC

Abstract:

This paper provides a kind of roller maintain machine. It introduced the structure and the working principle of the roller disassembly and assembly machine. According to the work requirements, selected the PLC Toshiba's F1-20MR，to realize the switching sequence control function. Analyzed machine's work flow, Designed the PLC control program. Point out the advantage that using PLC replaced the original relay logic control systems: flexible application and good generality, high reliability and environmental adaptability; the program is simple to grasp easy.

• Periodical: Applied Mechanics and Materials (Volumes 201-202)
• Pages: 99-102
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.201-202.99
• Online since: October 2012
• Authors: Guang Zhen Cheng, Zuo Qing Liu, Li Hui Dang
• Keywords: Assembly Machine, Disassembly Machine, Electrical Control, Roller Maintenance

References

[1] Y.J. Jia and G.Z. Cheng: Coal Mine Machinery, (1995) No.4, pp.34-36 (in Chinese).

[2] Y.S. Fan and M. Wang: Electrical Control and Application of PLC. China Electricity Press, China 2004 (in Chinese).

[3] L.H. Dang: Coal Mine Machinery, (2005) No.2, pp.93-95 (in Chinese).

[4] Y.J. Jia and G.Z. Cheng: Chinese Hydraulics and Pneumatics, (2009) No.9, pp.4-6 (in Chinese).

[5] Z.P. Zhang: Electrical Control and Programmable Controller. China Chemical Industry Press, China 2007 (in Chinese).

[6] H.J. Zhang: Hydraulic metal cutting machine tools (Jiangsu Science and Technology Press, China 2009 (in Chinese).
