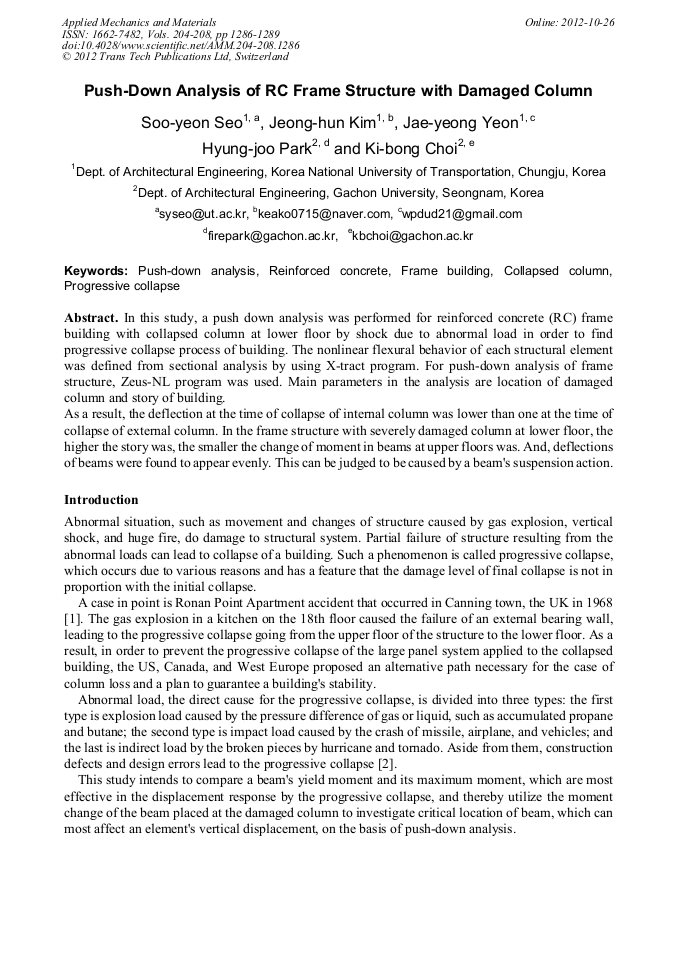

Push-Down Analysis of RC Frame Structure with Damaged Column

Abstract:

In this study, a push down analysis was performed for reinforced concrete (RC) frame building with collapsed column at lower floor by shock due to abnormal load in order to find progressive collapse process of building. The nonlinear flexural behavior of each structural element was defined from sectional analysis by using X-tract program. For push-down analysis of frame structure, Zeus-NL program was used. Main parameters in the analysis are location of damaged column and story of building. As a result, the deflection at the time of collapse of internal column was lower than one at the time of collapse of external column. In the frame structure with severely damaged column at lower floor, the higher the story was, the smaller the change of moment in beams at upper floors was. And, deflections of beams were found to appear evenly. This can be judged to be caused by a beam's suspension action.

You might also be interested in these eBooks

Progress in Industrial and Civil Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 204-208)

Pages:

1286-1289

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.204-208.1286

Citation:

Cite this paper

Online since:

October 2012

Authors:

Soo Yeon Seo, Jeong Hun Kim, Jae Yeong Yeon, Hyung Joo Park, Ki Bong Choi

Keywords:

Collapsed Column, Frame Building, Progressive Collapse, Push-down Analysis, Reinforced Concrete (RC)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B. Ellingwood: Mitigating Risk from Abnormal Loads and Progressive Collapse: Journal of Performance of Cunstructed Facilities., Vol 20, Issue 4 (2006), pp.315-323

DOI: 10.1061/(asce)0887-3828(2006)20:4(315)

Google Scholar

[2] Y. Liu: Progressive-Failure Analysis of Steel building Structures under Abnormal Loads: PhD Thesis, University of Waterloo, Waterloo, Ontario, Canada (2007)

Google Scholar

[3] GSA, in: Progressive-Collapse analysis and design guidelines for new federal office buildings and major medernization projects, The U.S. General Services Administration, Washington D.C. (2003)

Google Scholar

[4] Unified Facilities Criteria (UFC) DoD, in: Design of Buildings to Resist Progressive Collapse (UFC4-023-03), Department of Defense (2005)

Google Scholar

[5] Architectural Institute of Korea, in: Korean Building Code (2008)

Google Scholar

[6] Imbsen software systems: XTRACT Program V.3.0.8 (2007)

Google Scholar
