The Influence of the Twin-Parallel-Tunnels Passing through Construction on Buried Oil & Gas Pipeline

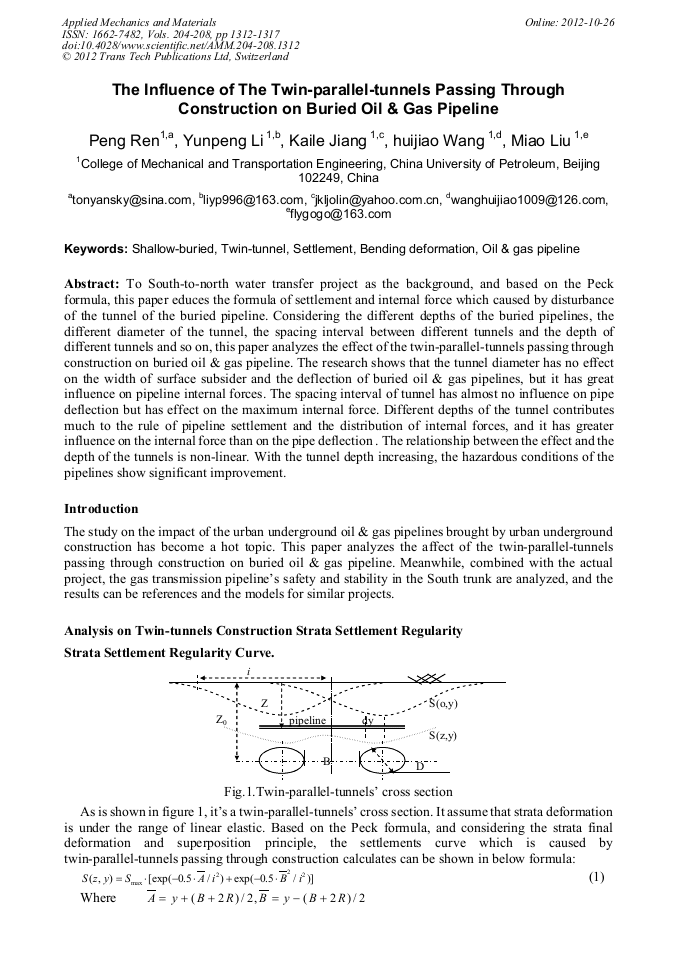

Abstract:

To South-to-north water transfer project as the background, and based on the Peck formula, this paper educes the formula of settlement and internal force which caused by disturbance of the tunnel of the buried pipeline. Considering the different depths of the buried pipelines, the different diameter of the tunnel, the spacing interval between different tunnels and the depth of different tunnels and so on, this paper analyzes the effect of the twin-parallel-tunnels passing through construction on buried oil & gas pipeline. The research shows that the tunnel diameter has no effect on the width of surface subsider and the deflection of buried oil & gas pipelines, but it has great influence on pipeline internal forces. The spacing interval of tunnel has almost no influence on pipe deflection but has effect on the maximum internal force. Different depths of the tunnel contributes much to the rule of pipeline settlement and the distribution of internal forces, and it has greater influence on the internal force than on the pipe deflection . The relationship between the effect and the depth of the tunnels is non-linear. With the tunnel depth increasing, the hazardous conditions of the pipelines show significant improvement.

• Periodical: Applied Mechanics and Materials (Volumes 204-208)
• Pages: 1312-1317
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.204-208.1312
• Online since: October 2012
• Authors: Peng Ren, Yun Peng Li, Kai Le Jiang, Hui Jiao Wang, Miao Liu
• Keywords: Bending Deformation, Oil & Gas Pipeline, Settlement, Shallow-Buried, Twin-Tunnel

References

[1] Han Xuan, Luo Wenlin, Li Ning. The Width of Settlement Trough Influenced by Tunneling in Soft Ground. Chinese Journal of Underground Space and Engineering. 5, 6 (2009).

[2] Mair R J, Taylor R N, Bracegirdle A. Subsurface settlement profiles above tunnel in c lays. Geotechnique. 2, 43 (1993).

[3] Bi Ji-hong, Liu Wei, Wang Zhi-feng. Analysis of effects of tunnel excavation on underground pipeline. Rock and Soil Mechanics. 8, 27 (2006).

[4] Wu Bo, Gao Bo. 3D Numerical Simulation on Effect of Tunnel Construction on Adjacent Piopeline. Chinese Journal of Rock Mechanics and Engineering. 2, 21 (2002).

[5] Yang Zhiming, Su Yaojun. Analysis of Values for Control of In-service Natural Gas Pipeline Settlement. China Municipal Engineering. 4. (2006).

[6] Feng Yuhua, Xia Xinyu. Analysis on Strength Design of Buried Oil Pipeline. Oil-Gasfield Surface Engineering. 9, 28. (2009).

[7] Duan Qingquan, Zhang Hong, Yan Feng. Study of influence factors of yield strength of oil and gas pipeline. China Petroleum Machinery. 9, 39 (2007).

[8] Wang Yali, Li Yunpeng, Yuan Hong-hu, et al. Study on the Deformation Law of Overlying Buried Gas Pipeline by Excavation of Shallow Double Tunnel, ICPTT2011, (2011) October26-29; Beijing, China.

DOI: 10.1061/41202(423)201
