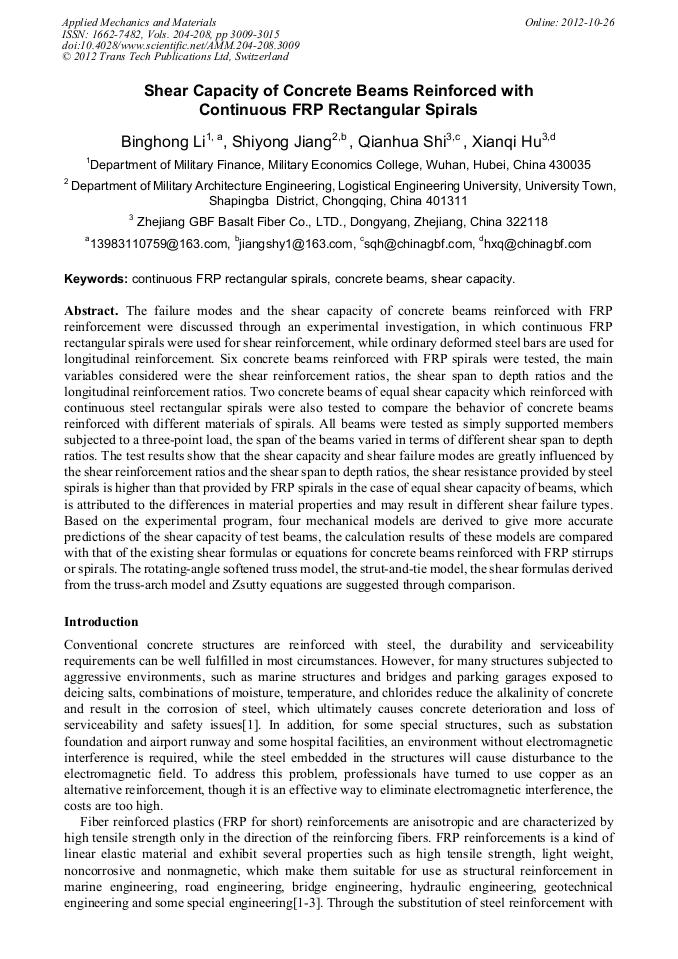

Shear Capacity of Concrete Beams Reinforced with Continuous FRP Rectangular Spirals

Abstract:

The failure modes and the shear capacity of concrete beams reinforced with FRP reinforcement were discussed through an experimental investigation, in which continuous FRP rectangular spirals were used for shear reinforcement, while ordinary deformed steel bars are used for longitudinal reinforcement. Six concrete beams reinforced with FRP spirals were tested, the main variables considered were the shear reinforcement ratios, the shear span to depth ratios and the longitudinal reinforcement ratios. Two concrete beams of equal shear capacity which reinforced with continuous steel rectangular spirals were also tested to compare the behavior of concrete beams reinforced with different materials of spirals. All beams were tested as simply supported members subjected to a three-point load, the span of the beams varied in terms of different shear span to depth ratios. The test results show that the shear capacity and shear failure modes are greatly influenced by the shear reinforcement ratios and the shear span to depth ratios, the shear resistance provided by steel spirals is higher than that provided by FRP spirals in the case of equal shear capacity of beams, which is attributed to the differences in material properties and may result in different shear failure types. Based on the experimental program, four mechanical models are derived to give more accurate predictions of the shear capacity of test beams, the calculation results of these models are compared with that of the existing shear formulas or equations for concrete beams reinforced with FRP stirrups or spirals. The rotating-angle softened truss model, the strut-and-tie model, the shear formulas derived from the truss-arch model and Zsutty equations are suggested through comparison.

• Periodical: Applied Mechanics and Materials (Volumes 204-208)
• Pages: 3009-3015
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.204-208.3009
• Online since: October 2012
• Authors: Bing Hong Li, Shi Yong Jiang, Qian Hua Shi, Xian Qi Hu
• Keywords: Concrete Beam, Continuous FRP Rectangular Spirals, Shear Capacity

References

[1] ACI Committee 440. Guide for the Design and Construction of Concrete Reinforced with FRP Bars, ACI 440. 1R-06[R]. Farmington Hills, Michigan: American Concrete Institute Committee 440, (2006).

DOI: 10.14359/51700867

[2] ACI Committee 440. Prestressing Concrete Structures with FRP Tendons, ACI 440. 4R-04[R]. Farmington Hills, Michigan: American Concrete Institute Committee 440, (2004).

DOI: 10.1061/40753(171)160

[3] Hao Qing-duo, Wang Bo, Ou Jin-ping: Concrete. No. 9(2006), p.38 (in Chinese).

[4] R. Morphy. Behavior of Fiber Reinforced Polymer (FRP) Stirrups as Shear Reinforcement for Concrete Structures[D]. Winnipeg, Manitoba: University of Manitoba, (1999).

[5] Tomoya Nagasaka, Hiroshi Fukuyama, Masamaru Tanigaki: Special Publication(ACI Publications). Vol. 138(1993), p.789.

[6] E. Shehata, R. Morphy, S. Rizkalla: Special Publication(ACI Publications). Vol. 188(1999), p.157.

[7] Ahmed K. El-Sayed, Ehab El-Salakawy, B. Benmokrane: Journal of Composites for Constructure. Vol. 11, No. 4(2007), p.352.

[8] A.Z. Fam, A.A. Abdelrahman, S.H. Rizkalla et al. FRP Flexural and Shear Reinforcements for Highway Bridges in Manitoba[EB/OL]. http: /www4. ncsu. edu/~srizkal/TechPapers1994-95/FrpFlexturalAndShearReinforcement_Fam_May95. pdf . 105-112.

[9] Japanese Society of Civil Engineers. Recommendation for Design and Construction of Concrete Structures Using Continuous Fiber Reinforcing Materials[S]. Tokyo, Japan: Japan Society of Civil Engineers, (1997).

[10] Canadian Standards Association. Design and Construction of Building Components with Fiber-Reinforced Polymers[S]. Toronto, Ontario: Canadian Standards Association, (2002).

[11] GB50010-2002. Code for Design of Concrete Structures[S]. Beijing: Ministry of Construction of the People's Republic of China, 2002 (in Chinese).

[12] Raffaello Fico, Andrea Prota, Gaetano Manfredi: Composites. Vol. 39(2008), p.792.

[13] Zhang Chuan, Zhang Baisheng, Huang Jianfeng: Journal of Chongqing Jianzhu University. Vol. 27, No. 1(2005), p.48 (in Chinese).

[14] F.M. Wegian, H.A. Abdalla: Composite Structures. Vol. 71(2005), p.130.

[15] Li Binghong. Study on Flexural and Shear Behavior of Concrete Beams Reinforced with BFRP Bars and Continuous BFRP Rectangular Spirals[D]. Chongqing, China: Logistical Engineering University, 2011 (in Chinese).
