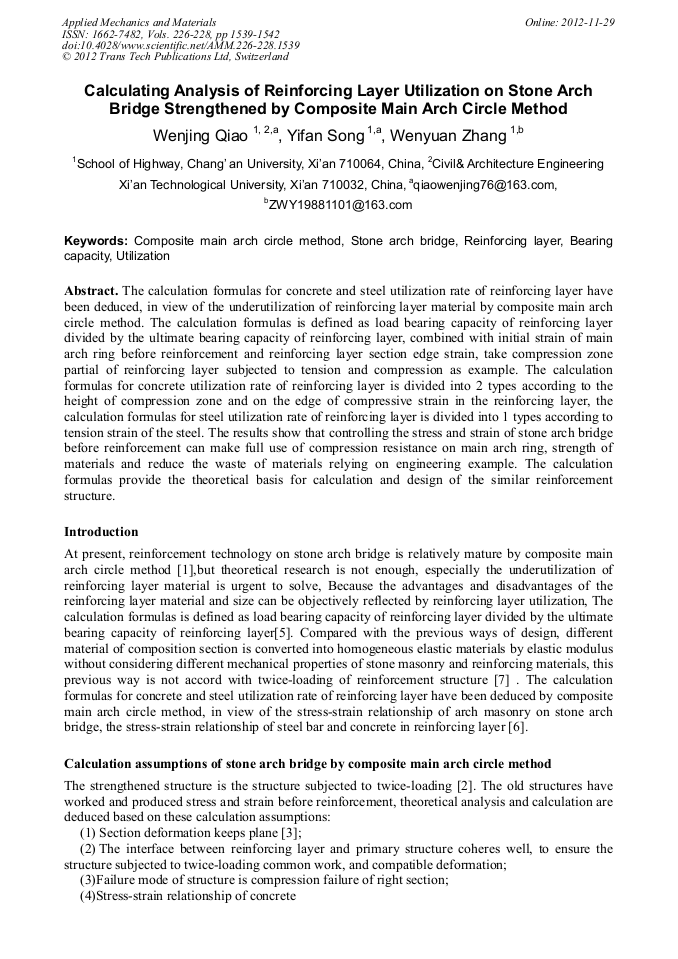

Calculating Analysis of Reinforcing Layer Utilization on Stone Arch Bridge Strengthened by Composite Main Arch Circle Method

Abstract:

The calculation formulas for concrete and steel utilization rate of reinforcing layer have been deduced, in view of the underutilization of reinforcing layer material by composite main arch circle method. The calculation formulas is defined as load bearing capacity of reinforcing layer divided by the ultimate bearing capacity of reinforcing layer, combined with initial strain of main arch ring before reinforcement and reinforcing layer section edge strain, take compression zone partial of reinforcing layer subjected to tension and compression as example. The calculation formulas for concrete utilization rate of reinforcing layer is divided into 2 types according to the height of compression zone and on the edge of compressive strain in the reinforcing layer, the calculation formulas for steel utilization rate of reinforcing layer is divided into 1 types according to tension strain of the steel. The results show that controlling the stress and strain of stone arch bridge before reinforcement can make full use of compression resistance on main arch ring, strength of materials and reduce the waste of materials relying on engineering example. The calculation formulas provide the theoretical basis for calculation and design of the similar reinforcement structure.

• Periodical: Applied Mechanics and Materials (Volumes 226-228)
• Pages: 1539-1542
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.226-228.1539
• Online since: November 2012
• Authors: Wen Jing Qiao, Yi Fan Song, Wen Yuan Zhang
• Keywords: Bearing Capacity, Composite Main Arch Circle Method, Reinforcing Layer, Stone Arch Bridge, Utilization

References

[1] Garmendia.L,San-Jose.J.T,Garcia.D and Larrinaga.P: Construction and Building Materials Vol.25(2011) .No.12, pp.4374-4385

DOI: 10.1016/j.conbuildmat.2011.03.065

[2] Y.H.ZHANG and J.T.ZHOU: International Conference on Transportation Engineering (China, 2007) pp.3097-3102

[3] J.ZHANG and Y.J.QIAN: Journal of Highway and Transportation Research and Development, Vol. 25(2008) No. 6, pp.76-80 (In Chinese)

[4] J.ZHANG and Y.J.QIAN: Journal of Experimental Mechanics, Vol. 25(2010) No.1, pp.106-112 (In Chinese)

[5] Ombres and Luciano: Composite Structures, vol. 94(2011). No.1, pp.143-155

[6] D. L. Hu, K. Jiang, Q. X. Sun and L. Han: Applied Mechanics and Materials, (China,2007) Vol. 71-78, pp.4374-4385

[7] Qubey R S: Indian Concrete Journal, Vol. 6(2011) No. 85, pp.56-60
