Dynamic Analysis of the Rotor System with a Semi-Elliptical Fronted Crack on the Shaft

Abstract:

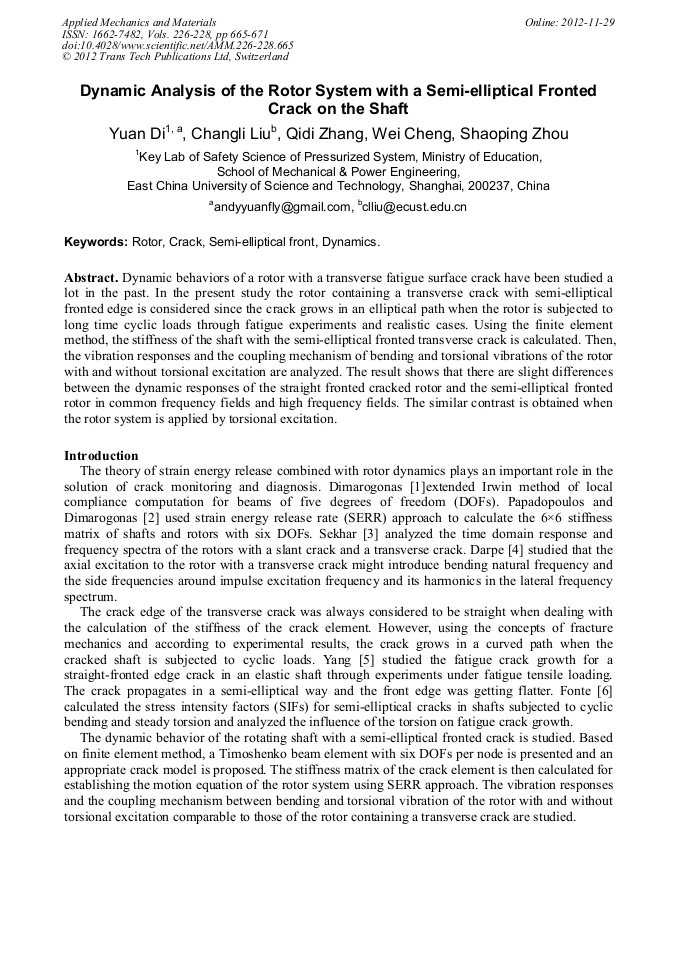

Article Preview

Dynamic behaviors of a rotor with a transverse fatigue surface crack have been studied a lot in the past. In the present study the rotor containing a transverse crack with semi-elliptical fronted edge is considered since the crack grows in an elliptical path when the rotor is subjected to long time cyclic loads through fatigue experiments and realistic cases. Using the finite element method, the stiffness of the shaft with the semi-elliptical fronted transverse crack is calculated. Then, the vibration responses and the coupling mechanism of bending and torsional vibrations of the rotor with and without torsional excitation are analyzed. The result shows that there are slight differences between the dynamic responses of the straight fronted cracked rotor and the semi-elliptical fronted rotor in common frequency fields and high frequency fields. The similar contrast is obtained when the rotor system is applied by torsional excitation.

Info:

Periodical:

Edited by:

Chunliang Zhang and Paul P. Lin

Pages:

665-671

Citation:

Y. Di et al., "Dynamic Analysis of the Rotor System with a Semi-Elliptical Fronted Crack on the Shaft", Applied Mechanics and Materials, Vols. 226-228, pp. 665-671, 2012

Online since:

November 2012

Export:

Price:

$38.00

[1] A.D. Dimarogonas, C.A. Papadopoulos: Journal of Sound and Vibration, Vol. 91 (1983) No. 4, pp.583-593.

[2] C.A. Papadopoulos, A.D. Dimarogonas: Journal of Sound and Vibration, Vol. 117 (1987) No. 1, pp.81-93.

[3] A.S. Sekhar, P.B. Prasad: Journal of Sound and Vibration, Vol. 208 (1997) No. 3, pp.457-474.

[4] A. K. Darpe, A. Chawla and K. Gupta: Journal of Sound and Vibration, Vol. 249 (2002) No. 3, pp.649-675.

[5] F.P. Yang, Z.B. Kuang and V.N. Shlyannikov: International Journal of Fatigue, Vol. 28 (2006), pp.431-437.

[6] M. Fonte, L. Reis, F. Romeiro, B. Li and M. Freitas: International Journal of Fatigue, Vol. 28 (2006), pp.609-617.
