Studies on Ignition Delay and Flame Spread in High-Performance Solid Rocket Motors

Abstract:

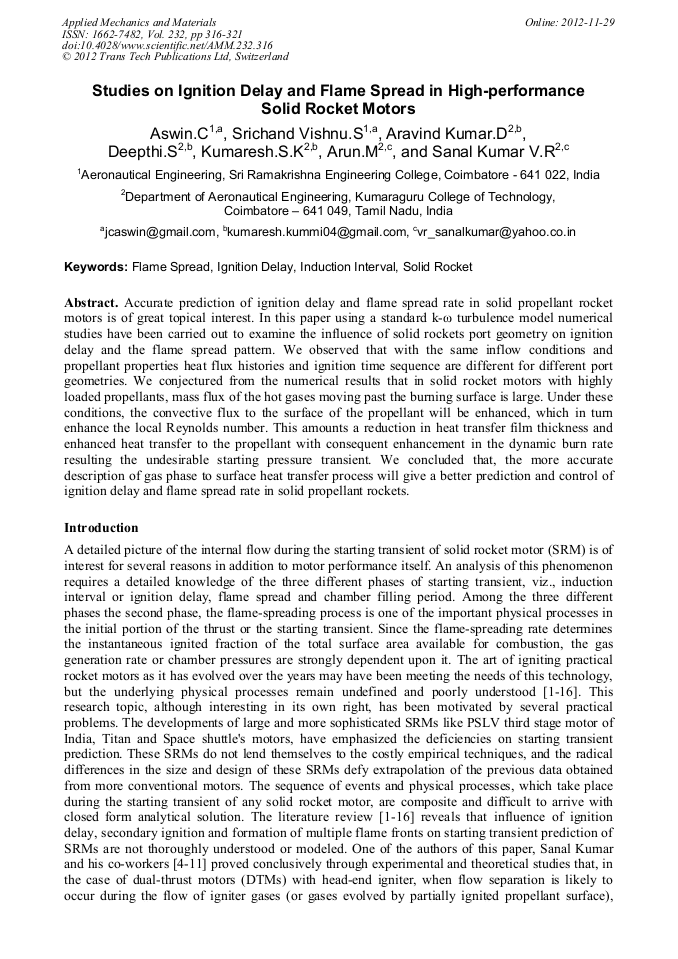

Article Preview

Accurate prediction of ignition delay and flame spread rate in solid propellant rocket motors is of great topical interest. In this paper using a standard k-ω turbulence model numerical studies have been carried out to examine the influence of solid rockets port geometry on ignition delay and the flame spread pattern. We observed that with the same inflow conditions and propellant properties heat flux histories and ignition time sequence are different for different port geometries. We conjectured from the numerical results that in solid rocket motors with highly loaded propellants, mass flux of the hot gases moving past the burning surface is large. Under these conditions, the convective flux to the surface of the propellant will be enhanced, which in turn enhance the local Reynolds number. This amounts a reduction in heat transfer film thickness and enhanced heat transfer to the propellant with consequent enhancement in the dynamic burn rate resulting the undesirable starting pressure transient. We concluded that, the more accurate description of gas phase to surface heat transfer process will give a better prediction and control of ignition delay and flame spread rate in solid propellant rockets.

Info:

Periodical:

Edited by:

Amanda Wu

Pages:

316-321

Citation:

C. Aswin et al., "Studies on Ignition Delay and Flame Spread in High-Performance Solid Rocket Motors", Applied Mechanics and Materials, Vol. 232, pp. 316-321, 2012

Online since:

November 2012

Export:

Price:

$38.00

[1] Kumar, M. and Kuo, K. K. Flame spreading and overall ignition transient, Prog. Astronaut. & Aeronaut. Vol. 90, pp.305-60 (1983).

[2] Caveny, L. H. and Kuo, K. K., Ignition transients of large segmented solid rocket boosters, NASA CR-150162, April (1976).

[3] A. Peretz, K. KKuo, L.H. Caveny, and M. Summerfield, Starting transient of SRMs with high internal gas velocities, AIAA J., Vol. 11, No. 12, pp.1719-1729 (1973).

DOI: https://doi.org/10.2514/3.50676

[4] Sanal Kumar, V.R., Thermoviscoelastic characterization of a composite solid propellant using tubular test, Journal of Propulsion and Power, Vol. 19, No. 3, pp.397-404 (2003).

DOI: https://doi.org/10.2514/2.6143

[5] Raghunandan, B. N., Sanal Kumar, V. R., Unnikrishnan, C and Sanjeev, C., Flame spread with sudden expansions of ports of solid propellant rockets, Journal of Propulsion and Power, Vol. 17, No. 1, January – February (2001).

DOI: https://doi.org/10.2514/2.5709

[6] Sanal Kumar, V. R., Raghunandan, B.N., Kawakami.T., Kim, H.D., Setoguchi, T., and Raghunathan,S., Boundary layer effects on internal flow choking in dual-thrust solid rocket motors, Journal of Propulsion and Power, Vol. 14, No. 2, March-April (2008).

DOI: https://doi.org/10.2514/1.30649

[7] Sanal Kumar, V. R., Raghunandan, B. N., Kim, H.D., Sameen.A., Setoguchi, T., and Raghunathan, S, Starting Transient Flow Phenomena in Inert Simulators of SRMs with Divergent Ports, AIAA Journal of Propulsion and Power, Vol. 22, No. 5, pp.1138-1141 (2006).

DOI: https://doi.org/10.2514/1.16439

[8] Sanal Kumar, V. R., Raghunandan, B.N., Kim, H.D., Sameen, A., Setoguchi, T., and Raghunathan,S., Studies on Internal Flow Choking in Dual-thrust Motors, AIAA Journal of Spacecraft and Rockets, Vol. 43, No. 5, pp.1139-1143, Sep-Oct (2006).

DOI: https://doi.org/10.2514/1.20748

[9] Sanal Kumar, V. R., Kim, H.D., Raghunandan, B. N., Sameen.A., Setoguchi, T., and Raghunathan, S, Fluid-throat induced shock waves during the ignition transient of solid rockets, AIAA Journal of Spacecraft and Rockets, Vol. 43, No. 1, Jan-Feb (2006).

DOI: https://doi.org/10.2514/1.16985

[10] Raghunandan, B. N., Madhavan, N. S., Sanjeev, C and Sanal Kumar, V. R., Studies on flame spread with sudden expansions of ports of solid propellant rockets under elevated pressure, Defence Science Journal, Vol. 46, No. 5, Nov. 1996, pp.417-423 (1996).

DOI: https://doi.org/10.14429/dsj.46.4313

[11] Sanal Kumar, V. R., Kim, H.D., Raghunandan, B. N., Setoguchi, T., and S. Raghunathan, Internal flow simulation of high-performance solid rockets using a k-w turbulence model, International Journal of Thermal and Fluid Sciences, Vol. 14, No. 2, June (2005).

DOI: https://doi.org/10.1007/s11630-005-0020-4

[12] Ikawa, Hideo, Laspesa, Fred S. Ignition/Duct Overpressure Induced by Space Shuttle Solid Rocket Motor Ignition, Journal of Spacecraft and Rockets, Vol. 22, p.481, (1985).

DOI: https://doi.org/10.2514/3.25776

[13] Salita, M., Modern SRM Ignition Transient Modeling (Part 1): Introduction and Physical Models, AIAA Paper, No. AIAA 2001-3443, (2001).

DOI: https://doi.org/10.2514/6.2001-3443

[14] Blomshield, F.S. and Mathes, H.B., Pressure oscillations in post-Challenger Space Shuttle redesigned solid rocket motors, Journal of Propulsion Power, Vol. 9, pp.217-221, (1993).

DOI: https://doi.org/10.2514/3.23612

[15] Alestra, S., Terrasse, I., and Troclet, B., Identification of acoustic sources at launch vehicle lift-off using an inverse method, AIAA Aerospace Sciences Meeting and Exhibit, 40th, Reno, NV, Jan. 14-17, AIAA-2002-926 (2002).

DOI: https://doi.org/10.2514/6.2002-926

[16] Eagar, M.A. and Luke, G.D. and Stockham, L. W, Ignition transient modelling for the Space Shuttle Advanced Solid Rocket Motor, AIAA/SAE/ASME/ASEE, Joint Propulsion Conference and Exhibit, 29th, Monterey, CA, June 28-30, (1993).

DOI: https://doi.org/10.2514/6.1993-2062
