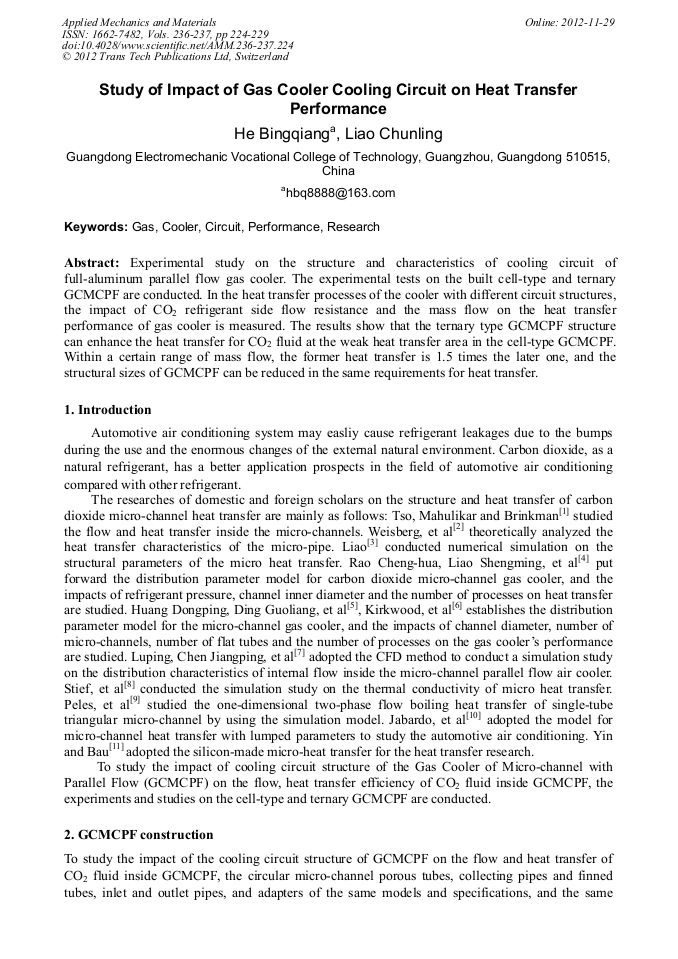

Study of Impact of Gas Cooler Cooling Circuit on Heat Transfer Performance

Abstract:

Experimental study on the structure and characteristics of cooling circuit of full-aluminum parallel flow gas cooler. The experimental tests on the built cell-type and ternary GCMCPF are conducted. In the heat transfer processes of the cooler with different circuit structures, the impact of CO2 refrigerant side flow resistance and the mass flow on the heat transfer performance of gas cooler is measured. The results show that the ternary type GCMCPF structure can enhance the heat transfer for CO2 fluid at the weak heat transfer area in the cell-type GCMCPF. Within a certain range of mass flow, the former heat transfer is 1.5 times the later one, and the structural sizes of GCMCPF can be reduced in the same requirements for heat transfer.

• Periodical: Applied Mechanics and Materials (Volumes 236-237)
• Pages: 224-229
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.236-237.224
• Online since: November 2012
• Authors: Bing Qiang He, Chun Ling Liao
• Keywords: Circuit, Cooler, Gas, Performance, Research

References

[1] C P Tso, S P Mahulikar. Experimental verification of the role Brinkman number in micro channels using local parameters. International Journal of Heat and Mass Transfer. 2000, 43: 1838-1849.

DOI: 10.1016/s0017-9310(99)00241-0

[2] Weisberg A, Bau H H, et al. Analysis of Micro channels for Integrated Cooling. International Journal of Heat Mass Transfer. 1992, 35: 2465-2474.

DOI: 10.1016/0017-9310(92)90089-b

[3] Liao X S, Liu Y, Ning YQ, et al. The optimal design of structure parameter for micro channel heat sink [C]. Proceedings of SPIE The International Society for Optical Engineering, 2002, 4914: 181-186.

[4] Rao Zhenghua, Liao Shengming. Numerical simulation and performance optimization of carbon dioxide micro-channel gas cooler[J]. Journal of Chemical Industry and Engineering. Vol. 56, Issue 9, Sept. 2005, Vol. 156, No. 9: 1721-1726.

[5] Huang Dongping, Liang Zhenqian, Ding Guoliang, et al. Modeling And Performance Analysis Of Carbon Dioxide Microchannel Gas Cooler[J]. Journal of Chemical Industry and Engineering, 2002, 53(8): 832-836.

[6] A.C. Kirkwood, C.W. Bullard. Modeling Design and Testing of a Micro-channel Split-System Air Conditioner, ACRC TR-149(March 1999).

[7] Luping, Chen Jiangping. Computational fluid dynamics simulation of flow distribution in a gas cooler with micro-channel parallel flow[J]. Journal of Applied Sciences, Vol. 25, Issue 3, May (2007).

[8] Stief T, Langer O U, Schubert K. Numerical investigations of optimal heat conductivity in micro heat transferrs [J]. Chemical Engineering and Technology, 1999, 22(4): 297-303.

DOI: 10.1002/(sici)1521-4125(199904)22:4<297::aid-ceat297>3.0.co;2-y

[9] Y.P. Peles and S. Haber. A steady state one dimensional model for boiling two phase flow in triangular micro-channel International Journal of Multiphase Flow. Vol. 26, Issue 7, 1 July 2000: 1095-1115.

DOI: 10.1016/s0301-9322(99)00084-1

[10] J.M. Saiz Jabardo, W. Gonzales Mamani, M.R. Ianella. Modeling and experimental evaluation of an automotive air conditioning system with a variable capacity compressor, International Journal of Refrigeration 25(2002): 1157-1172.

DOI: 10.1016/s0140-7007(02)00002-6

[11] Jian Min Yin, Clark Y. Bullard, Predrag S. Hrnjak. R-744 Gas cooler model development and validation, international journal of refrigeration 24(2001): 692-701.

DOI: 10.1016/s0140-7007(00)00082-7

[12] He Bingqiang, Liang Bingqiang, Wang Xihui, et al. Electrical box bottom box forming analysis and die design[J]. Mechanical design and manufacturing, April 2009 (4) : 241-243.

[13] He Bingqiang, Liang Rongguang, Wu Jianghong, et al. Research and manufacture of carbon dioxide test device for automotive air conditioning system. Machine tools and hydraulics. 2010, Vol. 38, Issue 24: 76-79.
