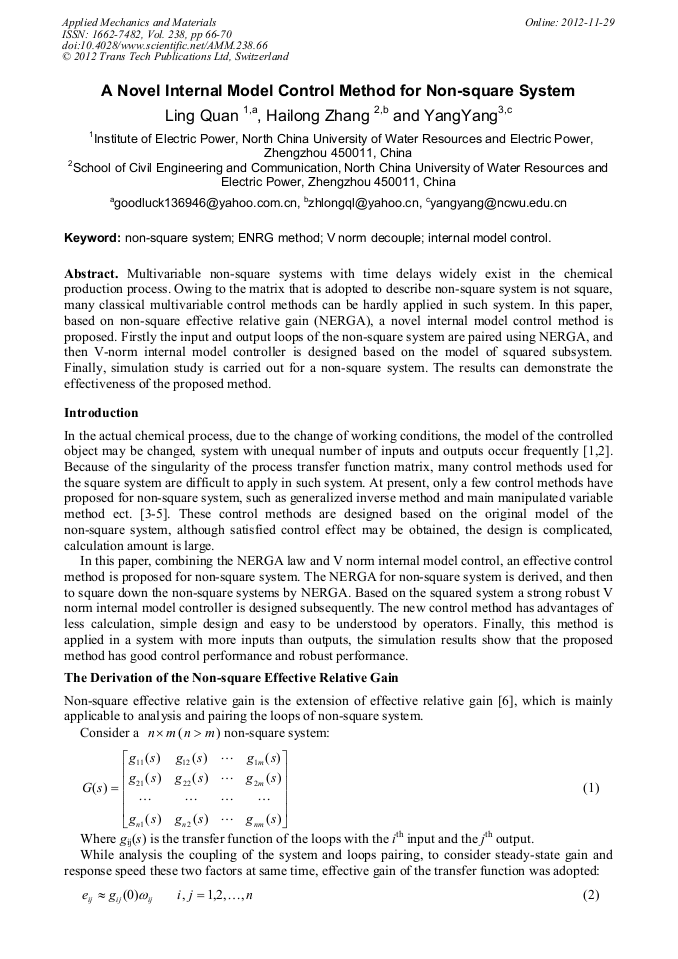

A Novel Internal Model Control Method for Non-Square System

Abstract:

Multivariable non-square systems with time delays widely exist in the chemical production process. Owing to the matrix that is adopted to describe non-square system is not square, many classical multivariable control methods can be hardly applied in such system. In this paper, based on non-square effective relative gain (NERGA), a novel internal model control method is proposed. Firstly the input and output loops of the non-square system are paired using NERGA, and then V-norm internal model controller is designed based on the model of squared subsystem. Finally, smulation study is carried out for a non-square system. The results can demonstrate the effectiveness of the proposed method.

• Periodical: Applied Mechanics and Materials (Volume 238)
• Pages: 66-70
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.238.66
• Online since: November 2012
• Authors: Ling Quan, Hai Long Zhang, Yang Yang
• Keywords: ENRG Method, Internal Model Control, Non-Square System, V Norm Decouple

References

[1] K. L. N. Sarma, M. Chidambaram, Centralized PI/PID controller-for nonsquare systems with RHP zeros, Journal of the Indian Institute of Science, 22 (2005) 201.

[2] A.Seshagir, M. Chidambaram, Smith delay compensator for multivariable non-square system with multiple time delays, Computer and Chemical Engineering, 30 (2006)1243-1246.

DOI: 10.1016/j.compchemeng.2006.02.017

[3] J. Pian, Application in Generalized Inverse of Singular Value Decomposition, Journal of Fuyang Teachers College, 22 (2005)16-20.

[4] E. J. Loh, M. S. Chiu, Robust decentralized control of nonsquare systems, Chemical Engineering Communications, 22(1997)157-160.

[5] S. Palankia, Juan C. Cockburnb, Soumitri N. Kolavennuc, Robust state feedback synthesis for control of non-square multivariable nonlinear systems, Journal of Process Control, 13 (2003) 623-626.

DOI: 10.1016/s0959-1524(02)00098-7

[6] X. Qiang, J. Wen, Effective transfer function method for decentralized control system design of multi-input multi-output processes, Journal of Process Control. 16 (2006) 773.

DOI: 10.1016/j.jprocont.2006.04.001

[7] J. Chang, C. Yu, The relative gain for non-square multivariable systems, Chemical Engineering Science, 45 (1990) 1309-1312.

DOI: 10.1016/0009-2509(90)87123-a

[8] D.E. Reeves, Y. Arkun, Interaction measures for nonsquare decentralized control structure, AIChE J., 35 (1989) 603-606.

DOI: 10.1002/aic.690350410

[9] Q. Fei, The simulation research on multivariable internal model control algorithm, Beijing University of Chemical Technology, Beijing, 2008.

[10] Q. Jing, Z. Liu, A. Song, Decoupling internal model control for non-square process with time delays, The proceedings of 2010 International Conference on Measuring Technology and Mechatronics Automation, 2010: 898-901.

DOI: 10.1109/icmtma.2010.133
