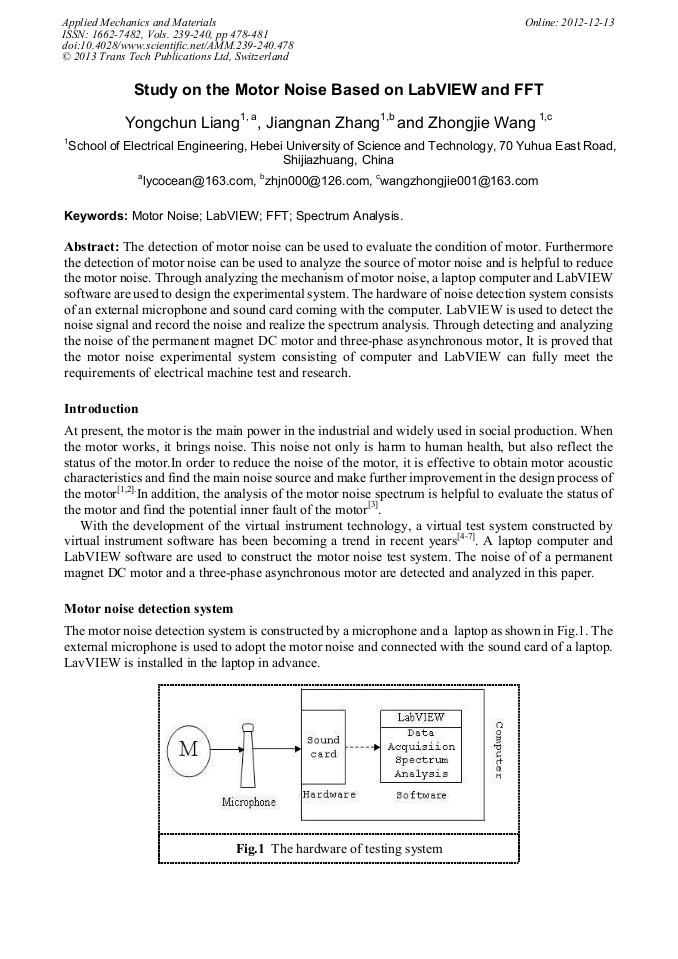

Study on the Motor Noise Based on LabVIEW and FFT

Abstract:

The detection of motor noise can be used to evaluate the condition of motor. Furthermore the detection of motor noise can be used to analyze the source of motor noise and is helpful to reduce the motor noise. Through analyzing the mechanism of motor noise, a laptop computer and LabVIEW software are used to design the experimental system. The hardware of noise detection system consists of an external microphone and sound card coming with the computer. LabVIEW is used to detect the noise signal and record the noise and realize the spectrum analysis. Through detecting and analyzing the noise of the permanent magnet DC motor and three-phase asynchronous motor, It is proved that the motor noise experimental system consisting of computer and LabVIEW can fully meet the requirements of electrical machine test and research.

• Periodical: Applied Mechanics and Materials (Volumes 239-240)
• Pages: 478-481
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.239-240.478
• Online since: December 2012
• Authors: Yong Chun Liang, Jing Nan Zhang, Zhong Jie Wang
• Keywords: FFT, LabVIEW, Motor Noise, Spectrum Analysis

References

[1] Hongyan Li. Study on the Noise Signal and On-line Detection System of Electric Motor Based on DSP. Nanchang University, Nanchang, 2008 (In Chinese).

[2] Fabin Cheng, Baoping Tang, Ling Zhao. Application of Sound Intensity Technique to Measure the Noise of Electro Motor. Journal of Chongqing University, 11(2004 ) 11-14 ( In Chinese).

[3] ZaiZhou Wang, Chunxiang Zhang, Feng Lv. Research on Electric Vehicle Motor Fault Diagnosis system Based on microphone array. Small & Special Electrical Machine, 8(2010)25-28( In Chinese).

[4] Hu Du. Development of a set of On-line System for Monitoring Audio Signals Produced from Machine Based on Virtual Instrument. Nanjing University of Aeronautics & Astronautics, Nanjing, 2007( In Chinese).

[5] Dongwei Tang, Jun An, Qizhi Liang. Test and Analysis System for Noise of Machine Tool based on LavVIEW and Sound Card. Research and Exploration in Laboratory, 9(2008)61-64( In Chinese).

[6] Xiaoling Chen, Xueming Shi, Ying Liu. Performance Testing for Virtual Instrument Based on Sound Card and LabVIEW. Research and Exploration in Laboratory, 1(2010)25-27( In Chinese).

[7] Li Wang, Peng Yang. Design and Realization of Virtual Oscillograph Based on LabVIEW. Research and Exploration in Laboratory, 1(2010)62-64( In Chinese).

[8] Guoping Hou, Kun Wang. The LabVIEW7. 1 programming and virtual instrument design. Qinghua University Press, Beijing, 2005( In Chinese).
