HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 24-25Size of the Fracture Process Zone in High-Strength...

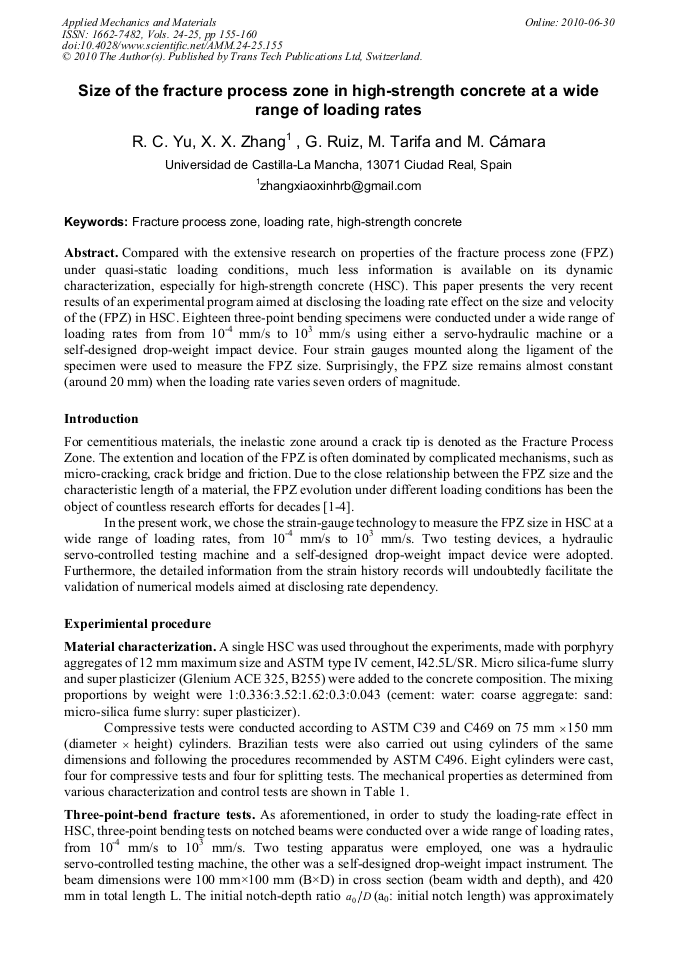

Size of the Fracture Process Zone in High-Strength Concrete at a Wide Range of Loading Rates

Abstract:

Compared with the extensive research on properties of the fracture process zone (FPZ) under quasi-static loading conditions, much less information is available on its dynamic characterization, especially for high-strength concrete (HSC). This paper presents the very recent results of an experimental program aimed at disclosing the loading rate effect on the size and velocity of the (FPZ) in HSC. Eighteen three-point bending specimens were conducted under a wide range of loading rates from from 10-4 mm/s to 103 mm/s using either a servo-hydraulic machine or a self-designed drop-weight impact device. Four strain gauges mounted along the ligament of the specimen were used to measure the FPZ size. Surprisingly, the FPZ size remains almost constant (around 20 mm) when the loading rate varies seven orders of magnitude.

By email View Pdf

You have full access to the following eBook

Read eBook

Info:

Periodical:

Applied Mechanics and Materials (Volumes 24-25)

Pages:

155-160

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.24-25.155

Citation:

Cite this paper

Online since:

June 2010

Authors:

R.C. Yu, X.X. Zhang, Gonzalo Ruiz, M. Tarifa, M. Cámara

Keywords:

Fracture Process Zone FPZ, High-Strength Concrete (HSC), Loading Rate

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

References

[1] Cedolin, L, Dei Poli, S., and Iori, I. Cement and Concrete Research, 13, pp.557-567, (1983).

DOI: 10.1016/0008-8846(83)90015-7

Google Scholar

[2] Castro-Montero, A., Shah, S.P., and Miller, R.A., Journal of Engineering Mechanics, 116, pp.2463-2484 (1990).

Google Scholar

[3] Swartz, S.E., and Go, C.G., Experimental Mechanics, 24, pp.129-134 (1984).

Google Scholar

[4] Hu, X., and Wittmann, F.H., Journal of Materials in Civil Engineering, 2, pp.15-23 (1990).

Google Scholar

[5] Zhang, X.X., Ruiz, G., and Yu, R.C.: submitted to Strain, doi: 10. 1111/j. 1475-1305. 2008. 00574. x. (2008).

Google Scholar

[6] Wittmann, F.H., Sadhana - Academy Proceedings in Engineering Sciences, 27, pp.413-423 (2002).

Google Scholar

[7] Mindess, S., Canada Journal of Physics, 73, pp.310-314 (1995).

Google Scholar

[8] Hillerborg, A., Modéer, M., and Petersson, P.E., Cement and Concrete Research, 6, pp.773-781, (1976).

Google Scholar

[9] Zhang, X.X., Ruiz, G., and Yu, R. C., Journal of Materials in Civil Engineering, 20, pp.544-551 (2008).

Google Scholar

[10] Yon, J.H., Hawkins, N.M., and Kobayashi, A.S., ACI Materials Journal, 89, pp.146-153 (1992).

Google Scholar

[11] Du, J., Yon, J.H., Hawkins, N.M., Arakawa, K., and Kobayashi, A.S., ACI Materials Journal, 89, pp.252-258 (1992).

Google Scholar
