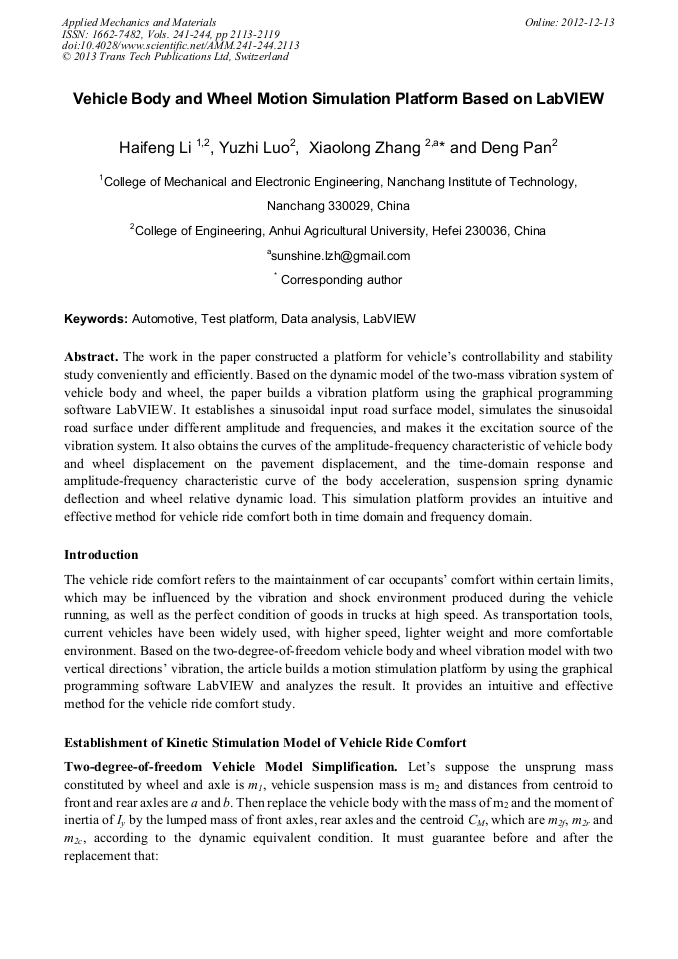

Vehicle Body and Wheel Motion Simulation Platform Based on LabVIEW

Abstract:

The work in the paper constructed a platform for vehicle’s controllability and stability study conveniently and efficiently. Based on the dynamic model of the two-mass vibration system of vehicle body and wheel, the paper builds a vibration platform using the graphical programming software LabVIEW. It establishes a sinusoidal input road surface model, simulates the sinusoidal road surface under different amplitude and frequencies, and makes it the excitation source of the vibration system. It also obtains the curves of the amplitude-frequency characteristic of vehicle body and wheel displacement on the pavement displacement, and the time-domain response and amplitude-frequency characteristic curve of the body acceleration, suspension spring dynamic deflection and wheel relative dynamic load. This simulation platform provides an intuitive and effective method for vehicle ride comfort both in time domain and frequency domain.
