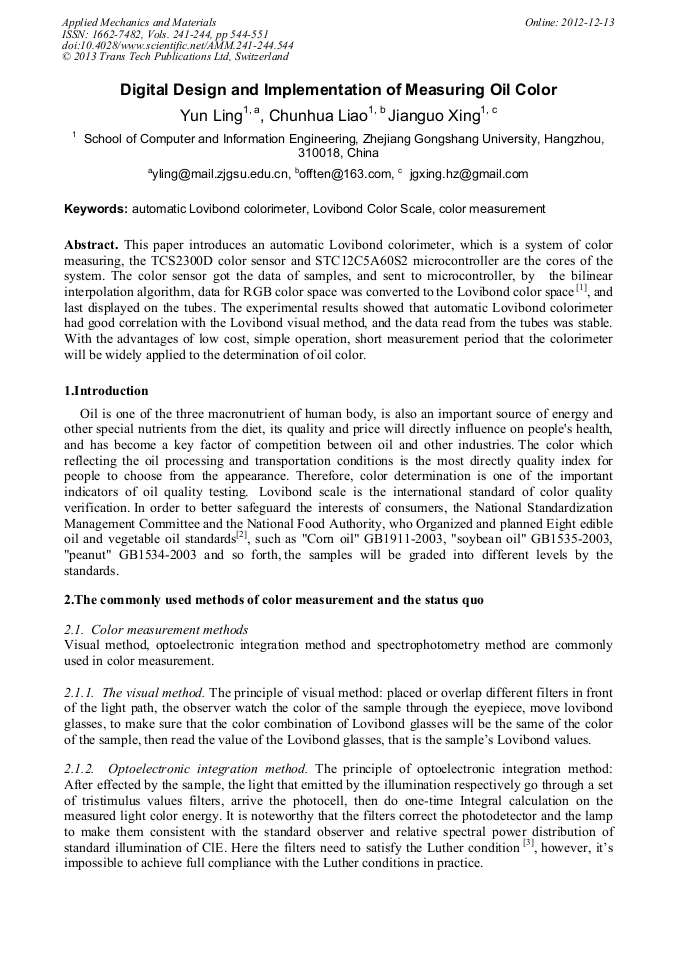

Digital Design and Implementation of Measuring Oil Color

Abstract:

This paper introduces an automatic Lovibond colorimeter, which is a system of color measuring, the TCS2300D color sensor and STC12C5A60S2 microcontroller are the cores of the system. The color sensor got the data of samples, and sent to microcontroller, by the bilinear interpolation algorithm, data for RGB color space was converted to the Lovibond color space [1], and last displayed on the tubes. The experimental results showed that automatic Lovibond colorimeter had good correlation with the Lovibond visual method, and the data read from the tubes was stable. With the advantages of low cost, simple operation, short measurement period that the colorimeter will be widely applied to the determination of oil color.

• Periodical: Applied Mechanics and Materials (Volumes 241-244)
• Pages: 544-551
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.241-244.544
• Online since: December 2012
• Authors: Yun Ling, Chun Hua Liao, Jian Guo Xing
• Keywords: Automatic Lovibond Colorimeter, Color Measurement, Lovibond Color Scale

References

[1] Danny Pascale. A review of RGB color spaces. The BabelColor Company.

[2] New edible oil standards in October [J]. Fujian Technical Supervision, 2004, (09):22-24.

[3] Tinghai Wang. The development of automatic digital oil clorimeter(in Chinese) [D] Tianjin: Nankai University Graduate School, 2006.

[4] Fengxia Sun, Dishun Zhao, Zhanming Zhou. Determination of oil color by image analysis [J], JAOCS,2001,78(7): 749 - 752.

DOI: 10.1007/s11746-001-0337-5

[5] Charles Poynton. Sensing color with the TAOS TCS23.TAOS company. http://www.taosinc.com/.

[6] CIE (1931) chromaticity diagram of white interval. Hang Ke Optoelectronics. http://www.hkled.com/.

[7] Wei Feng. Color temperature and white balance adjustment （in Chinese）[J] modern corporate culture, 2009, 35 (147) :163-165.

[8] Deane B. Judd, G.J. Chamberlin, Geraldine W. Haupt. The ideal lovibond color system [J],Journal of research of the national bureau of standards, 1962, 66 (2) :121-135.

DOI: 10.6028/jres.066c.013

[9] Yijun Fang. The relationship of Lovibond color units (color system) and the CIE standard colorimetric system (in Chinese)[A].Chinese Society for Measurement off radiation measurement Symposium [C], Hangzhou: Chinese Society for Measurement,2006:103 -108.

[10] Zhendong Zhao, Dongmei Li, Xianzhang Liu. "Gum resin" and "resin test method" changes and characteristics of the revision of national standards (in Chinese)[J]. Forest Chemical Communications, 38 (6) :10-15.
