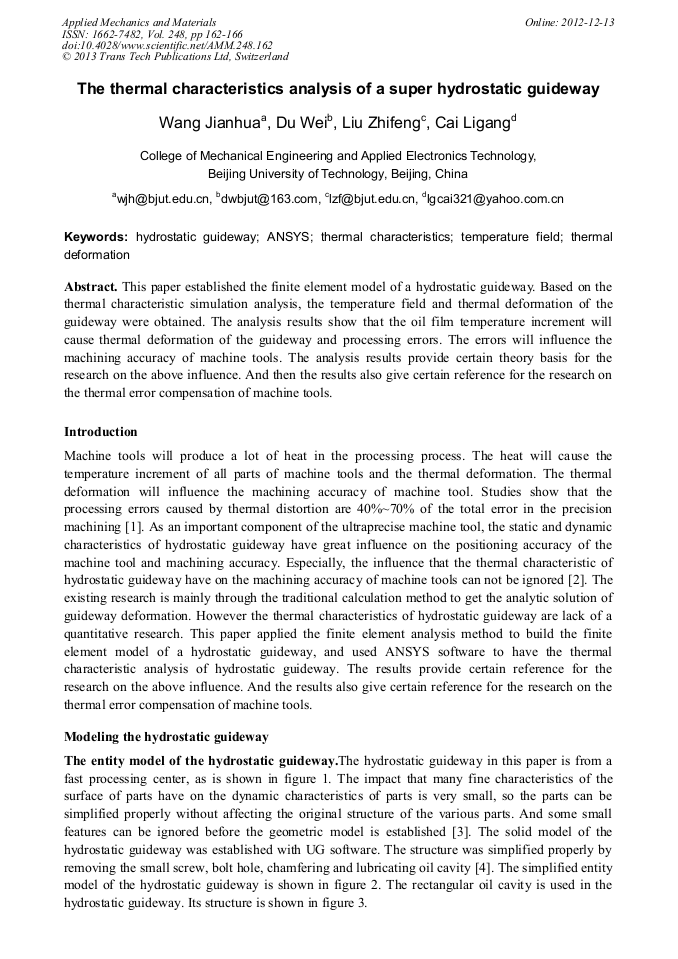

The Thermal Characteristics Analysis of a Super Hydrostatic Guideway

Abstract:

This paper established the finite element model of a hydrostatic guideway. Based on the thermal characteristic simulation analysis, the temperature field and thermal deformation of the guideway were obtained. The analysis results show that the oil film temperature increment will cause thermal deformation of the guideway and processing errors. The errors will influence the machining accuracy of machine tools. The analysis results provide certain theory basis for the research on the above influence. And then the results also give certain reference for the research on the thermal error compensation of machine tools.

• Periodical: Applied Mechanics and Materials (Volume 248)
• Pages: 162-166
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.248.162
• Online since: December 2012
• Authors: Jian Hua Wang, Wei Du, Zhifeng Liu, Li Gang Cai
• Keywords: ANSYS, Hydrostatic Guideway, Temperature Field, Thermal Characteristic, Thermal Deformation

References

[1] Bryan J . International status of thermal error research[J]. Keynote Paper Annals of the CI RP, 1990, 39(2): 645-656.

[2] Xu Wenqin, Sun Yingda. Research on Schemes of Oil Film Thickness for Lathe Hedrostatic Slide[J]. Manufacturing Technology & Machine Tool, 2009, 56-58.

[3] Guo Xuexiang, Hu Youmin, Xia Junyong, Wu Bo et al. Study on Thermal Deformation of Machine Tools' Slide Guide Based on FEA[J]. Modular Machine Tool and Automatic Processing Technology, 2007 (3): 8-11.

[4] Yang Wentong, Cheng Wei, Liu Zhifeng, Cai Ligang, Ma Shiming. The thermal characteristics analysis of mill head of CNC machine in ANSYS[J]. Mechanical Design and Manufacturing, 2008(12): 165-166.

[5] Li Shengyi, Dai Yifan. The design theory and method of the ultra precision machine tool[M]. Changsha: National University of Defense Technology, (2009).

[6] Jiang Yun, Hou Guoan, Sun Tao. Thermal Finite Element Analysis of Hydrostatic Guide[J]. Aviation Precision Manufacturing Technology, 2011, 47(5): 23-25.

[7] Li Wenfeng, Du Yanting, Jia Guanghui. Design of Hydrostatic Slide for Precision CNC Lathe[J]. Machine Tool & Hydraulics, 2011, 39(23): 87-90.

[8] Yang Shiming, Tao Wenquan. Heat Transfer Theory (Fourth Edition). Beijing: Higher Education Press, (2006).

[9] Yang Dingjun. Study of machine tool thermal error based on finite element[J]. Mechanical Manufacturing Technology, 2011, 38(8): 47-50.

[10] Luo Shuyan, Wang Shilong, Zhou Jie et al. Influence of Number of Oil-pad on Performance of Constant Flow Delivery Oil Hydrostatic Guideway of Worktable[J]. Machine Tool & Hydraulics, 2010, 38(17): 1-4.
