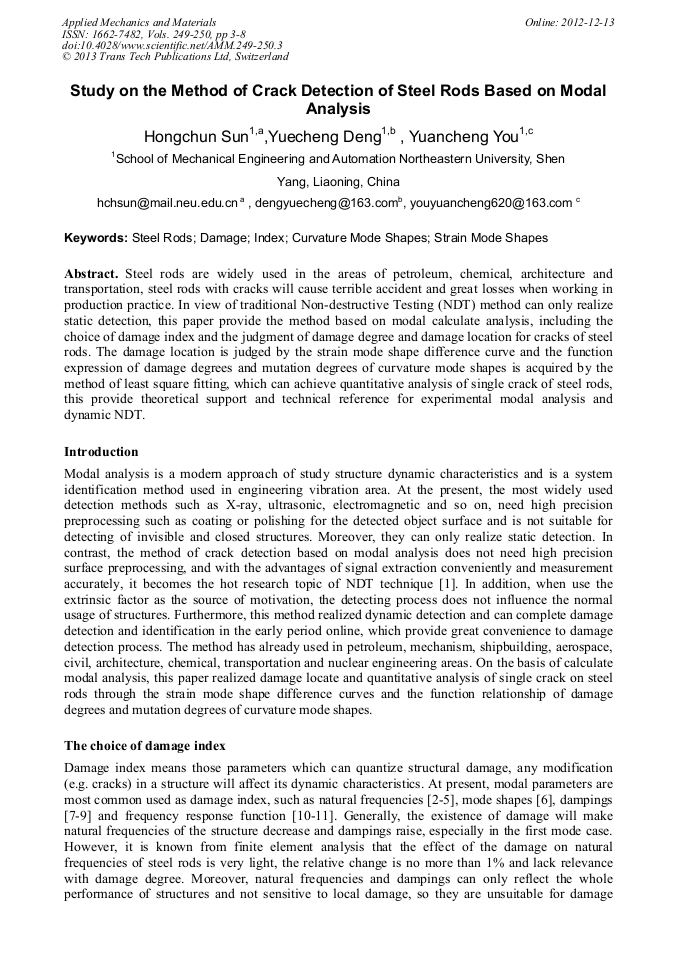

Study on the Method of Crack Detection of Steel Rods Based on Modal Analysis

Abstract:

Steel rods are widely used in the areas of petroleum, chemical, architecture and transportation, steel rods with cracks will cause terrible accident and great losses when working in production practice. In view of traditional Non-destructive Testing (NDT) method can only realize static detection, this paper provide the method based on modal calculate analysis, including the choice of damage index and the judgment of damage degree and damage location for cracks of steel rods. The damage location is judged by the strain mode shape difference curve and the function expression of damage degrees and mutation degrees of curvature mode shapes is acquired by the method of least square fitting, which can achieve quantitative analysis of single crack of steel rods, this provide theoretical support and technical reference for experimental modal analysis and dynamic NDT.

• Periodical: Applied Mechanics and Materials (Volumes 249-250)
• Pages: 3-8
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.249-250.3
• Online since: December 2012
• Authors: Hong Chun Sun, Yue Cheng Deng, Yuan Cheng You
• Keywords: Curvature Mode Shapes, Damage, Index, Steel Rods, Strain Mode Shapes

References

[1] Z.B. Zhang: Modal Analysis and Study on Marine Diesel Crankshaft Crack (Jimei University, FuJian 2008).

[2] P. Cawley and R.D. Adams: The location of defects in structures from measurements of natural frequencies. Submitted to Journal of Strain Analysis for Engineering Design Vol. 14 (1979) 49-57.

DOI: 10.1243/03093247v142049

[3] W.M. Ostachowicz and M. Krawczuk: Analysis of the effect of cracks on the natural frequencies of a cantilever beam. Submitted to Journal of Sound and Vibration Vol. 150 (1991) 191-201.

DOI: 10.1016/0022-460x(91)90615-q

[4] Y. Narkis and E. Elinalah: Crack identification in a cantilever beam under uncertain end conditions. Submitted to International Journal of Mechanical Science Vol. 38 (1996) 499-507.

DOI: 10.1016/0020-7403(95)00071-2

[5] Y. Narkis: Identification of crack location in vibrating simply supported beams. Submitted to Journal of Sound and Vibration Vol. 172 (1994)549-558.

DOI: 10.1006/jsvi.1994.1195

[6] M. Abdo and M. Hori: A numerical study of structural damage detection using changes in the rotation of mode shapes. Submitted to Journal of Sound and Vibration Vol. 251 (2002) 227-239.

DOI: 10.1006/jsvi.2001.3989

[7] H.J. Li and H.Z. Yang: Research progress on modal parameter identification and damage diagnosis for offshore platform structures. Submitted to Journal of Engineering Mechanics Special report of the thirteenth National academic conference on structural engineering (2004).

[8] C.R. Farrar and D.A. Jauregui: Comparative study of damage identification algorithms applied to a bridge: I. Experiment. Submitted to Journal of Smart Materials and structures Vol. 7 (1998).

DOI: 10.1088/0964-1726/7/5/013

[9] X.R. Zhuang and H.R. Chen: Delamination detection by using frequency and damping analysis in conjunction with neural networks. Submitted to Journal of Acta Materiae Compositae Sinica Vol. 22 (2005) 150-155.

[10] Q. Li: Test Study on Structural Damage Detection Using Frequency Response Functions. Submitted to Journal of Engineering & Test Vol. 49 (2009) 23-24.

[11] H.Y. Hwanga and C. Kimb: Damage detection in structures using a few frequency response measurements. Submitted to Journal of Sound and Vibration Vol. 270 (2004) 1-14.
