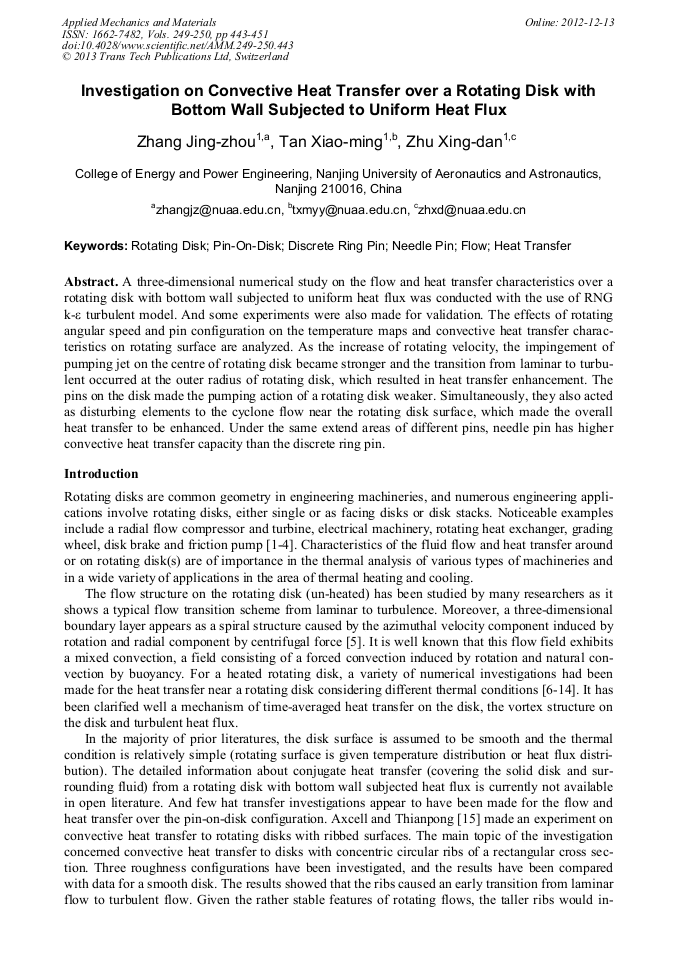

Investigation on Convective Heat Transfer over a Rotating Disk with Bottom Wall Subjected to Uniform Heat Flux

Abstract:

A three-dimensional numerical study on the flow and heat transfer characteristics over a rotating disk with bottom wall subjected to uniform heat flux was conducted with the use of RNG k- turbulent model. And some experiments were also made for validation. The effects of rotating angular speed and pin configuration on the temperature maps and convective heat transfer characte-ristics on rotating surface are analyzed. As the increase of rotating velocity, the impingement of pumping jet on the centre of rotating disk became stronger and the transition from laminar to turbu-lent occurred at the outer radius of rotating disk, which resulted in heat transfer enhancement. The pins on the disk made the pumping action of a rotating disk weaker. Simultaneously, they also acted as disturbing elements to the cyclone flow near the rotating disk surface, which made the overall heat transfer to be enhanced. Under the same extend areas of different pins, needle pin has higher convective heat transfer capacity than the discrete ring pin.

• Periodical: Applied Mechanics and Materials (Volumes 249-250)
• Pages: 443-451
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.249-250.443
• Online since: December 2012
• Authors: Jing Zhou Zhang, Xiao Ming Tan, Xing Dan Zhu
• Keywords: Discrete Ring Pin, Flow, Heat Transfer, Needle Pin, Pin-on-Disk, Rotating Disk

References

[1] F. Kreith, J. H. Taylor, J. P. Chong, Heat and mass transfer from a rotating disk, J. Heat Transfer, 43 (1959) 95-105.

DOI: 10.1115/1.4008145

[2] Z. El-Oun, J. M. Owen, Pre-swirl blade-cooling effectiveness in an adiabatic rotor-stator system, ASME J. Turbomach. 111 (1989) 522-529.

DOI: 10.1115/1.3262303

[3] T. Jin, D. J. Stephenson, Analysis of grinding chip temperature and energy partitioning in high-efficiency deep grinding, J. Engineering Manufacture, 220 (2006) 615-625.

DOI: 10.1243/09544054jem389

[4] A. L. Browne, L. E. Wickliffe, Parametric study of convective heat transfer coefficients at the tire surface, Tire Sci. Tech. 8 (1980) 37- 67.

DOI: 10.2346/1.2151020

[5] H. S. Littell, J. K. Eaton, Turbulence characteristics in the boundary layer on a rotating disk, J. Fluid Mech. 266 (1994) 175-207.

DOI: 10.1017/s0022112094000972

[6] D. E. Metzger, Heat transfer and pumping on a rotating disk with freely induced and forced cooling, ASME J Engineering Power, 92 (1970) 342-348.

DOI: 10.1115/1.3445359

[7] A. Northorp, J. M. Owen, Heat transfer measurements in rotating disc systems, part 1: the free disc, Int. J. Heat Fluid Flow, 9 (1998) 19-26.

DOI: 10.1016/0142-727x(88)90026-4

[8] R. Pilbrow, H. Karabay, M. Wilson, J. M. Owen, Heat transfer in a cover-plate preswirl rotating disk system, ASME J. Turbomach. 121 (1999) 249-256.

DOI: 10.1115/1.2841308

[9] S. E. Tadros, F. F. Erian, Generalized laminar heat transfer from the surface of a rotating disk, Int. J. Heat Mass Transfer, 25 (1982) 1615-1660.

DOI: 10.1016/0017-9310(82)90144-2

[10] G. H. Evans, R. Greif, Forced flow near a heated rotaing disk: a similarity solution, Fluid Mech., 22 (1998) 804-807.

[11] G. L. Palec, Numerical study of convective heat transfer over a rotating rough disk with uniform wall temperature, Int. Commun. Heat Mass Transfer, 16 (1989) 107-113.

DOI: 10.1016/0735-1933(89)90046-8

[12] C. Y. Soong, Thermal buoyancy effects in rotating non-isothermal flows, Int. J. Rotating Machinery, 7 (2001) 435-446.

DOI: 10.1155/s1023621x01000380

[13] F. Ogino, T. Inamuro, K. Mizuta, A. Kino, R. Tomita, Flow characteristics on a heated rotating disc under natural convection dominant conditions, Int. J. Heat Mass Transfer, 45 (2002) 585-595.

DOI: 10.1016/s0017-9310(01)00171-5

[14] H. A. Attia, Unsteady flow of a non-Newtonian fluid above a rotating disk with heat transfer, Int. J. Heat Mass Transfer, 46 (2003) 2695-2700.

DOI: 10.1016/s0017-9310(03)00029-2

[15] B. P. Axcell, C. Thianpong, Convective heat transfer to rotating disks with ribbed surfaces, Experiment. Heat Transfer, 14 (2001) 45-58.

DOI: 10.1080/089161501461639
