Sintering Characteristics of Micro-Zn Paste Containing Sn-3.0Ag-0.5Cu Nanoparticles

Sang Soo Chee; Jong Hyun Lee

doi:10.4028/www.scientific.net/AMM.249-250.939

Paper Titles

Leaching of Heavy Metals from Municipal Solid Waste Incineration (MSWI) Fly Ash Using Sulfuric Acid
p.922

3-D Elastic-Plastic Constitutive Relationship of Mixed Hardening
p.927

Surface Plasmon Interference with Two-Slit Metal Structure
p.931

The Investigation of Terahertz Metamaterials by Normalized Power Transmission
p.935

Sintering Characteristics of Micro-Zn Paste Containing Sn-3.0Ag-0.5Cu Nanoparticles
p.939

Fabrication of Spherical Bi Particles during Polyol Synthesis Using a Bismuth(III) Carbonate Precursor
p.945

Investigation on Impact Performance of Light-Weight Composite Honeycomb Sandwich Panels
p.949

Finite Element Analysis and Shape Optimization of Aluminum Alloy Automobile Energy-Absorbing Components
p.954

Influence of Nanostructured Fibers on Properties of Building Composites
p.958

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 249-250Sintering Characteristics of Micro-Zn Paste...

Sintering Characteristics of Micro-Zn Paste Containing Sn-3.0Ag-0.5Cu Nanoparticles

Abstract:

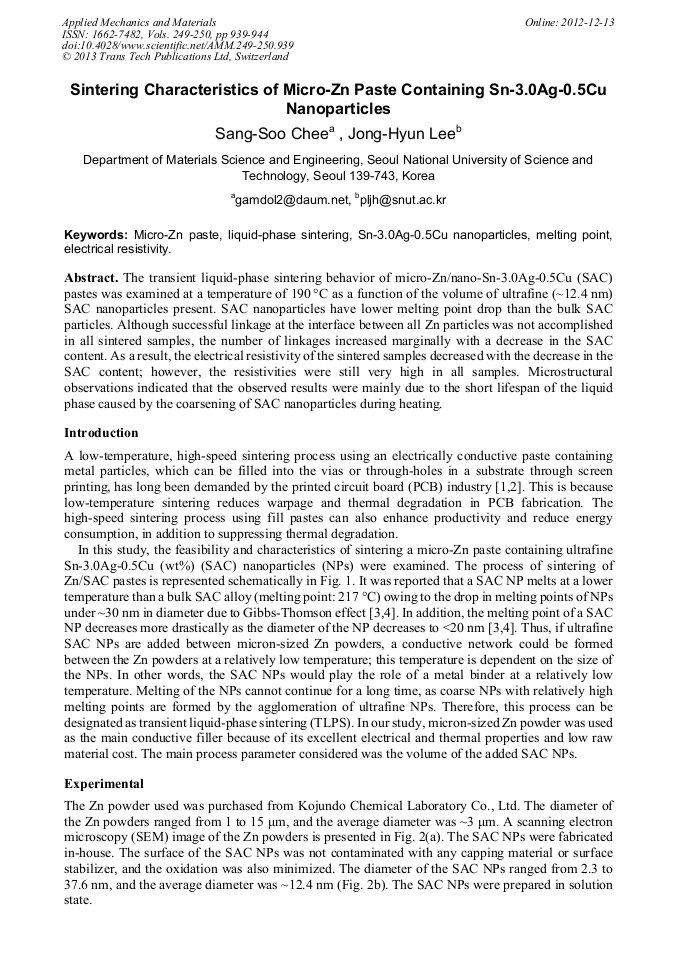

The transient liquid-phase sintering behavior of micro-Zn/nano-Sn-3.0Ag-0.5Cu (SAC) pastes was examined at a temperature of 190 °C as a function of the volume of ultrafine (~12.4 nm) SAC nanoparticles present. SAC nanoparticles have lower melting point drop than the bulk SAC particles. Although successful linkage at the interface between all Zn particles was not accomplished in all sintered samples, the number of linkages increased marginally with a decrease in the SAC content. As a result, the electrical resistivity of the sintered samples decreased with the decrease in the SAC content; however, the resistivities were still very high in all samples. Microstructural observations indicated that the observed results were mainly due to the short lifespan of the liquid phase caused by the coarsening of SAC nanoparticles during heating.

You might also be interested in these eBooks

Applied Mechanics and Mechanical Engineering III

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 249-250)

Pages:

939-944

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.249-250.939

Citation:

Cite this paper

Online since:

December 2012

Authors:

Sang Soo Chee, Jong Hyun Lee

Keywords:

Electrical Resistivity, Liquid-Phase Sintering, Melting Point, Micro-Zn Paste, Sn-3.0Ag-0.5Cu Nanoparticle

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S.K. Kang, S.L. Buchwalter, N.C. LaBianca, J. Gelorme, S. Purushothaman, K. Papathomas, M. Poloks, Development of conductive adhesive materials for via fill applications, IEEE Trans. Compo. Packag. Technol. 24(3) (2001) 431-435.

DOI: 10.1109/6144.946490

Google Scholar

[2] Y. -S Eom, K. -S. Choi, S. -H Moon, J. -H. Park, J. -H. Lee, J. -T. Moon, Characterization of a hybrid Cu paste as an isotropic conductive adhesive, ETRI J. 33(6) (2011) 864-870.

DOI: 10.4218/etrij.11.0110.0520

Google Scholar

[3] C.D. Zou, Y.L. Gao, B. Yang, X.Z. Xia, Q.J. Zhai, C. Andersson, J. Liu, Nanoparticles of the lead-free solder alloy Sn-3. 0Ag-0. 5Cu with large melting temperature depression, 38(2) (2009) 351-355.

DOI: 10.1007/s11664-008-0591-4

Google Scholar

[4] Y. Gao, C. Zou, B. Yang, Q. Zhai, J. Liu, E. Zhuravlev, C. Schick, Nanoparticles of SnAgCu lead-free solder alloy with an equivalent melting temperature of SnPb solder alloy, J. Alloys Compd. 484 (2009) 777-781.

DOI: 10.1016/j.jallcom.2009.05.042

Google Scholar
