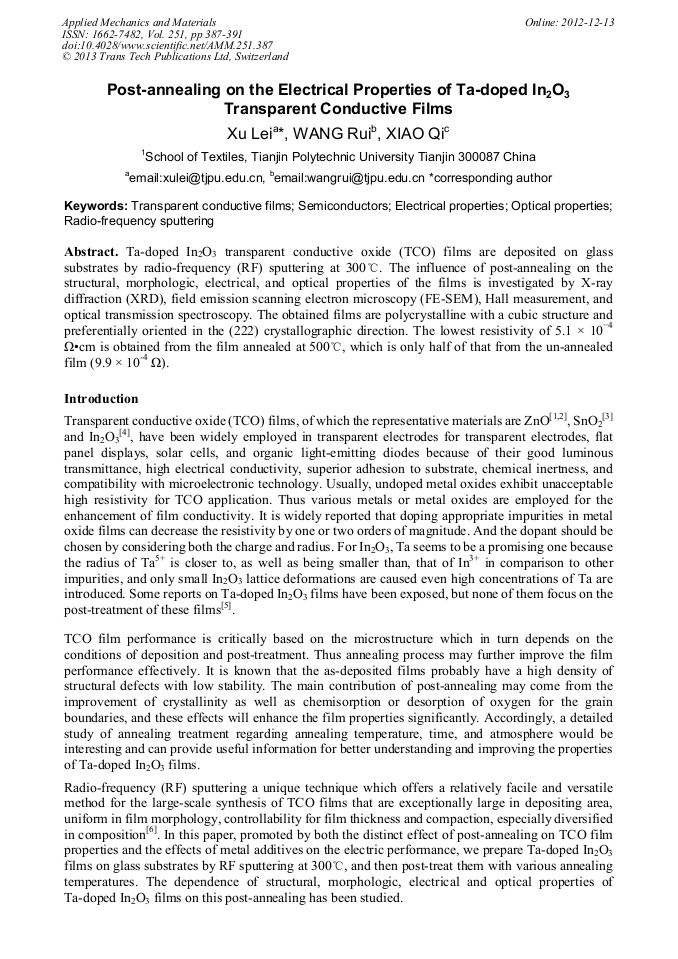

Post-Annealing on the Electrical Properties of Ta-Doped In₂O₃ Transparent Conductive Films

Abstract:

Ta-doped In2O3 transparent conductive oxide (TCO) films are deposited on glass substrates by radio-frequency (RF) sputtering at 300°C. The influence of post-annealing on the structural, morphologic, electrical, and optical properties of the films is investigated by X-ray diffraction (XRD), field emission scanning electron microscopy (FE-SEM), Hall measurement, and optical transmission spectroscopy. The obtained films are polycrystalline with a cubic structure and preferentially oriented in the (222) crystallographic direction. The lowest resistivity of 5.1 × 10−4 Ω•cm is obtained from the film annealed at 500°C, which is only half of that from the un-annealed film (9.9 × 10-4 Ω).

You might also be interested in these eBooks

New Trends in Mechanical Engineering and Materials

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 251)

Pages:

387-391

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.251.387

Citation:

Cite this paper

Online since:

December 2012

Authors:

Lei Xu, Rui Wang, Qi Xiao

Keywords:

Electrical Properties, Optical Property, Radio-Frequency Sputtering, Semiconductor, Transparent Conductive Films

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Xu. L, Wang. R, Xiao. Q, et al., Micro Humidity Sensor with High Sensitivity and Quick Response/Recovery Based on ZnO/TiO2 Composite Nanofibers, Chin. Phy. Lett. 28(2011) 0707027.

DOI: 10.1088/0256-307x/28/7/070702

Google Scholar

[2] Xu. L, Wang. R, Liu. Y, et al. Influence of Fabricating Process on Gas Sensing Properties of ZnO Nanofiber-Based Sensors. Chin. Phy. Lett. 28(2011) 0407014.

DOI: 10.1088/0256-307x/28/4/040701

Google Scholar

[3] Xiao. Q, Wang. R, Xu. L. Annealing treatment of the SnO2 thin film prepared by sol-gel method. Tianjin, China, 331(2011) 194-197.

DOI: 10.4028/www.scientific.net/amr.331.194

Google Scholar

[4] Xu. L, Wang R, Liu Y, et al. Influence of post-annealing on the properties of Ta-doped In2O3 transparent conductive films. Chin. Sci. Bull. 56(2011) 1535-1538.

DOI: 10.1007/s11434-011-4450-y

Google Scholar

[5] Zhang. B., Dong. X., Xu, X. et al., Preparation and characterization of tantalum-doped indium tin oxide films deposited by magnetron sputterin, Scripta. Materialia, 58(2008) 203-206.

DOI: 10.1016/j.scriptamat.2007.09.028

Google Scholar

[6] Zhang, D.H., Yang, T.L., Wang, Q.P. et al., Electrical and optical properties of Al-doped transparent conducting ZnO films deposited on organic substrate by RF sputtering, Mate. Chem. Phys, 68(2011) 233-238.

DOI: 10.1016/s0254-0584(00)00359-x

Google Scholar
