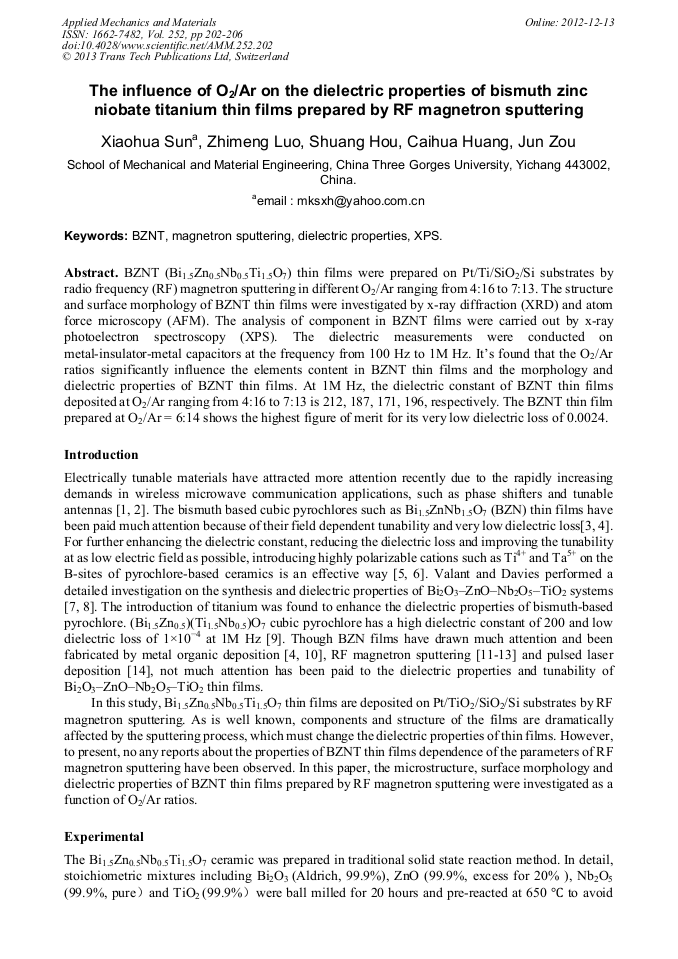

The Influence of O₂/Ar on the Dielectric Properties of Bismuth Zinc Niobate Titanium Thin Films Prepared by RF Magnetron Sputtering

Abstract:

BZNT (Bi1.5Zn0.5Nb0.5Ti1.5O7) thin films were prepared on Pt/Ti/SiO2/Si substrates by radio frequency (RF) magnetron sputtering in different O2/Ar ranging from 4:16 to 7:13. The structure and surface morphology of BZNT thin films were investigated by x-ray diffraction (XRD) and atom force microscopy (AFM). The analysis of component in BZNT films were carried out by x-ray photoelectron spectroscopy (XPS). The dielectric measurements were conducted on metal-insulator-metal capacitors at the frequency from 100 Hz to 1M Hz. It’s found that the O2/Ar ratios significantly influence the elements content in BZNT thin films and the morphology and dielectric properties of BZNT thin films. At 1M Hz, the dielectric constant of BZNT thin films deposited at O2/Ar ranging from 4:16 to 7:13 is 212, 187, 171, 196, respectively. The BZNT thin film prepared at O2/Ar = 6:14 shows the highest figure of merit for its very low dielectric loss of 0.0024.

• Periodical: Applied Mechanics and Materials (Volume 252)
• Pages: 202-206
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.252.202
• Online since: December 2012
• Authors: Xiao Hua Sun, Zhi Meng Luo, Shuang Hou, Cai Hua Huang, Jun Zou
• Keywords: BZNT, Dielectric Property, Magnetron Sputtering, XPS

References

[1] W. Ren, S. Trolier-McKinstry, C.A. Randall, et al., J. Appl. Phys. Vol. 89 (2001), p.767.

[2] S.W. Jiang, Y.R. Li, R.G. Li, et al., Appl. Phys. Lett. Vol. 94 (2009), p.162908.

[3] F. Xiang, H. Wang, M. Zhang, et al., Ceram. Int. Vol. 34 (2008), p.925.

[4] J. -G. Cheng, J. Wang, T. Dechakupt, et al., Appl. Phys. Lett. Vol. 87 (2005), p.232905.

[5] H. Du, X. YaoandH. Wang, Appl. Phys. Lett. Vol. 88 (2006), p.212901.

[6] J.Y. Kim, D.W. Kim, H.S. Jung, et al., J. Eur. Ceram. Soc. Vol. 26 (2006), p.2161.

[7] M. ValantandP. Davies, J. Mater. Sci. Vol. 34 (1999), p.5437.

[8] M. ValantandP.K. Davies, J. Am. Ceram. Soc. Vol. 83 (2000), p.147.

[9] H. DuandX. Yao, Mater. Res. Bull. Vol. 40 (2005), pp.1527-1535.

[10] R.L. Thayer, C.A. RandallandS. Trolier-McKinstry, J. Appl. Phys. Vol. 94 (2003), p. (1941).

[11] J. LuandS. Stemmer, Appl. Phys. Lett. Vol. 83 (2003), p.2411.

[12] J. Park, J. Lu, S. Stemmer, et al., J. Appl. Phys. Vol. 97 (2005), p.084110.

[13] A.K. Tagantsev, J. LuandS. Stemmer, Appl. Phys. Lett. Vol. 86 (2005), p.032901.

[14] J. Singh, A.T. Kalghatgi, J. Parui, et al., J. Appl. Phys. Vol. 108 (2010), p.054106.

[15] H. Du, X. Yao, X. Zhang, et al., Appl. Surf. Sci. Vol. 253 (2006), p.1856.
