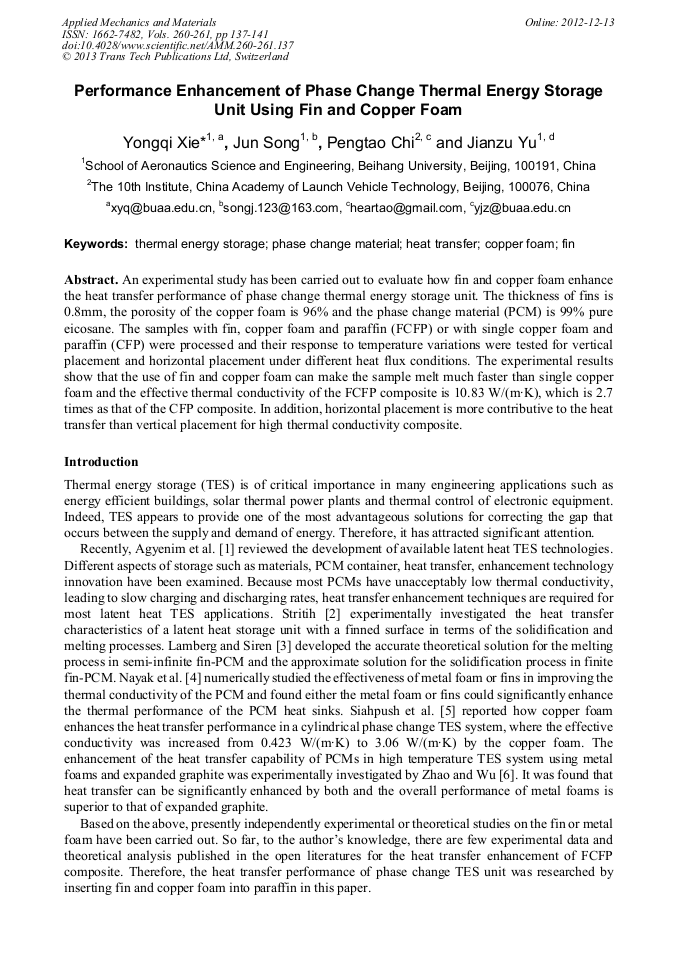

Performance Enhancement of Phase Change Thermal Energy Storage Unit Using Fin and Copper Foam

Abstract:

An experimental study has been carried out to evaluate how fin and copper foam enhance the heat transfer performance of phase change thermal energy storage unit. The thickness of fins is 0.8mm, the porosity of the copper foam is 96% and the phase change material (PCM) is 99% pure eicosane. The samples with fin, copper foam and paraffin (FCFP) or with single copper foam and paraffin (CFP) were processed and their response to temperature variations were tested for vertical placement and horizontal placement under different heat flux conditions. The experimental results show that the use of fin and copper foam can make the sample melt much faster than single copper foam and the effective thermal conductivity of the FCFP composite is 10.83 W/(m∙K), which is 2.7 times as that of the CFP composite. In addition, horizontal placement is more contributive to the heat transfer than vertical placement for high thermal conductivity composite.

• Periodical: Applied Mechanics and Materials (Volumes 260-261)
• Pages: 137-141
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.260-261.137
• Online since: December 2012
• Authors: Yong Qi Xie, Jun Song, Peng Tao Chi, Jian Zu Yu
• Keywords: Copper Foam, Fin, Heat Transfer, Phase Change Materials (PCM), Thermal Energy Storage

References

[1] F. Agyenim, P. Eames, M. Smyth, Heat transfer enhancement in medium temperature thermal energy storage system using a multitube heat transfer array, Renewable Energy. 35 (2010) 198-207.

DOI: 10.1016/j.renene.2009.03.010

[2] U. Stritih, An experimental study of enhanced heat transfer in rectangular PCM thermal storage, Int. J. Heat Mass Trans. 47 (2004) 2841-2847.

DOI: 10.1016/j.ijheatmasstransfer.2004.02.001

[3] P. Lamberg, K. Siren, Analytical model for melting in a semi-infinite PCM storage with an internal fin, Heat Mass Trans. 39 (2003) 167-176.

DOI: 10.1007/s00231-002-0291-1

[4] K. C. Nayak, S. K. Saha, K. Srinivasan and P. Dutta, A numerical model for heat sinks with phase change materials and thermal conductivity enhancers, International Journal of Heat and Mass Transfer. 49 (2006) 1833-1844.

DOI: 10.1016/j.ijheatmasstransfer.2005.10.039

[5] A. Siahpush, O. B. James and C. John, Phase change heat transfer enhancement using copper porous foam, Journal of Heat Transfer. 130 (2008) 082301-1-082301-11.

DOI: 10.1115/1.2928010

[6] C.Y. Zhao, Z. G. Wu, Heat transfer enhancement of high temperature thermal energy storage using metal foams and expanded graphite, Solar Energy Materials & Solar Cells. 95 (2011) 636-643.

DOI: 10.1016/j.solmat.2010.09.032
