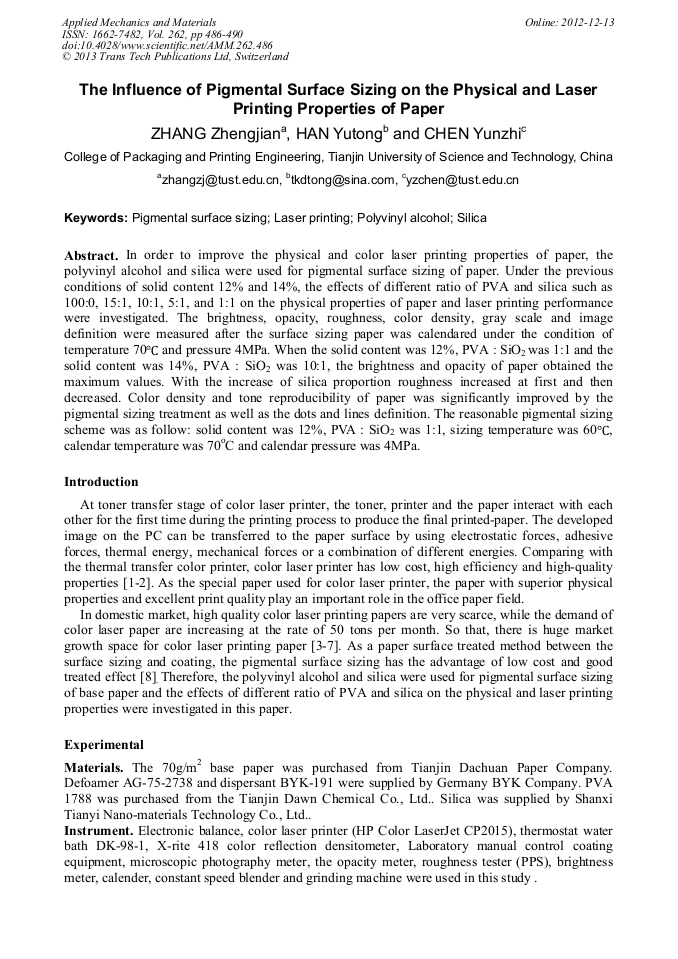

The Influence of Pigmental Surface Sizing on the Physical and Laser Printing Properties of Paper

Abstract:

In order to improve the physical and color laser printing properties of paper, the polyvinyl alcohol and silica were used for pigmental surface sizing of paper. Under the previous conditions of solid content 12% and 14%, the effects of different ratio of PVA and silica such as 100:0, 15:1, 10:1, 5:1, and 1:1 on the physical properties of paper and laser printing performance were investigated. The brightness, opacity, roughness, color density, gray scale and image definition were measured after the surface sizing paper was calendared under the condition of temperature 70°C and pressure 4MPa. When the solid content was 12%, PVA: SiO₂ was 1:1 and the solid content was 14%, PVA:SiO₂ was 10:1, the brightness and opacity of paper obtained the maximum values. With the increase of silica proportion roughness increased at first and then decreased. Color density and tone reproducibility of paper was significantly improved by the pigmental sizing treatment as well as the dots and lines definition. The reasonable pigmental sizing scheme was as follow: solid content was 12%, PVA:SiO₂ was 1:1, sizing temperature was 60°C, calendar temperature was 70°C and calendar pressure was 4MPa.

• Periodical: Applied Mechanics and Materials (Volume 262)
• Pages: 486-490
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.262.486
• Online since: December 2012
• Authors: Zheng Jian Zhang, Yu Tong Han, Yun Zhi Chen
• Keywords: Laser Printing, Pigmental Surface Sizing, Poly(vinyl alcohol), Silica

References

[1] Jian Cheng: Personal computer Vol.2(2001), p.33

[2] Yongming Wang: Imaging Materials Vol.3(2004), p.30

[3] Hui Zhang and Yunzhi Chen: The effect of pigmented surface sizing on the inkjet printing performance of paper ( Tianjin University of Science and Technology, Tianjin 2008)

[4] Yanxin Liu: The improve of inkjet printing performance of paper by the micro-coating method (Shandong Institute of Light Industry Master's thesis, Shandong 2004)

[5] Jinhua Yan: Packaging Engineering Vol.29(2008),p.10

[6] Reiner Exper: Paper Technology Vol.7(2002),p.45

[7] Qingwei Ping and Haiyang Li: Dalian University of Technology Transaction Vol.29(2010),p.437

[8] Ying Zhang and Yunzhi Chen: China Pulp and Paper Vol.25(2006),p.38

[9] J Ren, S Song and A Lopez-Valdivieso: Joumal of Colloid and Interface Vol.238(2001),p.279

[10] Teofil Jesionowski and Andrzej Krysztafkiewiez: Applied Surface Science Vol.172(2001),p.18

[11] Esa Lehtinen: Pigment coating and surface sizing of paper (Fapet Papermarking Science and Technology, Finland 2002)
