Analysis of Structure Dynamic Characteristics of a Metal Plate

Abstract:

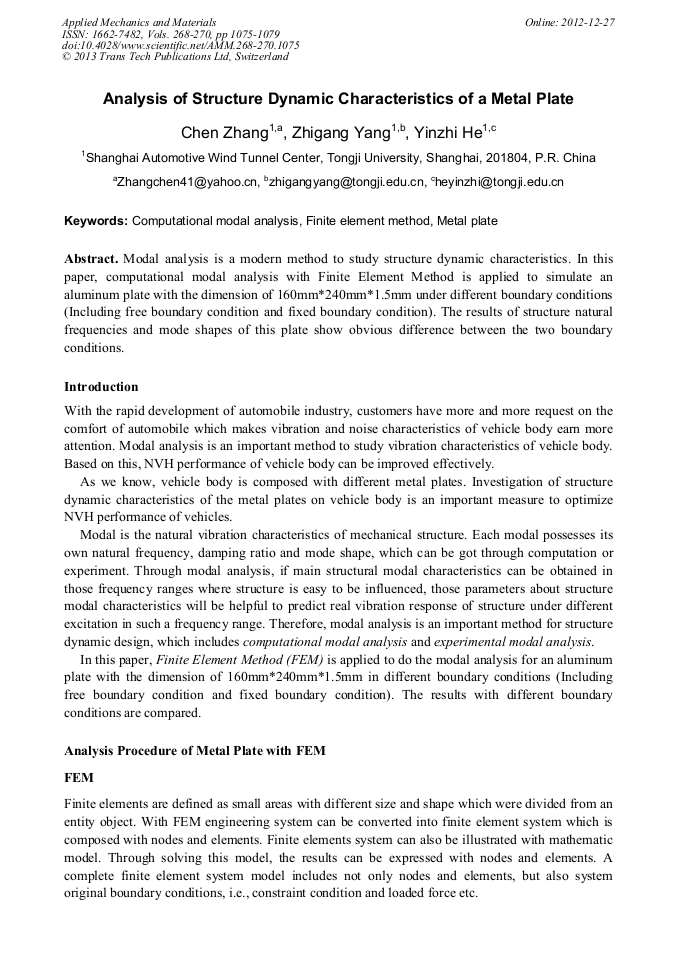

Modal analysis is a modern method to study structure dynamic characteristics. In this paper, computational modal analysis with Finite Element Method is applied to simulate an aluminum plate with the dimension of 160mm*240mm*1.5mm under different boundary conditions (Including free boundary condition and fixed boundary condition). The results of structure natural frequencies and mode shapes of this plate show obvious difference between the two boundary conditions.
