PWM Design for Active Suspension without External Energy Supply Based on LQG Control

Abstract:

A PWM controller is designed for the active suspension without external energy supply (ASWEES) using the LQG control method. Based on the quarter-vehicle ASWEES model, Energy flow equation between the suspension and the accumulator with a 2 kW load was deduced and a PWM controller was designed. When 200Hz solenoid valves were adopted, the carrier frequency and series value of the carrier signal were set as 40 and 5 respectively. Simulation results show the suspension quadratic performance index of ASWEES decreases 24.97% than that of the passive suspension. The passive suspension consumes 2.211kW power, but ASWEES reclaims energy of 2 kW.

You might also be interested in these eBooks

Materials, Mechanical Engineering and Manufacture

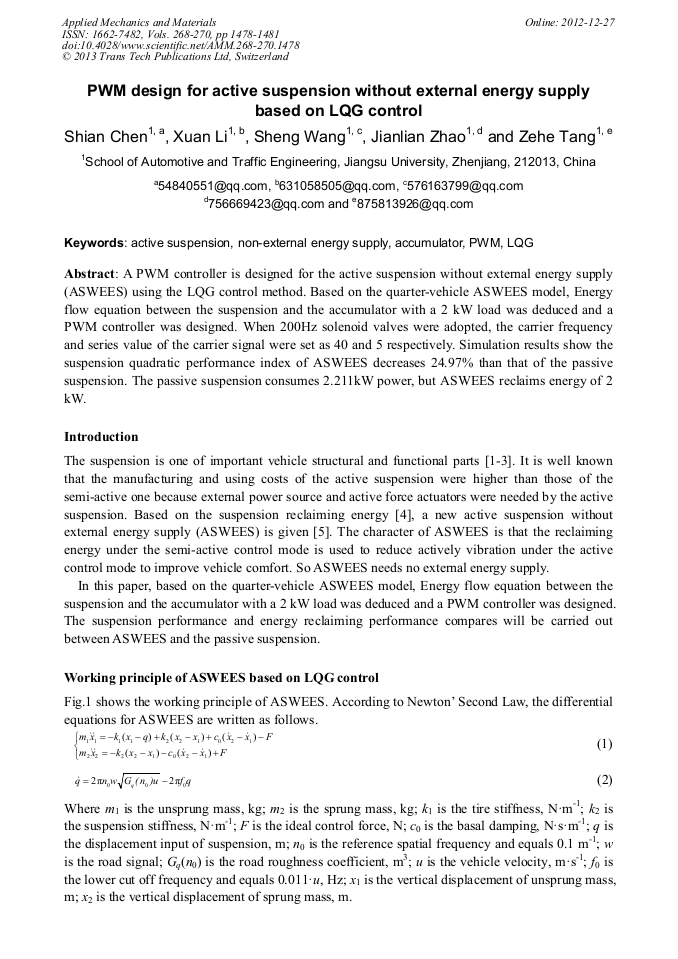

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 268-270)

Pages:

1478-1481

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.268-270.1478

Citation:

Cite this paper

Online since:

December 2012

Authors:

Shian Chen, Xuan Li, Sheng Wang, Jian Lian Zhao, Ze He Tang

Keywords:

Accumulator, Active Suspension, LQG, Non-External Energy Supply, PWM

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Z.S. Hamid, S. Atabak, K.A. Akbar and Z. Abolghassem: Intelligent semi-active vibration control of eleven degrees of freedom suspension system using magnetorheological dampers, Journal of Mechanical Science and Technology, Vol.2 (2) (2012), p.323.

DOI: 10.1007/s12206-011-1007-6

Google Scholar

[2] K. Huang, F. Yu, Y. Zhang: Active controller design for an electromagnetic energy- regenerative suspension, International Journal of Automotive Technology, Vol.12 (6) (2011), p.877.

DOI: 10.1007/s12239-011-0100-2

Google Scholar

[3] A. Malekshahi and M. Mirzaei: Designing a non-linear tracking controller for vehicle active suspension systems using an optimization process, International Journal of Automotive Technology, Vol.13 (2) (2012), p.263.

DOI: 10.1007/s12239-012-0023-6

Google Scholar

[4] S.A. Chen, R. He and S.L. Lu: New reclaiming energy suspension and its working principle, Chinese Journal of Mechanical Engineering, Vol.43 (11) (2007): p.177. (in Chinese)

DOI: 10.3901/jme.2007.11.177

Google Scholar

[5] S.A. Chen, Y.G. Wang, D. Wang, et al: Energy availability of active suspension without external energy supply, Journal of Traffic and Transportation Engineering, Vol.12 (2) (2012), p.46.
