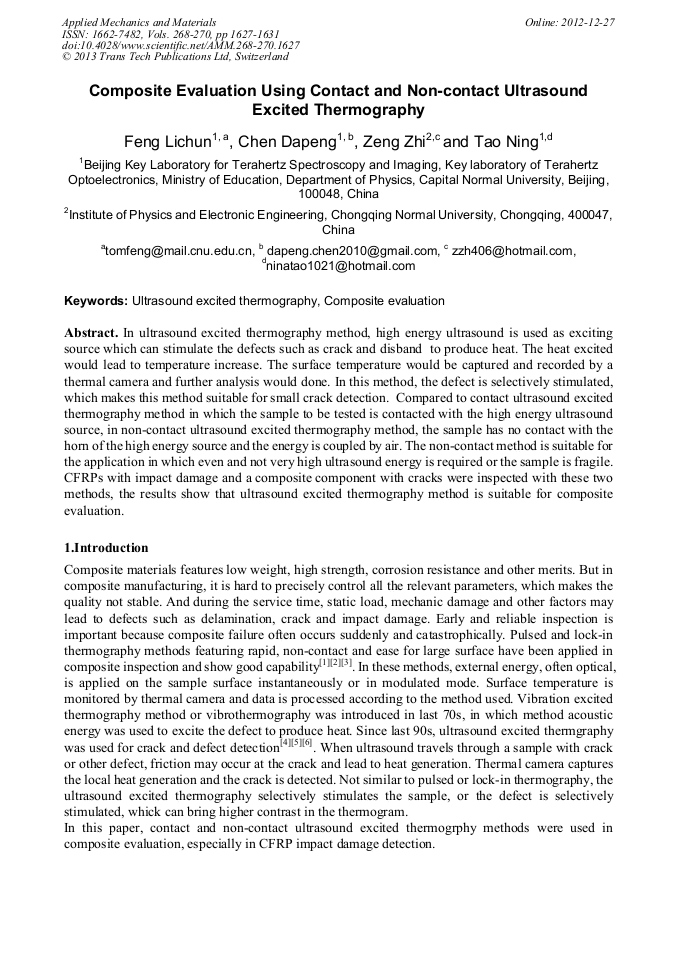

Composite Evaluation Using Contact and Non-Contact Ultrasound Excited Thermography

Abstract:

In ultrasound excited thermography method, high energy ultrasound is used as exciting source which can stimulate the defects such as crack and disband to produce heat. The heat excited would lead to temperature increase. The surface temperature would be captured and recorded by a thermal camera and further analysis would done. In this method, the defect is selectively stimulated, which makes this method suitable for small crack detection. Compared to contact ultrasound excited thermography method in which the sample to be tested is contacted with the high energy ultrasound source, in non-contact ultrasound excited thermography method, the sample has no contact with the horn of the high energy source and the energy is coupled by air. The non-contact method is suitable for the application in which even and not very high ultrasound energy is required or the sample is fragile. CFRPs with impact damage and a composite component with cracks were inspected with these two methods, the results show that ultrasound excited thermography method is suitable for composite evaluation.

• Periodical: Applied Mechanics and Materials (Volumes 268-270)
• Pages: 1627-1631
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.268-270.1627
• Online since: December 2012
• Authors: Li Chun Feng, Da Peng Chen, Zhi Zeng, Ning Tao
• Keywords: Composite Evaluation, Ultrasound Excited Thermography

References

[1] J.A. Schroeder, T.Ahmed and B.Chuadhry et al:Non-destructive testing of structural composites and adhesively bonded composite joints: pulsed thermography,Composites Part A: Applied Science and Manufacturing, Vol.33(2002), pp.1511-1517

DOI: 10.1016/s1359-835x(02)00139-2

[2] W. Bai and B.S. Wong:Evaluation of defects in composite plates under convective environments using lock-in thermography,Measurement Science and Technology, Vol.12(2001), p.142

DOI: 10.1088/0957-0233/12/2/303

[3] N.P. Avdelidis, B.C. Hawtin and D.P. Almond:Transient thermography in the assessment of defects of aircraft composites,NDT & E International, Vol.36(2003), pp.433-439

DOI: 10.1016/s0963-8695(03)00052-5

[4] Zweschper Th, Dillenz A. and Riegert G. et al:Ultrasound excited thermography using frequency modulated elastic waves,Insight - Non-Destructive Testing and Condition Monitoring, Vol.45(2003), pp.178-182

DOI: 10.1784/insi.45.3.178.53162

[5] Robin Plum and Thomas Ummenhofer:Ultrasound excited thermography of thickwalled steel load bearing members,Quantitative InfraRed Thermography Journal, Vol.6(2009), pp.79-100

DOI: 10.3166/qirt.6.79-100

[6] Andreas Gleiter, Christian SpieschBerger and Gerd Busse:Improved ultrasound activated thermography using frequency analysis,Quantitative InfraRed Thermography Journal, Vol.4(2007), pp.155-164

DOI: 10.3166/qirt.4.155-164

[7] Han Xioyan, Zeng zhi and L.D. Favro et al.: Mechianl model for the generation of acoustic chaos in sonic infrared imaging, Applied Physics Letters, Vol.85(2004), pp.1332-1334

DOI: 10.1063/1.1785285

[8] Han Xioyan, Li Wei and Zeng Zhi et al.:Acoustic chaos and sonic infrared imaging, Applied Physics Letters, Vol.81(2002), pp.3188-3190

DOI: 10.1063/1.1516240

[9] H. S. Carslaw, J. C. Jaeger: Conduction of Heat in Solids (Oxford University Press, New York, 1986)
