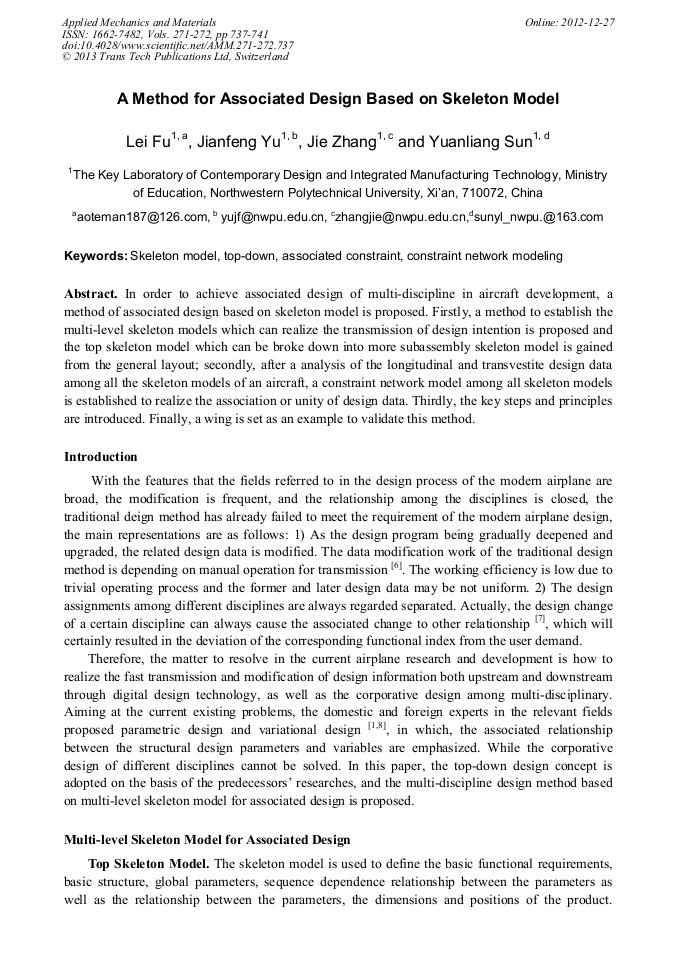

A Method for Associated Design Based on Skeleton Model

Abstract:

In order to achieve associated design of multi-discipline in aircraft development, a method of associated design based on skeleton model is proposed. Firstly, a method to establish the multi-level skeleton models which can realize the transmission of design intention is proposed and the top skeleton model which can be broke down into more subassembly skeleton model is gained from the general layout; secondly, after a analysis of the longitudinal and transvestite design data among all the skeleton models of an aircraft, a constraint network model among all skeleton models is established to realize the association or unity of design data. Thirdly, the key steps and principles are introduced. Finally, a wing is set as an example to validate this method.

• Periodical: Applied Mechanics and Materials (Volumes 271-272)
• Pages: 737-741
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.271-272.737
• Online since: December 2012
• Authors: Lei Fu, Jian Feng Yu, Jie Zhang, Yuan Liang Sun
• Keywords: Associated Constraint, Constraint Network Modeling, Skeleton Model, Top-Down

References

[1] Xiang Chen, Shuming Gao, Youdong Yang, Shuting Zhang. Multi-level assembly model for top-down design of mechanical products. Computer-Aided Design. 44 (2012) 1033-1048.

DOI: 10.1016/j.cad.2010.12.008

[2] Hung-Cheng Tsai, Jyh-Rong Chou. Automatic design support and image evaluation of two-coloured products using colour association and colour harmony scales and genetic algorithm. Computer-Aided Design. 39(2007) 818–828.

DOI: 10.1016/j.cad.2007.04.002

[3] Duhwan Mun, Jinsang Hwang, Soonhung Han. Protection of intellectual property based on a skeleton model in product design collaboration. Computer-Aided Design. 41(2009) 641-648.

DOI: 10.1016/j.cad.2009.04.007

[4] MA Jun, XIAO Tian-yuan, FAN Wen-hui. Information model of correlation for district collaborative design. Computer Integrated Manufacturing Systems. 15(2009) 1484-1492.(In Chinese)

[5] Qi Congqian, Jia Weixin. Research on assembly modeling for product variant design. CHINESE JOURNAL OF MECHANICAL ENGINEERING. 40(2004) 38-42. （In Chinese）

[6] Liu Juntang, Liu Kanwang. Application of Parallel Design Technology in Aircraft Development. AERONAUTICAL MANUFACTURING TECHNOLOGY. 14(2008) 45-47. (In Chinese)

[7] HU Xiao-ping, WANG Jiao, XV Zhao-hui. Constraint network modeling and conflict detection in vertical collaboration design. Mechanical Electrical Engineering Magazine. 26(2009) 44-51. (In Chinese)

[8] Zhang Shuting. Research on Framework and Method for Collaborative Top-down Product Design. (Ph.D., Zhe Jiang University, China 2009), P 39-48. (In Chinese)
