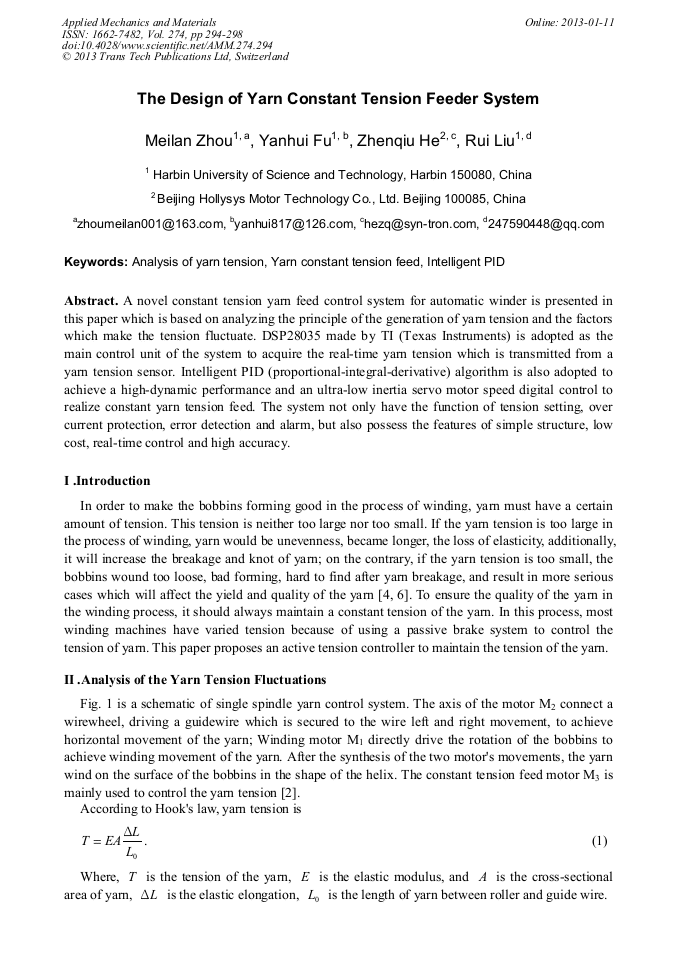

The Design of Yarn Constant Tension Feeder System

Abstract:

A novel constant tension yarn feed control system for automatic winder is presented in this paper which is based on analyzing the principle of the generation of yarn tension and the factors which make the tension fluctuate. DSP28035 made by TI (Texas Instruments) is adopted as the main control unit of the system to acquire the real-time yarn tension which is transmitted from a yarn tension sensor. Intelligent PID (proportional-integral-derivative) algorithm is also adopted to achieve a high-dynamic performance and an ultra-low inertia servo motor speed digital control to realize constant yarn tension feed. The system not only have the function of tension setting, over current protection, error detection and alarm, but also possess the features of simple structure, low cost, real-time control and high accuracy.

You might also be interested in these eBooks

Mechanical Engineering, Materials Science and Civil Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 274)

Pages:

294-298

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.274.294

Citation:

Cite this paper

Online since:

January 2013

Authors:

Mei Lan Zhou, Yan Hui Fu, Zhen Qiu He, Rui Liu

Keywords:

Analysis of Yarn Tension, Intelligent PID, Yarn Constant Tension Feed
