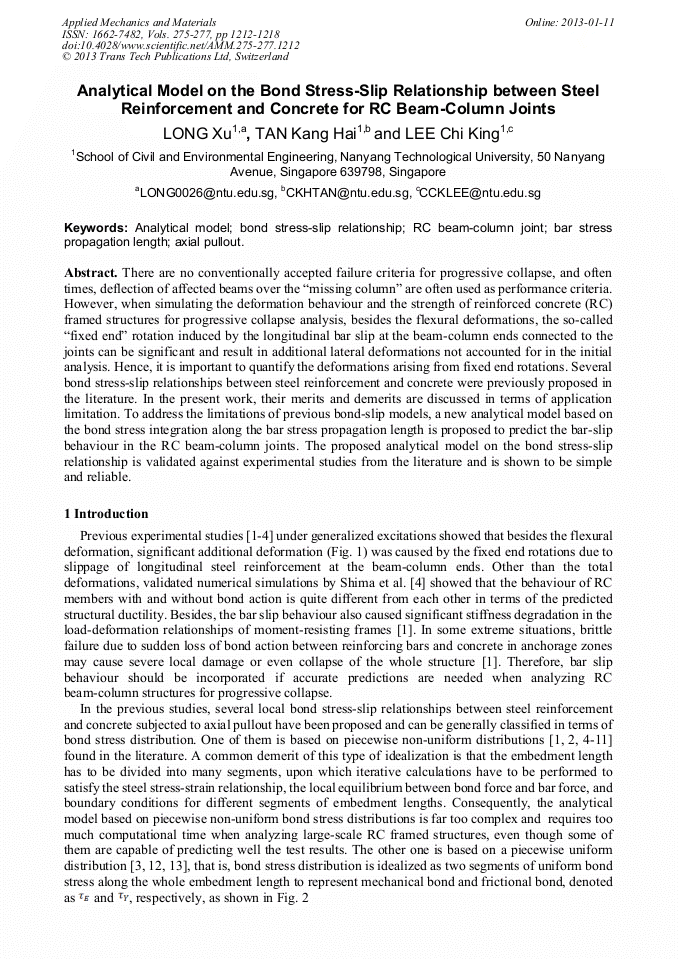

Analytical Model on the Bond Stress-Slip Relationship between Steel Reinforcement and Concrete for RC Beam-Column Joints

Abstract:

There are no conventionally accepted failure criteria for progressive collapse, and often times, deflection of affected beams over the “missing column” are often used as performance criteria. However, when simulating the deformation behaviour and the strength of reinforced concrete (RC) framed structures for progressive collapse analysis, besides the flexural deformations, the so-called “fixed end” rotation induced by the longitudinal bar slip at the beam-column ends connected to the joints can be significant and result in additional lateral deformations not accounted for in the initial analysis. Hence, it is important to quantify the deformations arising from fixed end rotations. Several bond stress-slip relationships between steel reinforcement and concrete were previously proposed in the literature. In the present work, their merits and demerits are discussed in terms of application limitation. To address the limitations of previous bond-slip models, a new analytical model based on the bond stress integration along the bar stress propagation length is proposed to predict the bar-slip behaviour in the RC beam-column joints. The proposed analytical model on the bond stress-slip relationship is validated against experimental studies from the literature and is shown to be simple and reliable.

• Periodical: Applied Mechanics and Materials (Volumes 275-277)
• Pages: 1212-1218
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.275-277.1212
• Online since: January 2013
• Authors: Xu Long, Kang Hai Tan, Chi King Lee
• Keywords: Analytical Model, Axial Pullout, Bar Stress Propagation Length, Bond Stress-Slip Relationship, RC Beam-Column Joint

References

[1] Eligehausen, R., E.P. Popov, and V.V. Bertero: Local bond stress-slip relationships of deformed bars under generalized excitations in Report UCB/EERC-83/23, Earthquake Engineering Research Center: University of California, Berkeley, California, U. S (1983).

[2] Russo, G., G. Zingone, and F. Romano: Analytical solution for bond-slip of reinforcing bars in R.C. joints. Journal of Structural Engineering-ASCE Vol. 116 (1990), pp.336-355.

DOI: 10.1061/(asce)0733-9445(1990)116:2(336)

[3] Sezen, H. and J.P. Moehle: Bond-slip behavior of reinforced concrete members. in fib-Symposium: Concrete Structures in Seismic Regions. CEB-FIP, Athens, Greece (2003).

[4] Shima, H., L.L. Chou, and H. Okamura: Micro and macro models for bond in reinforced concrete. Journal of the faculty of engineering, the university of Tokyo Vol XXXIX (1987), pp.133-194.

[5] Kwak, H.G. and F.C. Filippou: Finite element analysis of reinforced concrete structures under monotonic loads. Department of Civil Engineering, University of California, Berkeley, California, U.S., Rep. UCB/SESM-90/14 (1990).

[6] Kwak, H.G. and F.C. Filippou: Nonlinear FE analysis of R/C structures under monotonic loads. Computers & Structures Vol. 65 (1997), pp.1-16.

DOI: 10.1016/s0045-7949(96)00299-4

[7] Khalfallah, S. and M. Ouchenane: Prediction of bond between steel and concrete by numerical analysis. The Open Civil Engineering Journal Vol. 2 (2008), pp.1-8.

DOI: 10.2174/1874149500802010001

[8] Ueda, T., I. Lin, and N.M. Hawkins: Beam bar anchorage in exterior column-beam connections. Journal of the American Concrete Institute Vol. 83 (1986), pp.412-422.

DOI: 10.14359/10442

[9] Yankelevsky, D.Z.: Analytical model for bond-slip behavior under monotonic loading. Building and Environment Vol. 20 (1985), pp.163-168.

DOI: 10.1016/0360-1323(85)90011-3

[10] Noh, S.Y.: Tension Stiffening Model for Numerical Analysis of RC Structures by Using Bond-Slip Relationship. Journal of Advanced Concrete Technology Vol. 7 (2009), pp.61-78.

DOI: 10.3151/jact.7.61

[11] Menegotto, M. and P.E. Pinto: Method of analysis for cyclically loaded R.C. plane frames including changes in geometry and non-elastic behavior of elements under combined normal force and bending. in Proceedings of the International Association for Bridge and Structural Engineering on the resistance and ultimate deformability of structures acted on by well defined repeated loads. Lisbon, Portugal (1973).

[12] Lowes, L.N. and A. Altoontash: Modeling reinforced-concrete beam-column joints subjected to cyclic loading. Journal of Structural Engineering-ASCE Vol. 129 (2003), pp.1686-1697.

DOI: 10.1061/(asce)0733-9445(2003)129:12(1686)

[13] Alsiwat, J.M. and M. Saatcioglu: Reinforcement anchorage slip under monotonic loading. Journal of Structural Engineering-ASCE Vol. 118 (1992), pp.2421-2438.

DOI: 10.1061/(asce)0733-9445(1992)118:9(2421)

[14] CEB: CEB-FIP Model Code 2010, Lausanne, Switzerland (2010).
