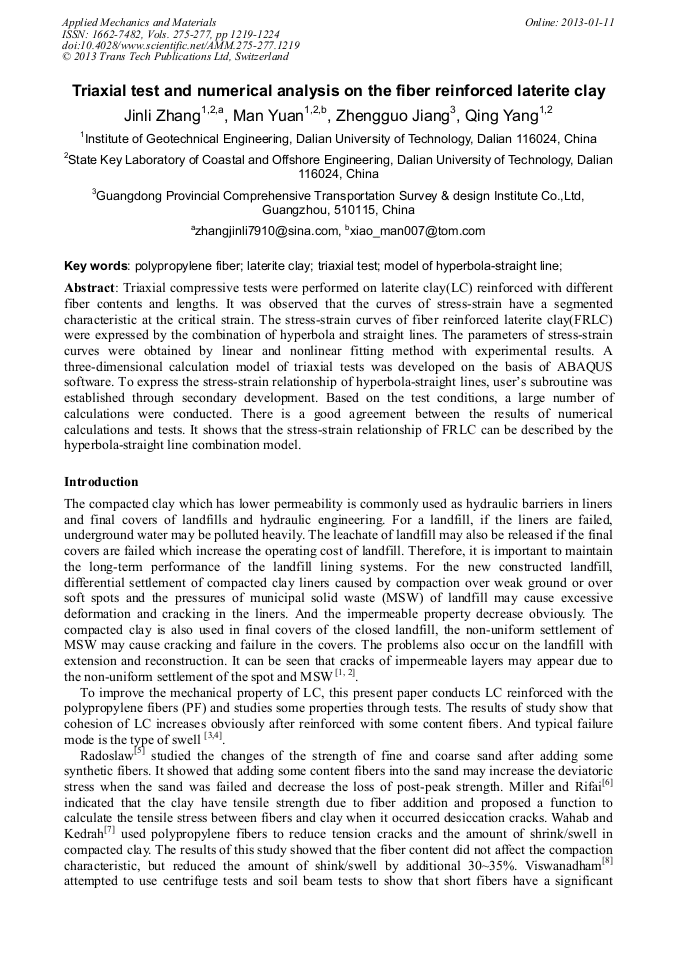

Triaxial Test and Numerical Analysis on the Fiber Reinforced Laterite Clay

Abstract:

Triaxial compressive tests were performed on laterite clay(LC) reinforced with different fiber contents and lengths. It was observed that the curves of stress-strain have a segmented characteristic at the critical strain. The stress-strain curves of fiber reinforced laterite clay(FRLC) were expressed by the combination of hyperbola and straight lines. The parameters of stress-strain curves were obtained by linear and nonlinear fitting method with experimental results. A three-dimensional calculation model of triaxial tests was developed on the basis of ABAQUS software. To express the stress-strain relationship of hyperbola-straight lines, user’s subroutine was established through secondary development. Based on the test conditions, a large number of calculations were conducted. There is a good agreement between the results of numerical calculations and tests. It shows that the stress-strain relationship of FRLC can be described by the hyperbola-straight line combination model.

• Periodical: Applied Mechanics and Materials (Volumes 275-277)
• Pages: 1219-1224
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.275-277.1219
• Online since: January 2013
• Authors: Jin Li Zhang, Man Yuan, Zheng Guo Jiang, Qing Yang
• Keywords: Laterite Clay, Model of Hyperbola-Straight Line, Polypropylene Fiber, Triaxial Test

References

[1] Minyun Hu, Yunmin Chen, Zhentong Wen. Study on the compressibility and deformation of MSW in landfill [J]. Chinese Jounal of Geotechnical Engineering, 2003, 23(1): 123–126. (in Chinese).

[2] Zhiping Wang. Study on the Compressibility of Municipal Solid Waste and Landfill Settlement [D]. Hangzhou: Zhejiang University, 2007. (in Chinese).

[3] Zhengguo Jiang. Experimental study on fiber reinforced laterite clay[D]. Liaoning: Dalian University of Technology, 2011. (in Chinese).

[4] Jinli Zhang, Zhengguo Jiang, Yang Gang. Experimental study on mechanical behaviors of polypropylene fiber reinforced clay [J]. Chinese Jounal of Geotechnical Engineering, 2011, 33(1): 420–425. (in Chinese).

[5] Radoslaw L.M. Triaxial compression of sand reinforeced with fibers [J]. Journal of Geotechnical and Geoenvironmental Engineering, 2003, 2: 125-136.

[6] Gray D H, AL-Refeai T. Behavior of fabric-versus fiber-reinforced sand [J]. Journal of Geotechnical and Geoenvironmental Engineering, ASCE, 1986, 112(8): 804-820.

DOI: 10.1061/(asce)0733-9410(1986)112:8(804)

[7] Al Wahab, R. M., EI-Kedrah, M. A. (1995). Using fibers to reduce tension cracks and shrink/swell in compacted clay. Geoenvironment 2000, Geotechnical Special Publication No. 46, ASCE, New York, 791–805.

[8] Viswanadham B V S, JHA B K, Sengupta S S. Centrifuge testing of fiber-reinforced soil liners for waste containment systems [J]. Practice Periodical of Hazardous, Toxic, and Radioactive Waste Management, 2009, 13(1): 45–58.

DOI: 10.1061/(asce)1090-025x(2009)13:1(45)

[9] G.L. Sivakumar, A. K. Vasudevan. Numerical simulation of fiber-reinforced sand behavior [J]. Geotextiles and Geomembranes, 2008, 26: 181-188.

DOI: 10.1016/j.geotexmem.2007.06.004

[10] G.L. Sivakumar, A. K. Vasudevan. Strength and stiffness response of coir fiber-reinforced tropical soil [J]. Journal of materials in civil engineering. 2008, 9: 571-577.

DOI: 10.1061/(asce)0899-1561(2008)20:9(571)

[11] Yuanjie Xu, Guanqi Wang, Jian Li. Development and implementation of Duncan-Chang constitutive model in ABAQUS [J]. Rock and Soil Mechanics, 2004, 25(7): 1032－1036. (in Chinese).

[12] Xin Zhang, Xiuli Ding, Shucai Li. Secondary Development of Duncan Chang Model in ABAQUS Software [J]. Journal of Yangtze River Scientific Research Institute, 2005, 4(22): 45-51. (in Chinese).

[13] Duncan J M, Chang C Y. Nonlinear analysis of stress and strain in soil [J]. Journal of the Soil Mechanics and Foundations Division, 1970, 96(5): 1629-1653.

DOI: 10.1061/jsfeaq.0001458

[14] Duncan J M, Byrne P M, Wong K S, et al, Strength, stress-strain and bulk modulus parameters for finite element analysis of stresses and movements in soil masses[R]. Geotechnical Engineering Research Report. Berkeley: Dept of Civi1 Engineering, University of California, (1980).
