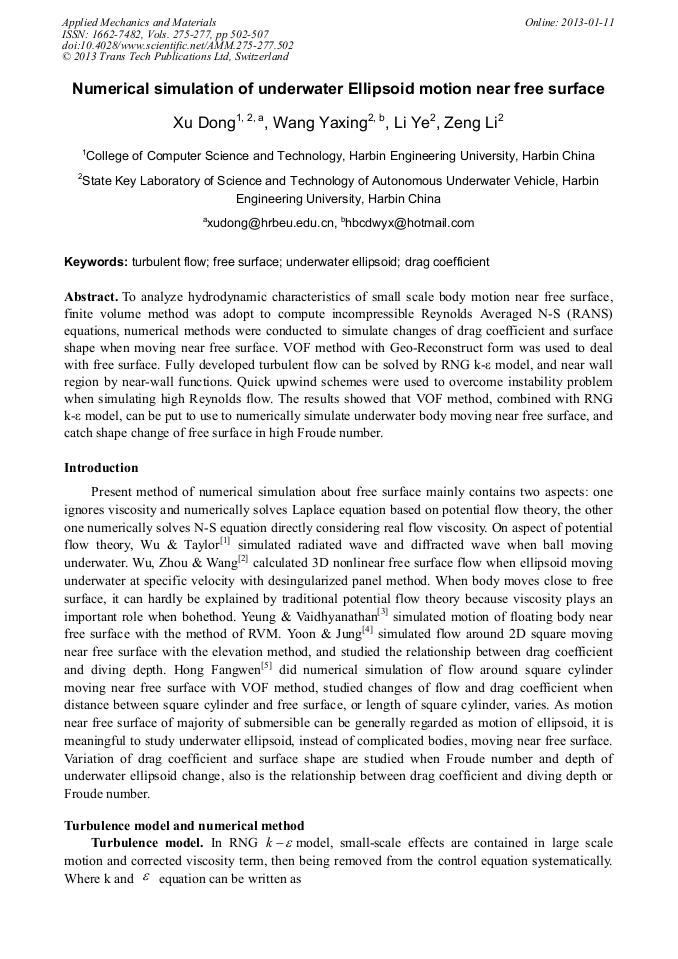

Numerical Simulation of Underwater Ellipsoid Motion near Free Surface

Abstract:

To analyze hydrodynamic characteristics of small scale body motion near free surface, finite volume method was adopt to compute incompressible Reynolds Averaged N-S (RANS) equations, numerical methods were conducted to simulate changes of drag coefficient and surface shape when moving near free surface. VOF method with Geo-Reconstruct form was used to deal with free surface. Fully developed turbulent flow can be solved by RNG k-ε model, and near wall region by near-wall functions. Quick upwind schemes were used to overcome instability problem when simulating high Reynolds flow. The results showed that VOF method, combined with RNG k-ε model, can be put to use to numerically simulate underwater body moving near free surface, and catch shape change of free surface in high Froude number.

• Periodical: Applied Mechanics and Materials (Volumes 275-277)
• Pages: 502-507
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.275-277.502
• Online since: January 2013
• Authors: Xu Dong, Ya Xing Wang, Ye Li, Li Zeng
• Keywords: Drag Coefficient, Free Surface, Turbulent Flow, Underwater Ellipsoid

References

[1] WU G X, TAYLOR R E. Radiation and diffraction of water waves by a submerged sphere at forward speed [A]. Proceeding of the Royal Society of London [C]. London, UK, (1998).

[2] WU J P, ZOU Z J, WANG R K. Numerical simulation of the nonlinear waves generated by a submerged ellipsoid [J]. Journal of Ship Mechanics, 2004, 8(1): 56－62.

[3] YEUNG R W, VALIDHYANATHAN M. Highly separated flow near a free surface [A]. Proceedings of the international Conference on Hydrodynamics[C]. Wuxi, China, (1994).

[4] YOON B S, JUNG R T. A wake field control technique for blunt body drag reduction[A]. Proceedings of China-Korea Marine Hydrodynamics Meeting [C]. Shanghai, China, (1997).

[5] Hong Fangwen. Numerical and experimental study of a body moving near free surface[D]. Wuxi: Chian ship scientific research center, (2001).

[6] Wu Fangliang, Wu xiaoguang, Xu Jian, Ma Yunyi, He Hanbao. Method of Numerical Calculation of the 3D Viscous Flow Field over a Submarine Main Hull[J]. Shipbuilding of China, 2009, 50(2): 12-22.

[7] Wang Fujun. Computational Fluid Dynamics Analysis—Software principles and applications of CFD [M]. Beijing: Tsinghua university press, (2004).

[8] Lv Haining, Yang Jianmin, Peng Tao. A study on the current generating system of the deepwater offshore basin using CFD[J]. Shipbuilding of China, 2005, 46(Special): 48-54.

[9] Xie Junyuan, Ma Ling, Hu Zhen. Motion simulation research on deep-sea human occupied vehicle[J]. Shipbuilding of China, 2006, 47(2): 62-69.

[10] FRANK M WHITE. Fluid Mechanics [M]. Fifth edition(photomechanical printing). Beijing: Tsinghua university press，(2004).
