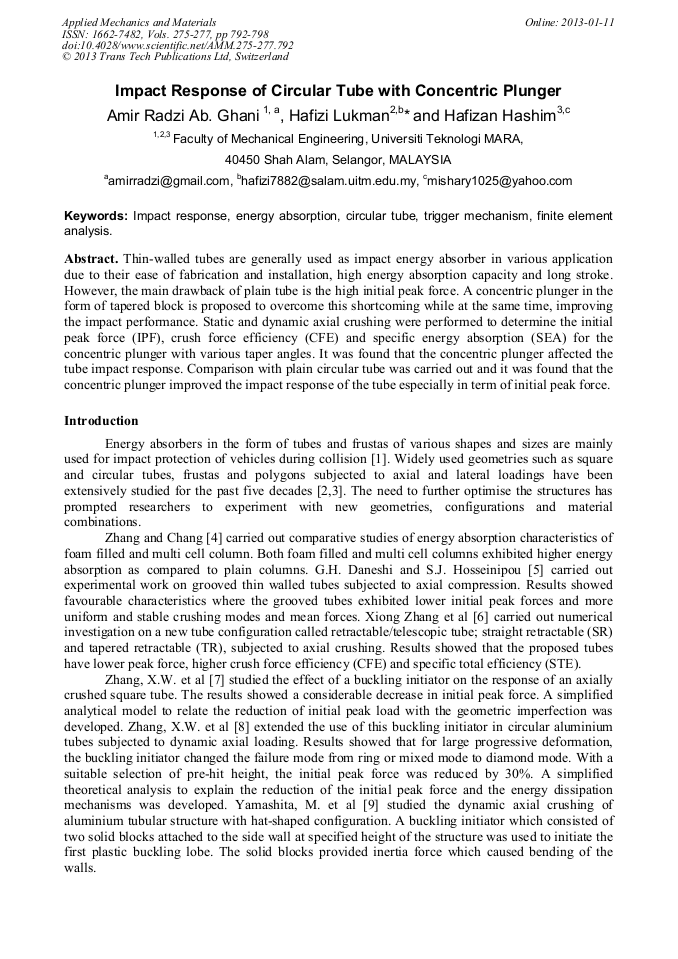

Impact Response of Circular Tube with Concentric Plunger

Abstract:

Thin-walled tubes are generally used as impact energy absorber in various application due to their ease of fabrication and installation, high energy absorption capacity and long stroke. However, the main drawback of plain tube is the high initial peak force. A concentric plunger in the form of tapered block is proposed to overcome this shortcoming while at the same time, improving the impact performance. Static and dynamic axial crushing were performed to determine the initial peak force (IPF), crush force efficiency (CFE) and specific energy absorption (SEA) for the concentric plunger with various taper angles. It was found that the concentric plunger affected the tube impact response. Comparison with plain circular tube was carried out and it was found that the concentric plunger improved the impact response of the tube especially in term of initial peak force.

• Periodical: Applied Mechanics and Materials (Volumes 275-277)
• Pages: 792-798
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.275-277.792
• Online since: January 2013
• Authors: Amir Radzi Ab Ghani, Hafizi Lukman, Hafizan Hashim
• Keywords: Circular Tube, Energy Absorption, Finite Element Analysis (FEA), Impact Response, Trigger Mechanism

References

[1] Johnson, W. (1996). Introduction to Crashworthiness. International Journal of Crashworthiness. 1(1): pp.5-10.

[2] Jones, N. (1997). Structural Impact. Cambridge University Press.

[3] Yu, T. X. and Lu, G. (2003). Energy absorption of structures and materials, Woodhead Publishing, Cambridge, United Kingdom.

[4] Xiong Zhang, Gengdong Cheng. (2007). A comparative study of energy absorption characteristics of foam filled and multi square columns. Int. Journal of Impact Engineering. 34: pp.1739-1752.

DOI: 10.1016/j.ijimpeng.2006.10.007

[5] G.H. Daneshi and S.J. Hosseinipou. (2003). Grooves effect on crashworthiness characteristics of thin walled tubes under axial compression. Materials and Design. 23: pp.611-617.

DOI: 10.1016/s0261-3069(02)00052-3

[6] Xiong Zhang, Gengdong Cheng and Hui Zhang. (2009). Numerical investigation on a new t ype of energy absorbing structure based on free inversion of tubes. Int. Journal of Mechanical Sciences. 51: pp.64-76.

DOI: 10.1016/j.ijmecsci.2008.11.001

[7] Zhang, X.W., Su, H. and Yu, T.X. (2009). Energy absorption of an axially crushed square tube with a buckling initiator. Int. Journal of Impact Engineering. 36: 402-417.

DOI: 10.1016/j.ijimpeng.2008.02.002

[8] Zhang, X. W, Tian, Q. D and Yu, T.X. (2009). Axial crushing of circular tubes with buckling initiators. Thin Walled Structures. 47: 788-797.

DOI: 10.1016/j.tws.2009.01.002

[9] Yamashita, M., Kenmotsu, H. and Hattori, T. (2012). Dynamic axial compression of aluminium hollow tubes with hat cross-section and buckling initiator using inertia force during impact. Thin Walled Structures. 50: 37-44.

DOI: 10.1016/j.tws.2011.10.001

[10] Alexander, J. M. (1960). An approximate analysis of the collapse of thin cylindrical shells under axial loading. Quarterly Journal Mechanics and Applied Mathematics. 13: pp.10-15.

DOI: 10.1093/qjmam/13.1.10
