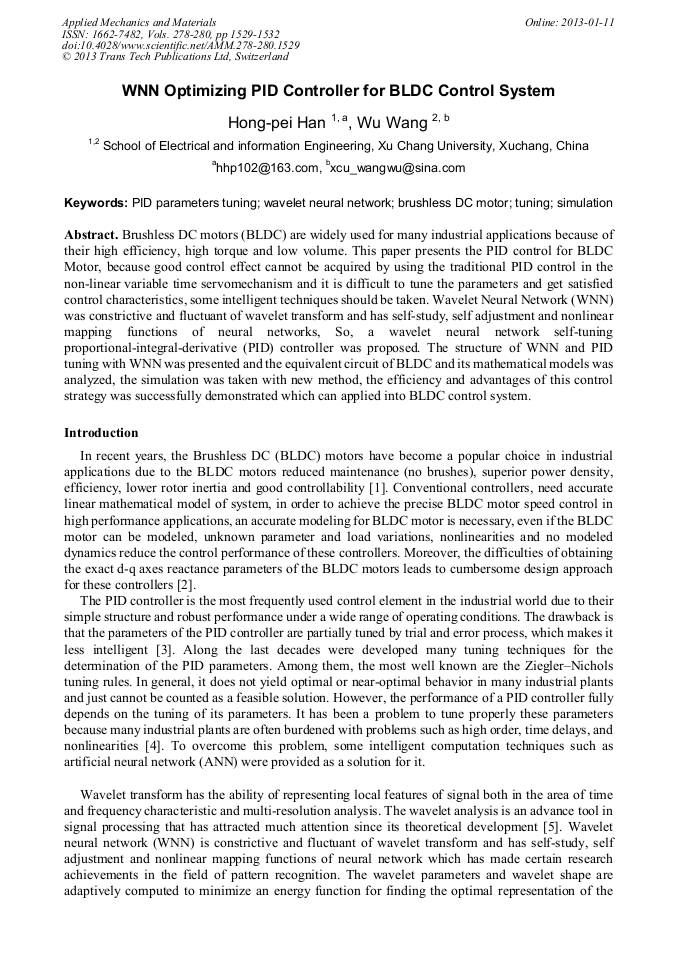

WNN Optimizing PID Controller for BLDC Control System

Abstract:

Brushless DC motors (BLDC) are widely used for many industrial applications because of their high efficiency, high torque and low volume. This paper presents the PID control for BLDC Motor, because good control effect cannot be acquired by using the traditional PID control in the non-linear variable time servomechanism and it is difficult to tune the parameters and get satisfied control characteristics, some intelligent techniques should be taken. Wavelet Neural Network (WNN) was constrictive and fluctuant of wavelet transform and has self-study, self adjustment and nonlinear mapping functions of neural networks, So, a wavelet neural network self-tuning proportional-integral-derivative (PID) controller was proposed. The structure of WNN and PID tuning with WNN was presented and the equivalent circuit of BLDC and its mathematical models was analyzed, the simulation was taken with new method, the efficiency and advantages of this control strategy was successfully demonstrated which can applied into BLDC control system.

• Periodical: Applied Mechanics and Materials (Volumes 278-280)
• Pages: 1529-1532
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.278-280.1529
• Online since: January 2013
• Authors: Hong Pei Han, Wu Wang
• Keywords: Brushless Dc Motor (BLDCM), PID Parameter Tuning, Simulation, Tuning, Wavelet Neural Network (WNN)

References

[1] J. R. Hendershot and T. J. E. Miller, Design of brushless permanent magnet motors, Oxford UniversityPress (1994).

[2] Rahman M.A. and Zhow P.: Analysis of Brushless Permanent Magnet Synchronous Motors, IEEE Transactions on Industrial Electronics (1996), Vol. 43. 256-267.

DOI: 10.1109/41.491349

[3] Cominos, P, Munro, N. PID Controllers: Recent Tuning Methods and Design to Specification. IEEE Proceedings Control Theory and Applications 149, 2002, p.46–53.

DOI: 10.1049/ip-cta:20020103

[4] Howell, M.N., Best, M.C. On-Line PID Tuning for Engine Idle-Speed Control Using Continuous Action Reinforcement Learning Automata. Control Engineering Practice 8, 2000, p.147–154.

DOI: 10.1016/s0967-0661(99)00141-0

[5] D. Wang and J. Ding . Wavelet Network Model and Its Application to the Prediction of Hydrology, nature and Science, Vol. 1, No. 1, 2003, pp.67-71.

[6] M.C. Huang, Wave Parameters and Functions in Wavelet Analysis, Ocean Engineering, Vol. 31, No. 1, 2004, pp.111-125.

[7] L.C. Smith,D. Turcotte and B. L. Isacks, Stream Flow Characterization and Feature Detection Using a Discrete Wavelet Transform, Hydrological Processes, Vol. 12, No. 2, 1998, pp.233-249.

DOI: 10.1002/(sici)1099-1085(199802)12:2<233::aid-hyp573>3.0.co;2-3

[8] WANG WU. Simulation of Mobile Welding Robot with Variable Structure Control. 2010 Asia-Pacific Conference on Innovative Computing and Communication, Information Technology and Ocean Engineering (CICC-ITOE 2010) , 2010, pp.106-109.

DOI: 10.1109/cicc-itoe.2010.35

[9] Wang Wu, Su Liang-yu. Application of CMAC-PID Compound Control in PMLSM Servo System[J]. Advanced Materials Research Vols. 341-342(2012), pp.780-784.

DOI: 10.4028/www.scientific.net/amr.341-342.780

[10] Wang Wu, Wang Hong-ling, Bai Zheng-min. Fault Diagnosis of Three Level Inverter Based on Improved Neural Networks[J]. Lecture Notes in Electrical Engineering, 2011, Vol. 97, pp.55-62.

DOI: 10.1007/978-3-642-21697-8_8

[11] Liu J.K. Advanced PID Control and MATLAB Simulation. Publishing House of Electronics Industry, Beijing (2003).
