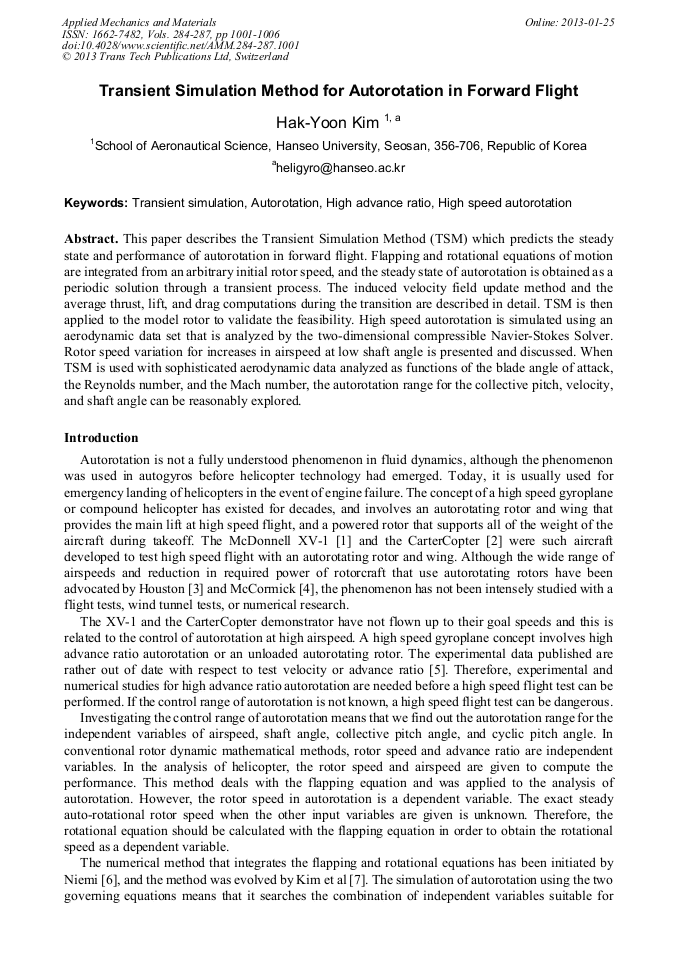

Transient Simulation Method for Autorotation in Forward Flight

Abstract:

This paper describes the Transient Simulation Method (TSM) which predicts the steady state and performance of autorotation in forward flight. Flapping and rotational equations of motion are integrated from an arbitrary initial rotor speed, and the steady state of autorotation is obtained as a periodic solution through a transient process. The induced velocity field update method and the average thrust, lift, and drag computations during the transition are described in detail. TSM is then applied to the model rotor to validate the feasibility. High speed autorotation is simulated using an aerodynamic data set that is analyzed by the two-dimensional compressible Navier-Stokes Solver. Rotor speed variation for increases in airspeed at low shaft angle is presented and discussed. When TSM is used with sophisticated aerodynamic data analyzed as functions of the blade angle of attack, the Reynolds number, and the Mach number, the autorotation range for the collective pitch, velocity, and shaft angle can be reasonably explored.

• Periodical: Applied Mechanics and Materials (Volumes 284-287)
• Pages: 1001-1006
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.284-287.1001
• Online since: January 2013
• Authors: Hak Yoon Kim
• Keywords: Autorotation, High Advance Ratio, High Speed Autorotation, Transient Simulation

References

[1] Hickey, D. H. hickey, Full-Scale Wind-Tunnel Tests of the Longitudinal Stability and Control Characteristics of the XV-1 Convertiplane in the Autorotating Flight Range. NACA RM A55K21a, (1956).

[2] http: /www. cartercopters. com M.A. Green: High Efficiency Silicon Solar Cells (Trans Tech Publications, Switzerland 1987).

[3] S. S. Houston, The Gyrodyne-A Forgotten High Performer?. Journal of the American Helicopter Society, Vol. 52, No. 4, pp.382-391, (2007).

DOI: 10.4050/jahs.52.382

[4] A., W. McCormick, A Numerical Analysis of Autogyro Performance. AIAA Paper 2002-5950, Nov. (2002).

[5] J. B. wheatley, and M. hood, Full-Scale Wind-Tunnel Tests of a PCA-2 Autogiro Rotor. NACA TR No. 515. (1934). R.J. Ong, J.T. Dawley and P.G. Clem: submitted to Journal of Materials Research (2003).

[6] E. E, JR. niemi. A Method for Determining the Effects of Rapid Inflow Changes on the Dynamics of an Autorotating Rotor. Ph.D. Dissertation, Dept. of Mechanical and Aerospace Engineering, Univ. of Massachusetts Amherst, Massachusetts, U.S., Apr. (1974).

[7] H. Y. kim, D. J. sheen and S. O. park, Numerical Simulation of Autorotation in Forward Flight. Journal of aircraft, Vol. 46, No. 5, (2009), pp.1642-1648.

DOI: 10.2514/1.42209

[8] J. B. wheatley and C. bioletti, Wind-Tunnel Tests of 10-Foot-Diameter Autogiro Rotors. NACA TR 552, (1936). Information on http: /www. weld. labs. gov. cn.
