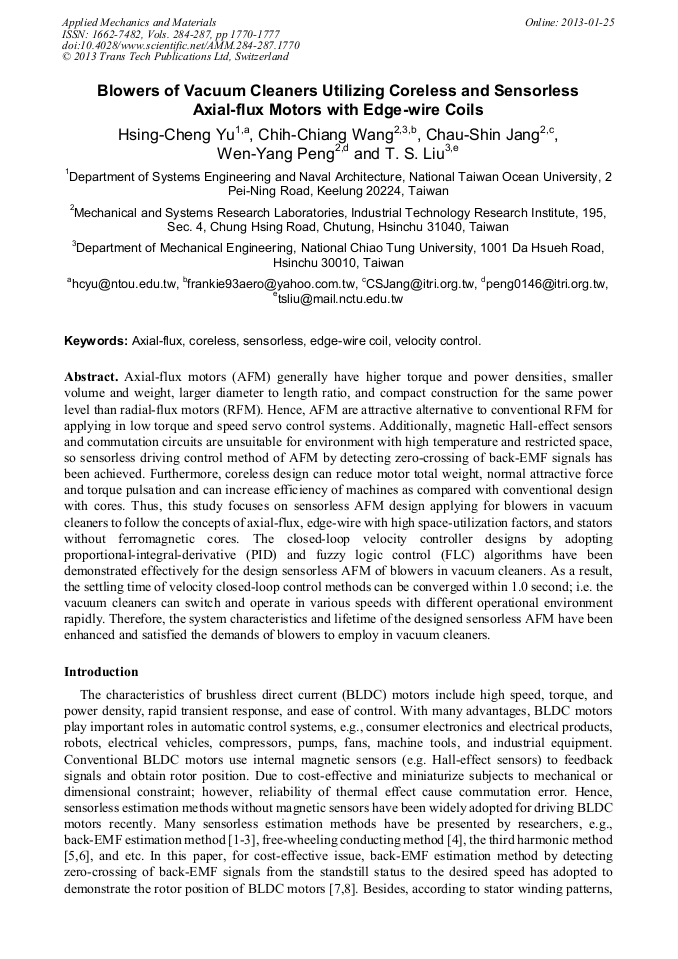

Blowers of Vacuum Cleaners Utilizing Coreless and Sensorless Axial-Flux Motors with Edge-Wire Coils

Abstract:

Axial-flux motors (AFM) generally have higher torque and power densities, smaller volume and weight, larger diameter to length ratio, and compact construction for the same power level than radial-flux motors (RFM). Hence, AFM are attractive alternative to conventional RFM for applying in low torque and speed servo control systems. Additionally, magnetic Hall-effect sensors and commutation circuits are unsuitable for environment with high temperature and restricted space, so sensorless driving control method of AFM by detecting zero-crossing of back-EMF signals has been achieved. Furthermore, coreless design can reduce motor total weight, normal attractive force and torque pulsation and can increase efficiency of machines as compared with conventional design with cores. Thus, this study focuses on sensorless AFM design applying for blowers in vacuum cleaners to follow the concepts of axial-flux, edge-wire with high space-utilization factors, and stators without ferromagnetic cores. The closed-loop velocity controller designs by adopting proportional-integral-derivative (PID) and fuzzy logic control (FLC) algorithms have been demonstrated effectively for the design sensorless AFM of blowers in vacuum cleaners. As a result, the settling time of velocity closed-loop control methods can be converged within 1.0 second; i.e. the vacuum cleaners can switch and operate in various speeds with different operational environment rapidly. Therefore, the system characteristics and lifetime of the designed sensorless AFM have been enhanced and satisfied the demands of blowers to employ in vacuum cleaners.

• Periodical: Applied Mechanics and Materials (Volumes 284-287)
• Pages: 1770-1777
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.284-287.1770
• Online since: January 2013
• Authors: Hsing Cheng Yu, Chih Chiang Wang, Chau Shin Jang, Wen Yang Peng, T.S. Liu
• Keywords: Axial-Flux, Coreless, Edge-Wire Coil, Sensorless, Velocity Control

References

[1] K. Iizuka, H. Uzuhashi, M. Kano, T. Endo and K. Mohri, Microcomputer Control for Sensorless Brushless Motor, IEEE Transactions Industry Applications, vol. 21, no. 4, pp.595-601, (1985).

DOI: 10.1109/tia.1985.349715

[2] P. Damodharan and K. Vasudevan, Indirect Back-EMF Zero Crossing Detection for Sensorless BLDC Motor Operation, Proceedings of IEEE PEDS Conference, vol. 2, pp.1107-1111, (2005).

DOI: 10.1109/peds.2005.1619853

[3] C.H. Chen and M.Y. Cheng, A New Cost Effective Sensorless Commutation Method for Brushless DC Motors without Phase Shift Circuit and Neutral Voltage, IEEE Transactions Power Electronics, vol. 22, no. 2, pp.664-653, (2007).

DOI: 10.1109/tpel.2006.890006

[4] S. Ogasawara and H. Akagi, An Approach to Position Sensorless Drive for Brushless DC Motor, IEEE Transactions on Industry Applications, vol. 27, no. 5, pp.928-933, (1991).

DOI: 10.1109/28.90349

[5] J.C. Moreira, Indirect Sensing for Rotor Flux Position of Permanent Magnet AC Motors Operating in a Wide Speed Range, IEEE Transactions on Industry Applications, vol. 32, no. 6, pp.1394-1401, (1996).

DOI: 10.1109/28.556643

[6] J.X. Shen, Z.Q. Zhu and D. Howe, Sensorless Flux-weakening Control of Permanent Magnet Brushless Machines Using Third-harmonic Back-EMF, IEEE Transactions Industry Applications, vol. 40, no. 6, pp.1629-1636, (2004).

DOI: 10.1109/tia.2004.836157

[7] Q. Jiang, C. Bi and R. Huang, A New Phase-delay-free Method to Detect Back EMF Zero-crossing Points for Sensorless Control of Spindle Motors, IEEE Transactions on Magnetics, vol. 41, no. 7, pp.2287-2294, (2005).

DOI: 10.1109/tmag.2005.851841

[8] P. Damodharan and K. Vasudevan, Sensorless Brushless DC Motor Drive Based on the Zero-crossing Detection of Back Electromotive Force (EMF) from the Line Voltage Difference, IEEE Transactions on Energy Conversion, vol. 25, no. 3, pp.661-668, (2010).

DOI: 10.1109/tec.2010.2041781

[9] K. Sitapati and R. Krishnan, Performance Comparisons of Radial and Axial Field, Permanent-magnet, Brushless Machines, IEEE Transactions on Industry Applications, vol. 37, no. 5, pp.1219-1226, (2001).

DOI: 10.1109/28.952495

[10] Z. Zhang, F. Profumo and A. Tenconi, Analysis and Experimental Validation of Performance for an Axial Flux Permanent Magnet Brushless DC Motor with Powder Iron Metallurgy Cores, IEEE Transaction on Magnetics, vol. 33, no. 5, pp.4194-4196, (1997).

DOI: 10.1109/20.619707

[11] F. Golnaraghi and B.C. Kuo, Automatic Control Systems, 9th ed., John Wiley, New York, 2010, pp.487-650.

[12] A. Suyitno, J. Fujikawa, H. Kobayashi and Y. Dote, Variable-structured Robust Controller by Fuzzy Logic for Servomotors, IEEE Transactions on Industrial Electronics, vol. 40, no. 1, pp.80-88, (1993).

DOI: 10.1109/41.184824
