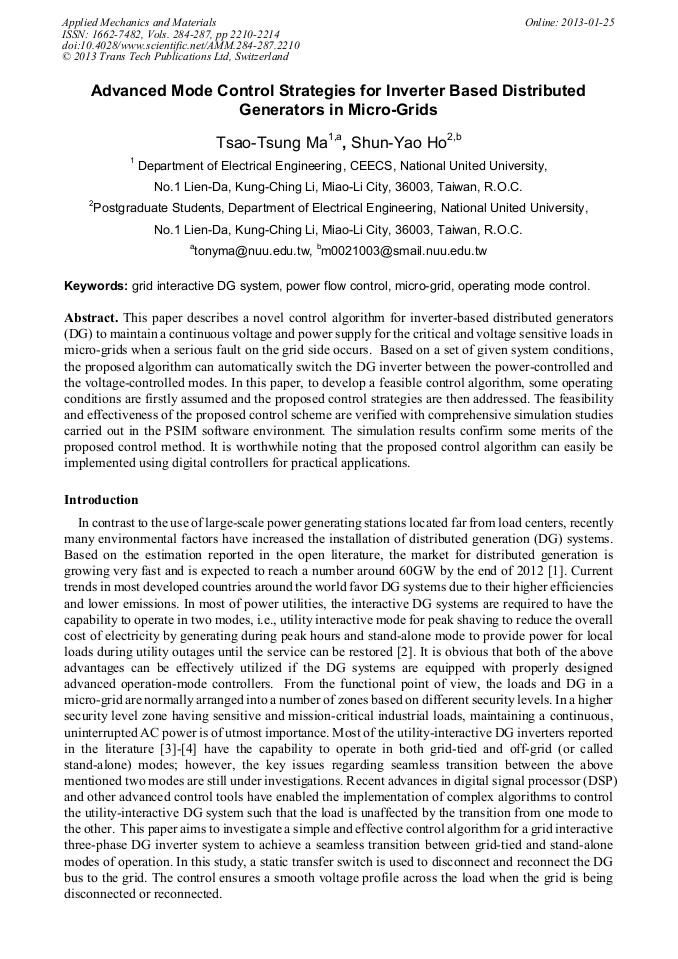

Advanced Mode Control Strategies for Inverter Based Distributed Generators in Micro-Grids

Abstract:

This paper describes a novel control algorithm for inverter-based distributed generators (DG) to maintain a continuous voltage and power supply for the critical and voltage sensitive loads in micro-grids when a serious fault on the grid side occurs. Based on a set of given system conditions, the proposed algorithm can automatically switch the DG inverter between the power-controlled and the voltage-controlled modes. In this paper, to develop a feasible control algorithm, some operating conditions are firstly assumed and the proposed control strategies are then addressed. The feasibility and effectiveness of the proposed control scheme are verified with comprehensive simulation studies carried out in the PSIM software environment. The simulation results confirm some merits of the proposed control method. It is worthwhile noting that the proposed control algorithm can easily be implemented using digital controllers for practical applications.

• Periodical: Applied Mechanics and Materials (Volumes 284-287)
• Pages: 2210-2214
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.284-287.2210
• Online since: January 2013
• Authors: Tsao Tsung Ma, Shun Yao Ho
• Keywords: Grid Interactive DG System, Microgrids (MGs), Operating Mode Control, Power Flow Control

References

[1] L.R. Coles, S.W. Chapel, J.J. Iamucci, IEEE Transactions on Energy Conversion, Vol. 10, 1 (1995).

[2] A. Cocconi, S. cuk and R.D. Middlebrook, Power Conversion International, Vol. 2, 1 (1984).

[3] H. Watanabe, T. Shimizu and G. Kimura, A Novel Utility Interactive Photovoltaic Inverter with Generation Control Circuit, Proceedings of Annual Conference of the IEEE Industrial Electronics Society, Vol. 1 (1998).

DOI: 10.1109/iecon.1998.724182

[4] N. Kikuchi, S. Shigeeda, H. Watanabe, T. Ohnishi and F. Harashima, Single Phase Amplitude Modulation Inverter for Utility Interaction Photovoltaic System, Proceedings of the 25th Annual Conference of the IEEE Industrial Electronics Society, Vol. 1 (1999).

DOI: 10.1109/iecon.1999.822228

[5] R. Majumder, A. Ghosh, G. Ledwich, F. Zare, IEEE Transactions on Power Systems, Vol. 25, 2 (2010).

[6] Chien-Liang Chen, Yubin Wang, Jih-Sheng Lai, Yuang-Shung Lee, D. Martin: IEEE Transactions on Power Electronics, Vol. 25, 1 (2010).

DOI: 10.1109/tpel.2009.2025864

[7] H. Nikkhajoei, R.H. Lasseter, IEEE Transactions on Power Delivery, Vol. 24, (2009).

[8] R.H. Lasseter, A Akhil, C. Marnay, J Stephens, J Dagle, R Guttromson, A. Meliopoulous, R Yinger, and J. Eto, The CERTS Microgrid Concept, White paper for Transmission Reliability Program, Office of Power Technologies, U.S. Department of Energy, April (2002).

DOI: 10.2172/799644

[9] R. H. Lasseter, P. Piagi, Microgrid, A Conceptual Solution, Proceedings of the 35th PESC, Aachen, Germany, Vol. 1 (2004).

[10] N. Jayawarna, M. Lorentzou, S. Papathanassiou, Review of Earthing in a Microgrid, DRAFT Issue No 1, MicroGrids project Deliverable of WPE, Vol. 1, (2004).
