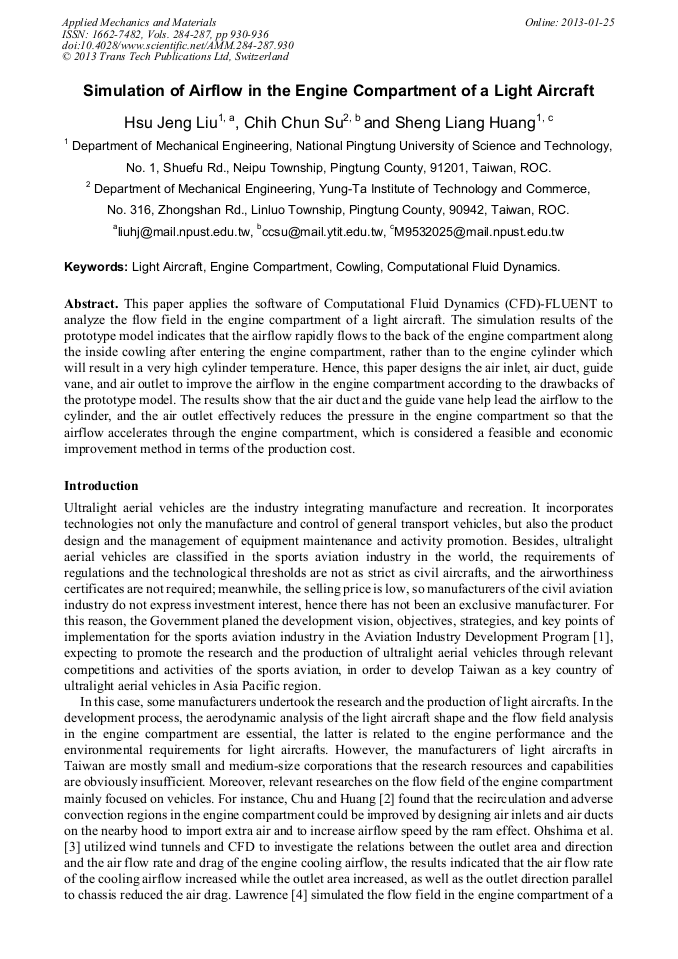

Simulation of Airflow in the Engine Compartment of a Light Aircraft

Abstract:

This paper applies the software of Computational Fluid Dynamics (CFD)-FLUENT to analyze the flow field in the engine compartment of a light aircraft. The simulation results of the prototype model indicates that the airflow rapidly flows to the back of the engine compartment along the inside cowling after entering the engine compartment, rather than to the engine cylinder which will result in a very high cylinder temperature. Hence, this paper designs the air inlet, air duct, guide vane, and air outlet to improve the airflow in the engine compartment according to the drawbacks of the prototype model. The results show that the air duct and the guide vane help lead the airflow to the cylinder, and the air outlet effectively reduces the pressure in the engine compartment so that the airflow accelerates through the engine compartment, which is considered a feasible and economic improvement method in terms of the production cost.

• Periodical: Applied Mechanics and Materials (Volumes 284-287)
• Pages: 930-936
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.284-287.930
• Online since: January 2013
• Authors: Hsu Jeng Liu, Chih Chun Su, Sheng Liang Huang
• Keywords: Computational Fluid Dynamics (CFD), Cowling, Engine Compartment, Light Aircraft

References

[1] Information on http://proj.moeaidb.gov.tw/casid/editor_doc/editor_docview.asp?id=63

[2] S. Chu and L.C. Huang: The Chinese Journal of Mechanics Vol. 6 (1990), p.61 (In Chinese)

[3] T. Ohshima, K. Hamatani, M. Ninoyu and K. Nakagawa: JSAE Review Vol. 19 (1998), p.137

[4] V. Lawrence: 10th International Mobility Technology Congress and Exhibition, Sao Paulo, Brazil, November 19-22, SAE Technical Paper 2001-01-3800 (2001)

[5] T.P. Nobel, and S.K. Jain: SAE World Congress, Detroit, Michigan, March 4-7, SAE Technical Paper 2002-01-1027 (2002)

[6] C.R. Siqueira, M. Jokuszies, M.R. Lima and P. Vatavuk: 11th International Mobility Technology Congress and Exhibition, Sao Paulo, Brazil, November 19-21, SAE Technical Paper 2002-01-3453 (2002)

DOI: 10.4271/2002-01-3453

[7] E.A. Costa: 12th International Mobility Technology Congress and exhibition, Sao Paulo, Brazil, November 18-20, SAE Technical Paper 2003-01-3577 (2003)

[8] F. Fortunato, F. Damiano, L.D. Matteo and P. Oliva: Vehicle Thermal Management Systems Conference and Exhibition, Toronto, Canada, May 10-12, SAE Technical Paper 2005-01-2046 (2005)

[9] A. Alajbegovic, R. Sengupta and W. Jansen: Commercial Vehicle Engineering Congress and Exhibition, Chicago, Illinois, October 31-November 2, SAE Technical Paper 2006-01-3478 (2006)

[10] Y. Xie, J. Yu and H. Gao: SAE International Powertrains, Fuels and Lubricants Congress, Shanghai, China, June 23-25, SAE Technical Paper 2008-01-1820 (2008)
