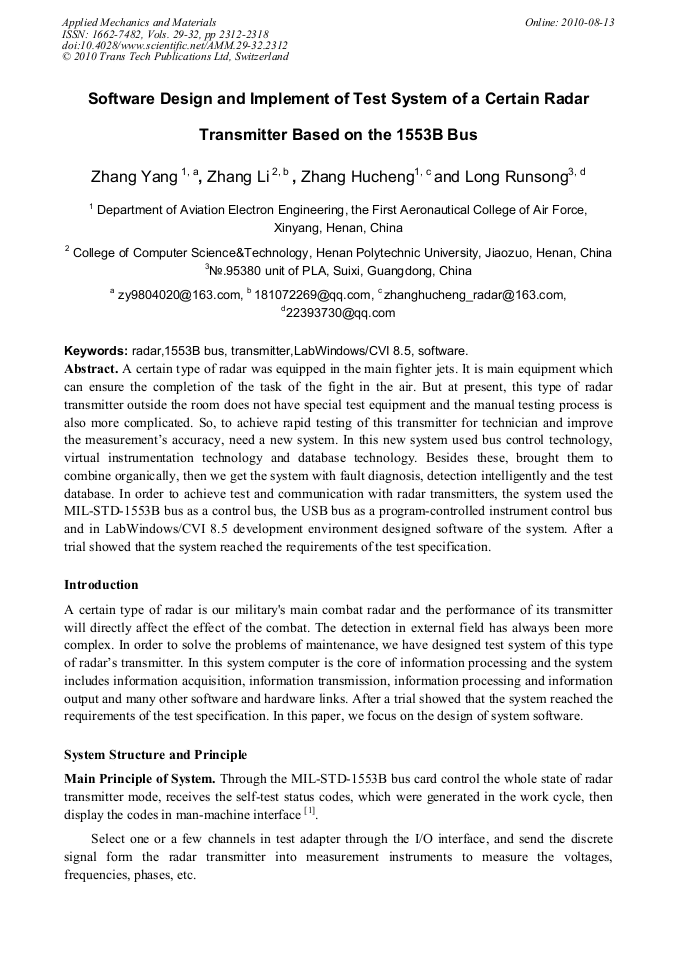

Software Design and Implement of Test System of a Certain Radar Transmitter Based on the 1553B Bus

Abstract:

A certain type of radar was equipped in the main fighter jets. It is main equipment which can ensure the completion of the task of the fight in the air. But at present, this type of radar transmitter outside the room does not have special test equipment and the manual testing process is also more complicated. So, to achieve rapid testing of this transmitter for technician and improve the measurement’s accuracy, need a new system. In this new system used bus control technology, virtual instrumentation technology and database technology. Besides these, brought them to combine organically, then we get the system with fault diagnosis, detection intelligently and the test database. In order to achieve test and communication with radar transmitters, the system used the MIL-STD-1553B bus as a control bus, the USB bus as a program-controlled instrument control bus and in LabWindows/CVI 8.5 development environment designed software of the system. After a trial showed that the system reached the requirements of the test specification.

• Periodical: Applied Mechanics and Materials (Volumes 29-32)
• Pages: 2312-2318
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.29-32.2312
• Online since: August 2010
• Authors: Yang Zhang, Li Zhang, Hu Cheng Zhang, Run Song Long
• Keywords: 1553B Bus, LabWindows/CVI 8.5, Radar, Software, Transmitter

References

[1] Mifdaoui Ahlem, Frances Fabrice and Fraboul Christian: Full duplex switched ethernet for next generation 1553B, -based applications, in Proc. 13th IEEE Real-Time and Embedded Technology and Applications Symposium( 2007), pp.45-56.

DOI: 10.1109/rtas.2007.13

[2] Technical Manual of a certain type of radar，Internal information , unpublished.

[3] Yang Duwei, Zhou Jianzhong and Zhan Lei : Implementation of communication board based on 1553B bus, in Proc. 8th International Conference on Electronic Measurement and Instruments(ICEMI) (2007) , pp.1837-1840.

DOI: 10.1109/icemi.2007.4350582

[4] Srinath, N.K., Ramakanthkumar, P. and Prabhushankar, G.: Target detection and offline analysis of RADAR data from MIL-STD-1553B, WSEAS Transactions on Communications, v 7, n 5, (2008), pp.481-489.

DOI: 10.1109/adcom.2006.4289974

[5] Beranek, Mark : Digital avionics fiber optic link interface control document standardization, in Proc. IEEE Avionics, Fiber-Optics and Photonics Technology Conference(2009), pp.46-47.

DOI: 10.1109/avfop.2009.5342643

[6] Zhang Yang, Zhang Li, Wu Yifeng: Design of Oscillograph Drivers Based on IVI Model , Microcomputer Information, vol. 23(2007), pp.165-167.

[7] Mueller Joseph E. : Using IVI I- . -ET and the upcoming IVI . -ET standard, in Proc. AUTOTESTCON 2005-IEEE Systems Readiness Technology Conference: Technology - Powering the Next Generation of Test(2005), pp.744-750.

DOI: 10.1109/autest.2005.1609229

[8] Zhang Yang, Zhang Li, Chen Guodong, Test system of some aerial electro equipment application with IVI instrument-driver, Yi Qi Yi Biao Xue Bao, vol. 28(2007), pp.423-426.

[9] Zhao Dahai, Zhou Xiaogang, Hui Junjun and Qian Peixian : The Design of Remote -etwork Control System based on LabWindows/CVI Platform, Fire Control and Command Control, Vo l. 30, No. 8(2005), pp.64-67.

[10] Miao Manxiang: Database visiting method and application in electronic power monitor system by using LabSQL in virtual instrument LabVIEW, in Proc. 2010 International Conference on Information Technology for Manufacturing Systems(2010).

DOI: 10.4028/www.scientific.net/amm.20-23.110

[11] Zhang Li, Yu ZhenWei, Zhang Yang: Adaptive-weighted clustering algorithm based on flow balance for mobile ad hoc networks, Xi'an Dianzi Keji Daxue Xuebao/Journal of Xidian University, vol. 35, n. 3(2008), pp.572-576.
