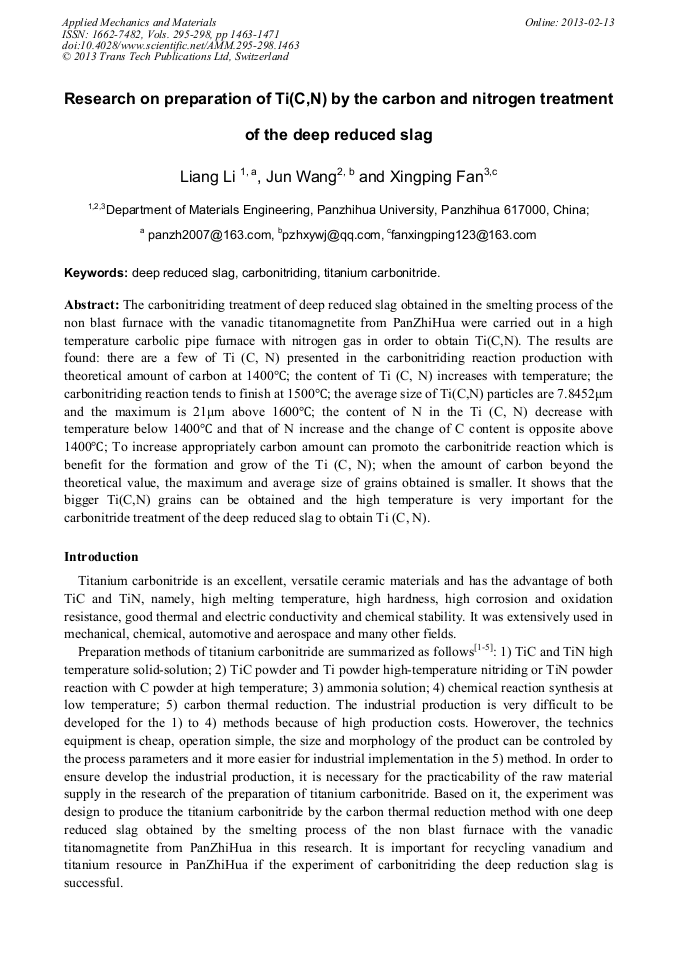

Research on Preparation of Ti(C,N) by the Carbon and Nitrogen Treatment of the Deep Reduced Slag

Abstract:

The carbonitriding treatment of deep reduced slag obtained in the smelting process of the non blast furnace with the vanadic titanomagnetite from PanZhiHua were carried out in a high temperature carbolic pipe furnace with nitrogen gas in order to obtain Ti(C,N). The results are found: there are a few of Ti (C, N) presented in the carbonitriding reaction production with theoretical amount of carbon at 1400°C; the content of Ti (C, N) increases with temperature; the carbonitriding reaction tends to finish at 1500°C; the average size of Ti(C,N) particles are 7.8452μm and the maximum is 21μm above 1600°C; the content of N in the Ti (C, N) decrease with temperature below 1400°C and that of N increase and the change of C content is opposite above 1400°C; To increase appropriately carbon amount can promoto the carbonitride reaction which is benefit for the formation and grow of the Ti (C, N); when the amount of carbon beyond the theoretical value, the maximum and average size of grains obtained is smaller. It shows that the bigger Ti(C,N) grains can be obtained and the high temperature is very important for the carbonitride treatment of the deep reduced slag to obtain Ti (C, N).

• Periodical: Applied Mechanics and Materials (Volumes 295-298)
• Pages: 1463-1471
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.295-298.1463
• Online since: February 2013
• Authors: Liang Li, Jun Wang, Xing Ping Fan
• Keywords: Carbonitriding, Deep Reduced Slag, Titanium Carbonitride

References

[1] LI wei, JIANG ming-xue, XIE bi-qiang, LU hong-xian. Synthesis Technologies and Application of Titanium Carbonitrie[J]. Shandong Ceramics, 2009, 32(3): 18-21.

[2] Li Xinghua, Wang Xuesong, Liu Zhilu, Zhang Jiangping. The New Direction of Comprehensive Utilization of High Titanium-bearing Slag[J]. Iron Steel Vanadium Titanium, 2009, 30(3): 10-16.

[3] Zhang Jianting, Chen Bi. Occurrence and Recycling of Main Elements in Panxi Vanadium-titanium Magnetite[J]. Conservation and Utilization of mineral resources. 2008(5): 38-41.

[4] Zhou Jianxin, Yang Cheng, PengFuchang, Zhou Jianguo. Progress in process and Technology for Titanium Extraction from V-Bearing Titanomagnetite Ore in Panzhihua-xichang Region[J]. Metal Mine. 2007(373): 6-9.

[5] Deng Jun, Xue Xun, Liu Gongguo. Current situation and development of comprehensive utilization of vanadium-bearing titanomagnetite at PANGANG[J]. Journal of Materials and Metallurgy . 2007, 6(2): 83-86.

[6] Yi xiaoxiang, Li Yawie, Yang Dabing. Preparation of Titanium Carbonitride from Panzhihua Ti-bearing Blast Furnace Slag Using Magnetic Separation[J]. Iron Steel Vanadium Titanium. 2008, 29(4); 22-25.

[7] Liang Y J, Che Y C. Thermodynamic Data Notebook of Inorganics[M]. Shenyang: Northeast University Press, 1993：449- 479.

[8] Pangfusheng, Tang Aitao, Li Kui. Carbon nitrided titanium and composite materials reaction synthesis[M]. Chongqing: Chongqing university press. (2005).

[9] Fang Min xian, Peng Jinhui, Chen Housheng, Chen Deming. A Thermodynamics-Based Analysis of Making Titanium Carbonitride Though Carbon Thermal Reduction[J]. Journal of Kunming University of Science and Technology(Science and Technology). 2006, 31(6): 6-12.

[10] Li Xikun, Xiu zhimeng, Sun Xundong, Zheng Longxi. Synthesis of titanium carbonitride powders[J]. Power Metallurgy industry, 2004, 14(1)：18-21.

[11] Cai zhiyong, Cao shunhua, Xie Zhan, Zou Shimin, Li Chunxiang. Influence of temperature on synthetic Ti(C, N) whisker by carbon thermal reduction method[J]. Materials Science and Engineering of Powder Metallurgy，2007，12(3)：151-155.

[12] Qi Jingyu. Modern analysis determination technique[M]. Shanghai: Tongji university press, 2006; 115-126.

[13] Chen Bangqiao Ye Jinwen Liu Ying He Xu Tu Mingjing . Preparation of Titanium Carbonitride Powder by Carbothermal Reduction Method[J]. Cemented Carbide, 2009, 26(2): 98-101.

[14] Zhong Hua, Determination of Nitrogen Content in Ti(CN) by Chemical Method[J]. Iron Steel Vanadium Titanium, 2005, 26(1): 65-67.
