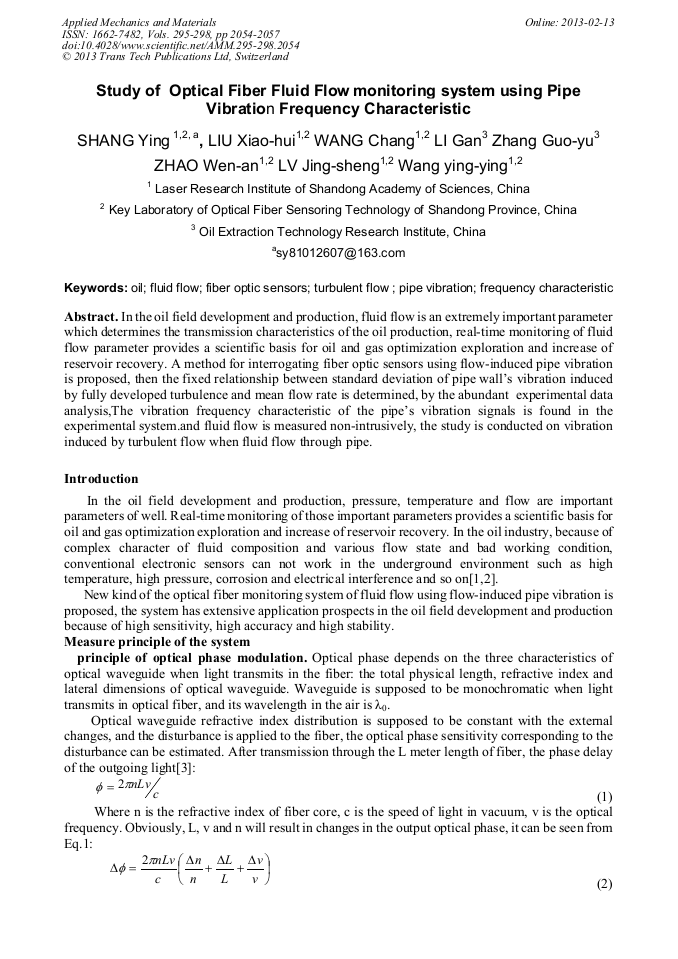

Study of Optical Fiber Fluid Flow Monitoring System Using Pipe Vibration Frequency Characteristic

Abstract:

In the oil field development and production, fluid flow is an extremely important parameter which determines the transmission characteristics of the oil production, real-time monitoring of fluid flow parameter provides a scientific basis for oil and gas optimization exploration and increase of reservoir recovery. A method for interrogating fiber optic sensors using flow-induced pipe vibration is proposed, then the fixed relationship between standard deviation of pipe wall’s vibration induced by fully developed turbulence and mean flow rate is determined, by the abundant experimental data analysis,The vibration frequency characteristic of the pipe’s vibration signals is found in the experimental system.and fluid flow is measured non-intrusively, the study is conducted on vibration induced by turbulent flow when fluid flow through pipe.

• Periodical: Applied Mechanics and Materials (Volumes 295-298)
• Pages: 2054-2057
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.295-298.2054
• Online since: February 2013
• Authors: Ying Shang, Xiao Hui Liu, Chang Wang, Gan Li, Guo Yu Zhang, Wen An Zhao, Jing Sheng Lv, Ying Ying Wang
• Keywords: Fiber Optic Sensors, Fluid Flow, Frequency Characteristic, Oil, Pipe Vibration, Turbulent Flow

References

[1] LIU Min min , ZHOU FengDU Zhi shun , Application of Optic Fiber Sensors in Petrol Well Logging, OPTICS & OPTOEL ECTRONIC TECHNOLOGY vol. 6(3), pp.18-21, (2008).

[2] Zhang Qian , Qiao Xue guang , Fu Hai wei, Advances in fiber-optic flowmeters, STUDY ON OPTICAL COMMUNICATIONS, vol. 141(3), pp.58-61, (2007).

[3] PENG Shi yu, Study on Fiber Bragg Grating stress sensing, Journal of Hunan Institute of Science and Technology(Natural Sciences), vol. 20(2), pp.36-38, (2007).

[4] Dandridge A, Tvcten A B, Giallorenzi T G, Homodyne demodulation sehemes for fiber optic sensor susing phase generated carrier. IEEE J. QuantumElectron., vol. 18(10)pp.1647-1651, (1982).

DOI: 10.1109/jqe.1982.1071416

[5] ROBERTP, JONATHAND, ALANG. Flow rate measurements using flow induced pipe vibration . Journal of Fluids Engineering, vol. 126, pp.280-285, (2004).

DOI: 10.1115/1.1667882

[6] MATTHEWT, ROBERTPR, DANIELMAYEIS, Experimental and numerical investigation of turbulent flow induced pipe vibration infully developedflow. Review of ScientificInstruments, vol. 7, pp.2393-2041, (2004).
