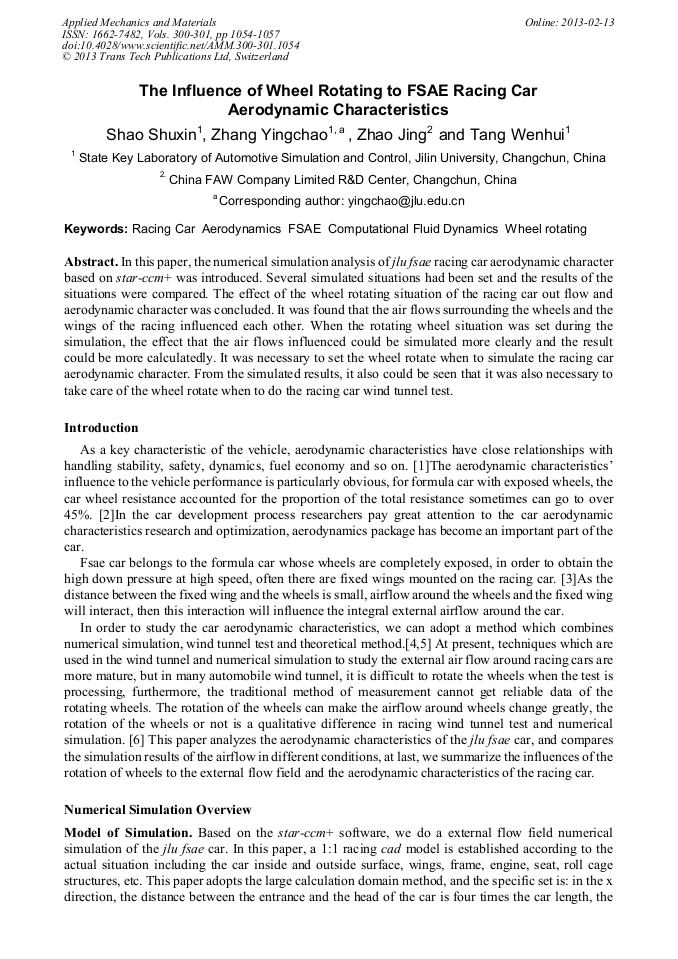

The Influence of Wheel Rotating to FSAE Racing Car Aerodynamic Characteristics

Abstract:

In this paper, the numerical simulation analysis of jlu fsae racing car aerodynamic character based on star-ccm+ was introduced. Several simulated situations had been set and the results of the situations were compared. The effect of the wheel rotating situation of the racing car out flow and aerodynamic character was concluded. It was found that the air flows surrounding the wheels and the wings of the racing influenced each other. When the rotating wheel situation was set during the simulation, the effect that the air flows influenced could be simulated more clearly and the result could be more calculatedly. It was necessary to set the wheel rotate when to simulate the racing car aerodynamic character. From the simulated results, it also could be seen that it was also necessary to take care of the wheel rotate when to do the racing car wind tunnel test.

• Periodical: Applied Mechanics and Materials (Volumes 300-301)
• Pages: 1054-1057
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.300-301.1054
• Online since: February 2013
• Authors: Shu Xin Shao, Ying Chao Zhang, Jing Zhao, Wen Hui Tang
• Keywords: Aerodynamic, Computational Fluid Dynamics (CFD), Fsae, Racing Car, Wheel Rotating

References

[1] Fu Limin. Automobile Aerodynamic [M] Beijing: Mechanical Industry Press, (1998).

[2] William F Milliken, Douglas L Milliken. Race Car Vehicle Dynamics [M]. USA Warrendale: SAE international, (1995).

[3] Joseph Katz. Racing Aerodynamics Designing for Speed [M]. Cambrige Bentley Publisher, (1995).

[4] Scott Wordley, Jeff Saunders. Aerodynamics for Formula SAE: Initial Design and Performance Prediction[C]/SAE paper 2006-01-0806.

DOI: 10.4271/2006-01-0806

[5] Zhang Yingchao, Li Jie, Zhang Zhe. The influence to the test by the parameters of automobile wind tunnel test section size [J]. Journal of JLU(Engineering Edition), 2010-03, 40(2), 346-350.

[6] Zhang Yingchao, Li Jie, Zhang Zhe. Numerical Study on Aerodynamic Characteristics of Isolated Wheel[C]/Proceedings of the 3rd ICMEM International Conference on Mechanical Engineering and Mechanics, (2009).

[7] Zhang Yingchao, Zhang Zhe, Li Jie, Automobile modeling design based on the numerical simulation of aerodynamics [J]. Journal of JLU(Engineering Edition)[J]. 2009-09, 39(S2): 260-263.

[8] Zhang Yingchao, Li Jie, Hu Xingjun, Fu Limin, Numerical simulation for the aerodynamic characteristics of the motorcycle and the driver [J]. automobile engineering, 2009-07, 31(7): 606-608, 645.

[9] A. P. Gaylard,A. J. Baxendale,J. P. Howell. The Use of CFD to Predict the Aerodynamic Characteristics of Simple Automotive Shapes [C]/SAE Paper 980036.

DOI: 10.4271/980036

[10] Wang Fujun. Computational fluid dynamics analysis [M]. Beijing: Tsinghua university press, (2004).
