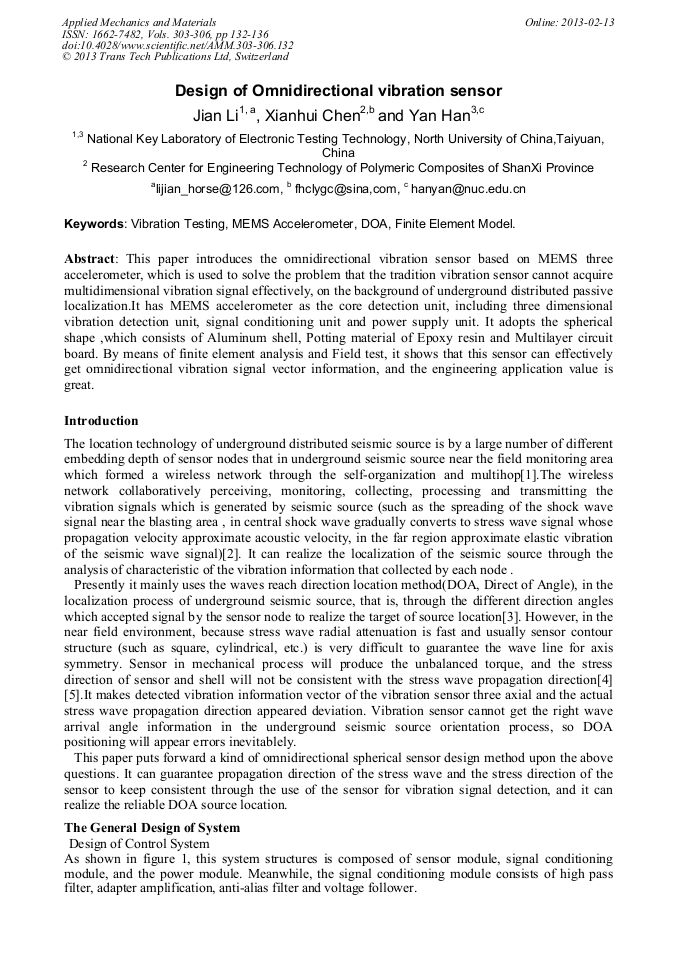

Design of Omnidirectional Vibration Sensor

Abstract:

This paper introduces the omnidirectional vibration sensor based on MEMS three accelerometer, which is used to solve the problem that the tradition vibration sensor cannot acquire multidimensional vibration signal effectively, on the background of underground distributed passive localization.It has MEMS accelerometer as the core detection unit, including three dimensional vibration detection unit, signal conditioning unit and power supply unit. It adopts the spherical shape ,which consists of Aluminum shell、Potting material of Epoxy resin and Multilayer circuit board. By means of finite element analysis and Field test, it shows that this sensor can effectively get omnidirectional vibration signal vector information, and the engineering application value is great.

• Periodical: Applied Mechanics and Materials (Volumes 303-306)
• Pages: 132-136
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.303-306.132
• Online since: February 2013
• Authors: Jian Li, Xian Hui Chen, Yan Han
• Keywords: Direction-of-Arrival (DOA), Finite Element Model (FEM), MEMS Accelerometer, Vibration Testing

References

[1] Yuming Zhang, Ji Zhang, Chunhua Bai, Zuzhao Xiong. The blast vibration testing technology several basic problems , Journal of Blasting, vol. 2, pp.5-8, (2002).

[2] Zhanfang Liu, kai Zhang, Xiao wei Feng, Shijun Yan. About the elastic stress wave three transmission mode , World earthquake engineering, vol. 2, pp.66-71, (2010).

[3] Hongmei Li, Peilong Chen. 3 d multistation direction finding cross localization algorithm and precision analysis , Journal of Command and Control and Simulator. vol. 2, pp.56-59, (2007).

[4] Sen Fu, Xiangwei Kong, Zhe Li, Jianye Li. Many base pure bearing target cross positioning of the nonlinear least squares method , Journal of fire and command control. vol. 8, pp.80-84, (2009).

[5] Mingyu Wang, Yiwu Jiang. Based on the contact Angle of the multistation cross positioning fusion algorithm and error simulation , Journal of fire and command control. vol. 5, pp.74-78, (2010).

[6] Hongle Zhang, Jindong Cao. Used in geophysical exploration of MEMS acceleration sensor , Journal of Transducer and Microsystem Technologies. vol. 12, pp.1-4, (2002).

[7] Sui Xiuwul，Xie Wan，Zhang Guoxion，Fan Yumin. Application of finite element analysis in structure design of cylinder shell resonating density meter, Journal of Seientific Instrument. vol. 29, pp.384-386, (2008).
