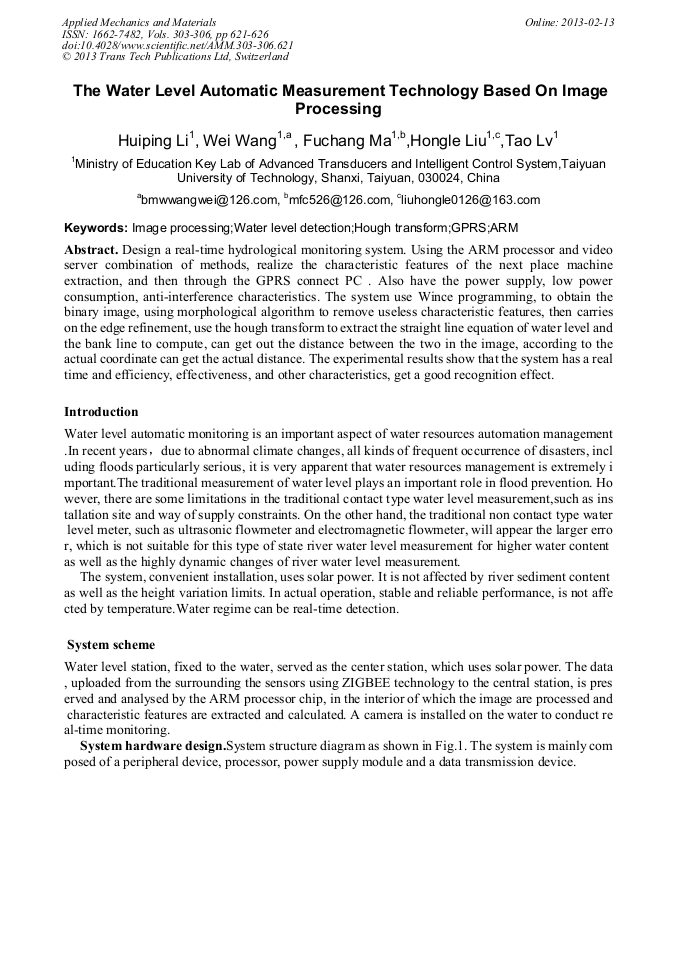

The Water Level Automatic Measurement Technology Based on Image Processing

Abstract:

Design a real-time hydrological monitoring system. Using the ARM processor and video server combination of methods, realize the characteristic features of the next place machine extraction, and then through the GPRS connect PC . Also have the power supply, low power consumption, anti-interference characteristics. The system use Wince programming, to obtain the binary image, using morphological algorithm to remove useless characteristic features, then carries on the edge refinement, use the hough transform to extract the straight line equation of water level and the bank line to compute, can get out the distance between the two in the image, according to the actual coordinate can get the actual distance. The experimental results show that the system has a real time and efficiency, effectiveness, and other characteristics, get a good recognition effect.

• Periodical: Applied Mechanics and Materials (Volumes 303-306)
• Pages: 621-626
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.303-306.621
• Online since: February 2013
• Authors: Hui Ping Li, Wei Wang, Fu Chang Ma, Hong Le Liu, Tao Lv
• Keywords: ARM, General Packet Radio Service (GPRS), Hough Transform (HT), Image Processing, Water Level Detection

References

[1] Chang Faliang，Ma Sile，Qiao Yizheng. Real-time HOUGH transformation detection for dynamic line edge and its application in the flow measurement[J]. Control and Decision, 2004，(12). (in Chinese).

[2] Zhang Defeng. MATLAB digital image processing [M]. Beijing: Mechanical Industry Press, (2009).

[3] REN Ming-wu，YANG Wan-kou， WANG Huan，et al. New algorithm of automatic water level measurement based on image processing[J], Computer Engineering and Applications, 2007. (22)(in Chinese).

[4] Zhu Leqing，Zhang Sanyuan，Xing Rui. Palm print identification system based on ARM and WinCE[J]. Chinese Journal of Scientific Instrument, 2009, (22)(in Chinese).

[5] GUO Siyu，ZHAI Wenjuan，TANG Qiu，et al. Combining the Hough Transform and an Improved Least Squares Method for Line Detection[J]. Computer Science, 2012, (4)(in Chinese).

[6] JIANG Xiaoyu，HUA Zaijun. Water-Level auto reading based on image processing[J], Electronic Design Engineering2011，(23)(in Chinese）.

[7] Cheng Yuan，Design and Study of Hydrologic Data Acquisition System Based on ARM and GPRS[D]. Taiyuan unive of technology，2011, China.

[8] Daniel Walsha and AdrianE. Raftery, Accurate and efficient curve detection in images: the importance sampling Hough transform, Pattern Recognition, Oxford, vol. 35, pp.1421-1431, Jan. (2004).

DOI: 10.1016/s0031-3203(01)00114-5
