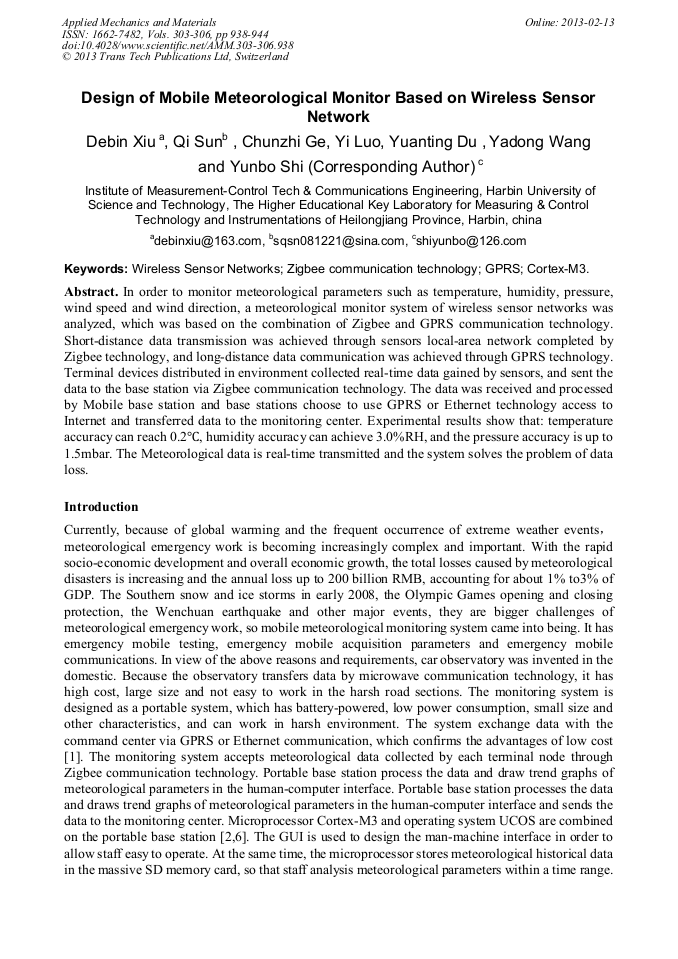

Design of Mobile Meteorological Monitor Based on Wireless Sensor Network

Abstract:

In order to monitor meteorological parameters such as temperature, humidity, pressure, wind speed and wind direction, a meteorological monitor system of wireless sensor networks was analyzed, which was based on the combination of Zigbee and GPRS communication technology. Short-distance data transmission was achieved through sensors local-area network completed by Zigbee technology, and long-distance data communication was achieved through GPRS technology. Terminal devices distributed in environment collected real-time data gained by sensors, and sent the data to the base station via Zigbee communication technology. The data was received and processed by Mobile base station and base stations choose to use GPRS or Ethernet technology access to Internet and transferred data to the monitoring center. Experimental results show that: temperature accuracy can reach 0.2°C, humidity accuracy can achieve 3.0%RH, and the pressure accuracy is up to 1.5mbar. The Meteorological data is real-time transmitted and the system solves the problem of data loss.

• Periodical: Applied Mechanics and Materials (Volumes 303-306)
• Pages: 938-944
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.303-306.938
• Online since: February 2013
• Authors: De Bin Xiu, Qi Sun, Chun Zhi Ge, Yi Luo, Yuan Ting Du, Ya Dong Wang, Yun Bo Shi
• Keywords: Cortex-M3, General Packet Radio Service (GPRS), Wireless Sensor Network (WSN), Zigbee Communication Technology

References

[1] JEICH MAR. The Complementary Use of 3G WCDMA and GSM/GPRS Cellular Radio Networks[J]. Wireless Personal Communications, 2009, 43(2): 511-531.

DOI: 10.1007/s11277-007-9247-6

[2] Franc H. ARM-Cortex-M3 Microcontroller fuzzy position control on an automatic door test bed[C]. 2010 IEEE 19th International Workshop on Robotics in Alpe-Adria-Danube Region, Budapest, 2010: 417-418.

DOI: 10.1109/raad.2010.5524549

[3] Liu X C, Liu X L. The Research on Intelligent Humidity Measurement System [J]. IEEE Transactions on Information Technology and Computer Science, 2010, 195-207.

[4] GUO J Y, et al . Research on reliability grading acceleration test of Pt film temperature sensor [J]. Chinese Journal of Scientific Instrument, 2009, 6: 1029-1030. In Chinese.

[5] HUANG X B. Design and implementation of wireless sensor network gateway based on GPRS [J]. Automation Applications, 2010. 7: 45-47.

[6] Jean J. Labrosse. Microc/os-ii The Real Time Kernel Second Edition[M]: Beijing University of Aeronautics and Astronautics Press, 2003, 5: 34-72.

[7] Lei Huo and Shende Liu. ZigBee Technology and Its Application [M]. Beijing University of Aeronautics and Astronautics Press, 2009, 9: 52-79.

[8] Xiwu Lv, YanZhao. Design and implementation of wireless monitoring system based on ZigBee [J]. Computer Engineering, 2010, 36(5): 243-244.

[9] Qingzhi Zhang, GUO Tao, AIDA B. Design of real-time temperature and humidity measurement system based on SHT21 sensor[C]. Computer Application and System Modeling (ICCASM), 2010 International Conference, Taiyuan, China, 22-24 Oct. 2010, 14: 14-32.

DOI: 10.1109/iccasm.2010.5622428

[10] SANEEI MOHSEN, AFZALI-KUSHA ALI. Two High-performance and Low-power Serial Communication Interfaces for On-chip Interconnects [J]. Canadian Journal of Electrical and Computer Engineering, 2009, 34(1): 49-56.

DOI: 10.1109/cjece.2009.5291207

[11] ZHAO YAN-BO, YE ZHAO-HUI. A Low Cost GSM/GPRS Based Wireless Home Security System [J]. IEEE Transactions on Consumer Electronics, 2008, 54(2): 567-572.

DOI: 10.1109/tce.2008.4560131
