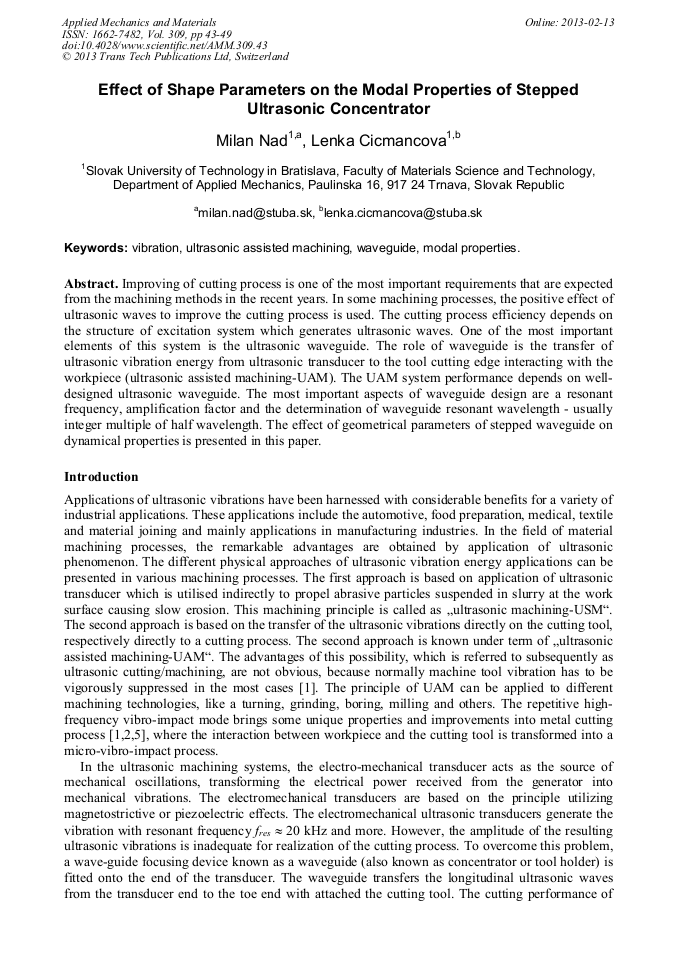

Effect of Shape Parameters on the Modal Properties of Stepped Ultrasonic Concentrator

Abstract:

mproving of cutting process is one of the most important requirements that are expected from the machining methods in the recent years. In some machining processes, the positive effect of ultrasonic waves to improve the cutting process is used. The cutting process efficiency depends on the structure of excitation system which generates ultrasonic waves. One of the most important elements of this system is the ultrasonic waveguide. The role of waveguide is the transfer of ultrasonic vibration energy from ultrasonic transducer to the tool cutting edge interacting with the workpiece (ultrasonic assisted machining-UAM). The UAM system performance depends on well-designed ultrasonic waveguide. The most important aspects of waveguide design are a resonant frequency, amplification factor and the determination of waveguide resonant wavelength - usually integer multiple of half wavelength. The effect of geometrical parameters of stepped waveguide on dynamical properties is presented in this paper.

• Periodical: Applied Mechanics and Materials (Volume 309)
• Pages: 43-49
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.309.43
• Online since: February 2013
• Authors: Milan Nad, Lenka Cicmancova
• Keywords: Modal Properties, Ultrasonic Assisted Machining, Vibration, Waveguide

References

[1] Astashev, V. K., Babitsky, V. I. Ultrasonic Processes and Machines - Dynamics, Control and Applications, Springer-Verlag Berlin Heidelberg, (2007).

[1] Babitsky, V. I., Kalashnikov, A. N., Meadows, A., Wijesundara, A.A.H.P. Ultrasonically assisted turning of aviation materials. Journal of Materials Process. Technology, 132, (2003), 157-167.

DOI: 10.1016/s0924-0136(02)00844-0

[2] Dekys, V., Saga, M., Zmindak, M. Dynamics and Reliability of Mechanical Systems. VTS University of Zilina, Zilina, (2004). (in slovak).

[3] Meirovitch, L. Analytical Methods in Vibrations. Macmillan Ltd., USA, (1967).

[4] Nad, M., Cicmancova, L. The effect of the shape parameters on modal properties of ultrasonic horn design for ultrasonic assisted machining. Proceedings of the 8th International Conference DAAAM-Industrial Engineering, Tallinn-Estonia, (2012).

[5] Nánási, T. The effect of non-conservative load on the stability limits of compressed beams. Acta Mechanica Slovaca, 11, (2007), No. 4-A, 311-316. (in slovak).

[6] Nánási, T. Boundary conditions and vibration of slender beams. In: Proceedings of National Conference with International Participation - Engineering Mechanics 2007, (2007), Svratka, Czech Republic, 1-8.
