Design of Optical Fiber MEMS Displacement Sensor

Xiao Long Li; Jian Gan Wang; Ya Ming Wu

doi:10.4028/www.scientific.net/AMM.312.766

Paper Titles

Design of Sustainable Energy Supply for Mechanical Exoskeleton Based on Fuel Cell
p.749

Design of Carbon Monoxide Monitor System Based on Lonworks Technology
p.753

New Portable Chain Safety Protection Device
p.757

Control and Regulation of Following Pressure Regulating Device in Offset Press
p.762

Design of Optical Fiber MEMS Displacement Sensor
p.766

Large-Scale Data Classification Based on Ball Vector Machine
p.771

Application of PLC Technology in the Control System of Plate Shearing Machine
p.777

Design of Universal Control System Development Platform for Small and Medium-Sized Packaging Machinery and Equipment
p.782

Modeling and Simulation of Sensorless Control of BLDC Motor Based on Submersible Pump
p.786

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 312Design of Optical Fiber MEMS Displacement Sensor

Design of Optical Fiber MEMS Displacement Sensor

Abstract:

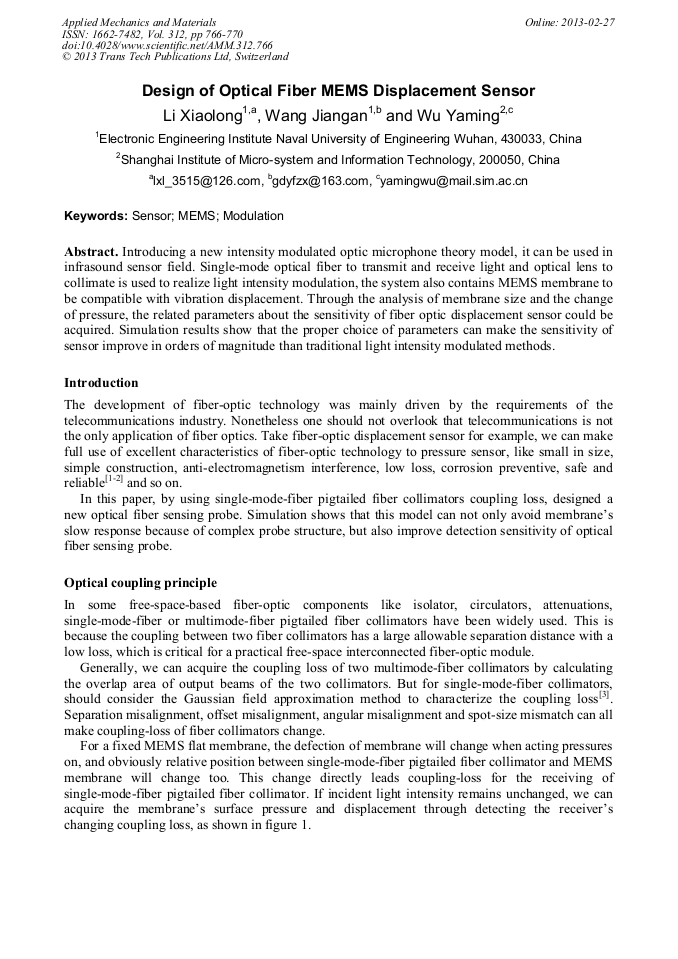

Introducing a new intensity modulated optic microphone theory model, it can be used in infrasound sensor field. Single-mode optical fiber to transmit and receive light and optical lens to collimate is used to realize light intensity modulation, the system also contains MEMS membrane to be compatible with vibration displacement. Through the analysis of membrane size and the change of pressure, the related parameters about the sensitivity of fiber optic displacement sensor could be acquired. Simulation results show that the proper choice of parameters can make the sensitivity of sensor improve in orders of magnitude than traditional light intensity modulated methods.
