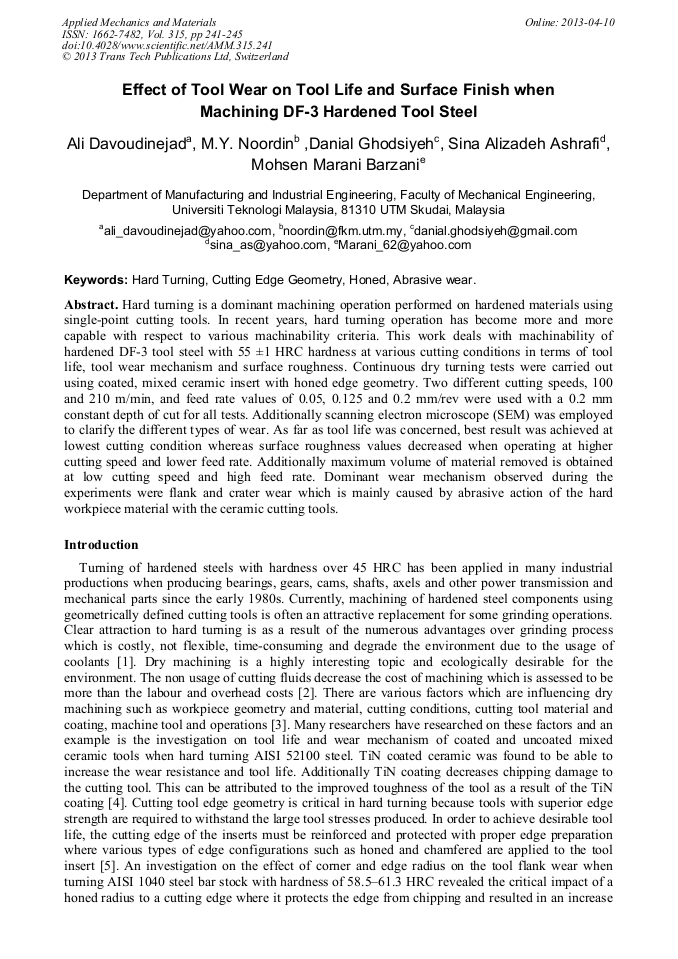

Effect of Tool Wear on Tool Life and Surface Finish when Machining DF-3 Hardened Tool Steel

Abstract:

Hard turning is a dominant machining operation performed on hardened materials using single-point cutting tools. In recent years, hard turning operation has become more and more capable with respect to various machinability criteria. This work deals with machinability of hardened DF-3 tool steel with 55 ±1 HRC hardness at various cutting conditions in terms of tool life, tool wear mechanism and surface roughness. Continuous dry turning tests were carried out using coated, mixed ceramic insert with honed edge geometry. Two different cutting speeds, 100 and 210 m/min, and feed rate values of 0.05, 0.125 and 0.2 mm/rev were used with a 0.2 mm constant depth of cut for all tests. Additionally scanning electron microscope (SEM) was employed to clarify the different types of wear. As far as tool life was concerned, best result was achieved at lowest cutting condition whereas surface roughness values decreased when operating at higher cutting speed and lower feed rate. Additionally maximum volume of material removed is obtained at low cutting speed and high feed rate. Dominant wear mechanism observed during the experiments were flank and crater wear which is mainly caused by abrasive action of the hard workpiece material with the ceramic cutting tools.

• Periodical: Applied Mechanics and Materials (Volume 315)
• Pages: 241-245
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.315.241
• Online since: April 2013
• Authors: Ali Davoudinejad, M.Y. Noordin, Danial Ghodsiyeh, Sina Alizadeh Ashrafi, Mohsen Marani Barzani
• Keywords: Abrasive Wear, Cutting Edge Geometry, Hard Turning, Honed

References

[1] W. Grzesik, T. Wanat. Comparative assessment of surface roughness produced by hard machining with mixed ceramic tools including 2D and 3D analysis. Journal of Materials Processing Technology 169 (2005) 364–371.

DOI: 10.1016/j.jmatprotec.2005.04.080

[2] P.S. Sreejith, B.K.A. Ngoi. Dry machining: Machining of the future. Journal of Materials Processing Technology 101 (2000) 287-291.

DOI: 10.1016/s0924-0136(00)00445-3

[3] M.Y. Noordin, V.C. Venkatesh, S. Sharif. Dry turning of tempered martensitic stainless tool steel using coated cermet and coated carbide tools. Journal of Materials Processing Technology 185 (2007) 83–90.

DOI: 10.1016/j.jmatprotec.2006.03.137

[4] K. Aslantas, I. Ucun, A. Cicek. Tool life and wear mechanism of coated and uncoated Al2O3/TiCN mixed ceramic tools in turning hardened alloy steel. Wear (2011), 1101.

DOI: 10.1016/j.wear.2011.11.010

[5] Viktor P. Astakhov. Geometry of Single-point Turning Tools and Drills. Springer-Verlag London Limited 2010. P162.

[6] William J. Endres, Raja K. Kountanya. The Effects of Corner Radius and Edge Radius on Tool Flank Wear. Journal of Manufacturing Processes. (2002) Vol. 4/No. 2.

DOI: 10.1016/s1526-6125(02)70135-7

[7] Y. Kevin Chou, Hui Song. Tool nose radius effects on finish hard turning. Journal of Materials Processing Technology 148 (2004) 259–268.

DOI: 10.1016/j.jmatprotec.2003.10.029

[8] Gabriel C. Benga, Alexandre M. Abrao. Turning of hardened 100Cr6 bearing steel with ceramic and PCBN cutting tools. Journal of Materials Processing Technology 143–144 (2003) 237–241.

DOI: 10.1016/s0924-0136(03)00346-7

[9] Radu Pavel, Ioan Marinescu, Mick Deis, Jim Pillar. Effect of tool wear on surface finish for a case of continuous and interrupted hard turning. Journal of Materials Processing Technology 170 (2005) 341–349.

DOI: 10.1016/j.jmatprotec.2005.04.119
