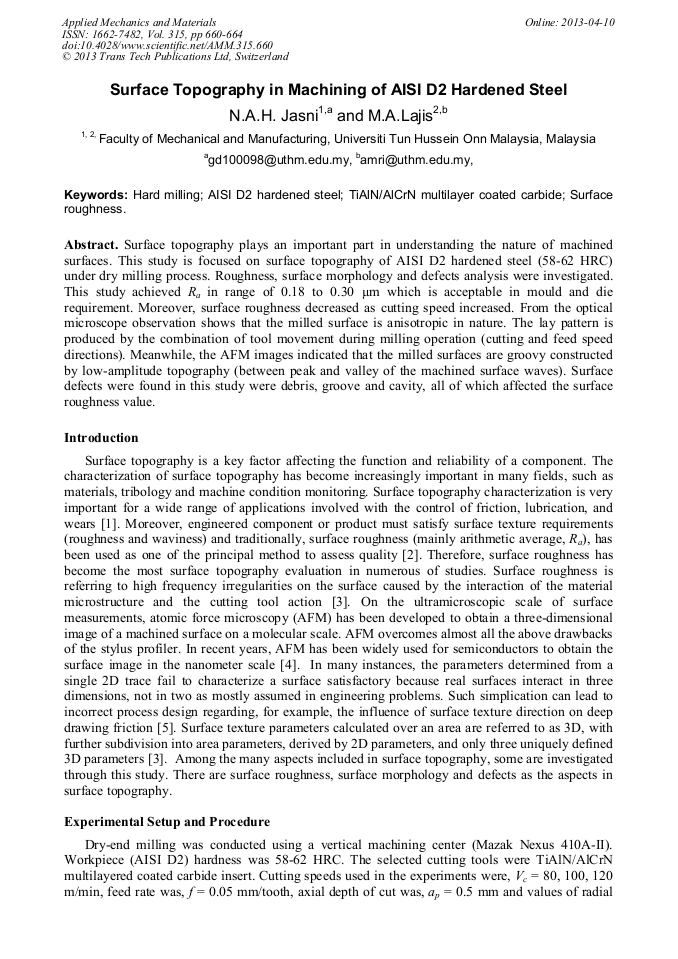

Surface Topography in Machining of AISI D2 Hardened Steel

Abstract:

Surface topography plays an important part in understanding the nature of machined surfaces. This study is focused on surface topography of AISI D2 hardened steel (58-62 HRC) under dry milling process. Roughness, surface morphology and defects analysis were investigated. This study achieved R_a in range of 0.18 to 0.30 µm which is acceptable in mould and die requirement. Moreover, surface roughness decreased as cutting speed increased. From the optical microscope observation shows that the milled surface is anisotropic in nature. The lay pattern is produced by the combination of tool movement during milling operation (cutting and feed speed directions). Meanwhile, the AFM images indicated that the milled surfaces are groovy constructed by low-amplitude topography (between peak and valley of the machined surface waves). Surface defects were found in this study were debris, groove and cavity, all of which affected the surface roughness value.

• Periodical: Applied Mechanics and Materials (Volume 315)
• Pages: 660-664
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.315.660
• Online since: April 2013
• Authors: N.A.H. Jasni, Mohd Amri Lajis
• Keywords: AISI D2 Hardened Steel, Hard Milling, Surface Roughness (SR), TiAlN/AlCrN Multilayer Coated Carbide

References

[1] C.Q. Yuan, Z. Peng, X.P. Yan & X.C. Zhou, Surface roughness evolutions in sliding wear process, Wear. 265 (2008) 341–348.

DOI: 10.1016/j.wear.2007.11.002

[2] D.A. Axinte & R.C. Dewes, Surface integrity of hot work steel after high speed milling-experimental data and empirical models, Journal of Materials Processing Technology. 127 (2002) 325-335.

DOI: 10.1016/s0924-0136(02)00282-0

[3] W. Grzesik. Advanced Machining Processes of Metallic Materials: Theory, Modelling and Applications. First edition, Oxford, UK: Elsevier (2008).

[4] R.W. Phillips, Surface Coating Technology. 68–69 (1994) 770.

[5] B. Griffiths, Manufacturing Surface Technology: Surface Integrity and Functional Performance, London: Penton Press (2001).

[6] M.M. El-Khabeery, S.M. Saleh & M.R. Ramadan, Some observations of surface integrity of deep drilling holes, Wear. 142 (1991) 331–349.

DOI: 10.1016/0043-1648(91)90173-r

[7] J.A. Ghani, I.A. Choudhury & H.H. Masjuki, Wear mechanism of TiN coated carbide and uncoated cermets tools at high cutting speed applications, Journal of Material Processing Technology. 153-154 (2004) 1067-1073.

DOI: 10.1016/j.jmatprotec.2004.04.352

[8] E.A. Rahim & H. Sasahara, An analysis of surface integrity when drilling inconel 718 using palm oil and synthetic ester under MQL condition, Machining Science and Technology. 15 (1) (2011) 76 — 90.

DOI: 10.1080/10910344.2011.557967

[9] J. Sun & Y.B. Guo, A comprehensive experimental study on surface integrity by end milling Ti–6Al–4V, Journal of Materials Processing Technology. 209 (2009) 4036–4042.

DOI: 10.1016/j.jmatprotec.2008.09.022

[10] A. Ginting & M. Nouari, Surface integrity of dry machined titanium alloys, International Journal of Machine Tools & Manufacture. 49 (2009) 325–332.

DOI: 10.1016/j.ijmachtools.2008.10.011

[11] R.S. Pawade, S.S. Joshi, P.K. Brahmankar & M. Rahman, An investigation of cutting forces and surface damage in high speed turning of Inconel 718, Journal of Materials Processing Technology. 192–193 (2007) 139–146.

DOI: 10.1016/j.jmatprotec.2007.04.049

[12] W.Y.H. Liew, S. Yuan & B.K.A. Ngoi, Evaluation of machining performance of STAVAX with PCBN tools, International Journal Advance Manufacturing Technology. 23 (2004) 11–19.

DOI: 10.1007/s00170-002-1520-y

[13] E.M. Trent & P.K. Wright, Metal Cutting. Fourth Edition. Newton: Butterworth-Heinemann (2004).

[14] T.I. El-Wardany, H.A. Kishawy & M.A. Elbestawi, Surface Integrity of Die Material in High Speed Hard Machining, Part 1: Micrographical Analysis, Transactions of the ASME. (2000) 122.

DOI: 10.1115/1.1286367

[15] A.R.C. Sharman, J.J. Hughes & K. Ridgway, Workpiece surface integrity and tool life issues when turning Inconel 718 nickel based superalloy, Machining Science and Technology. 8 (3) (2004) 399 – 414.

DOI: 10.1081/mst-200039865
