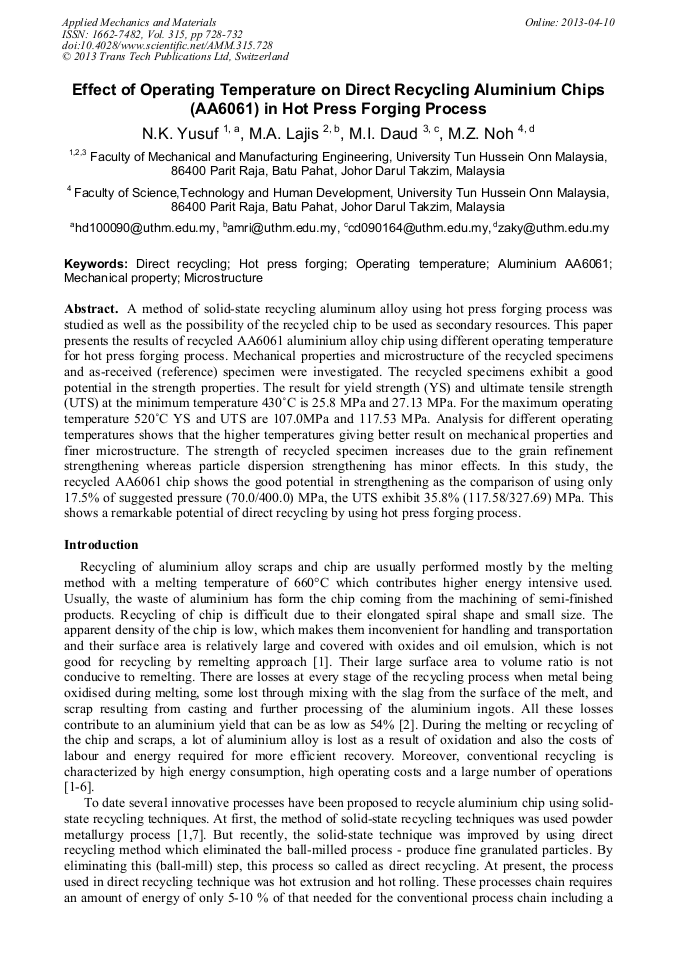

Effect of Operating Temperature on Direct Recycling Aluminium Chips (AA6061) in Hot Press Forging Process

Abstract:

A method of solid-state recycling aluminum alloy using hot press forging process was studied as well as the possibility of the recycled chip to be used as secondary resources. This paper presents the results of recycled AA6061 aluminium alloy chip using different operating temperature for hot press forging process. Mechanical properties and microstructure of the recycled specimens and as-received (reference) specimen were investigated. The recycled specimens exhibit a good potential in the strength properties. The result for yield strength (YS) and ultimate tensile strength (UTS) at the minimum temperature 430°C is 25.8 MPa and 27.13 MPa. For the maximum operating temperature 520°C YS and UTS are 107.0MPa and 117.53 MPa. Analysis for different operating temperatures shows that the higher temperatures giving better result on mechanical properties and finer microstructure. The strength of recycled specimen increases due to the grain refinement strengthening whereas particle dispersion strengthening has minor effects. In this study, the recycled AA6061 chip shows the good potential in strengthening as the comparison of using only 17.5% of suggested pressure (70.0/400.0) MPa, the UTS exhibit 35.8% (117.58/327.69) MPa. This shows a remarkable potential of direct recycling by using hot press forging process.

• Periodical: Applied Mechanics and Materials (Volume 315)
• Pages: 728-732
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.315.728
• Online since: April 2013
• Authors: N.K. Yusuf, Mohd Amri Lajis, M.I. Daud, Mohamad Zaky Noh
• Keywords: AA6061 Aluminum Alloy, Direct Recycling, Hot Press Forging, Mechanical Property, Microstructure, Operating Temperature

References

[1] Gronostajski, J., Marciniak, H., Matuszak, A. Production of Composites on the base of AlCu4 Alloy Chips. Journal of Materials Processing Technology. (1996). 60: 719-722.

DOI: 10.1016/0924-0136(96)02410-7

[2] Gronostajski, J., Kaczmar, J., Marciniak, H., Matuszak, A. Direct Recycling of Aluminum Chip in Extruded Products. Journal of Materials Processing Technology. (1997). 64: 149-156.

DOI: 10.1016/s0924-0136(96)02563-0

[3] Gronostajski J, Marciniak, H., Matuszak, A. New Methods of Aluminum and Aluminum-alloy Chip Recycling. Journal of Materials Processing Technology. (2000). 106: 34-39.

DOI: 10.1016/s0924-0136(00)00634-8

[4] Lazzaro, G. and Atrozi C. Recycling of aluminium trimmings by conform process [C]/TMS Annual Meeting. Warrendale, PA. (1992). 1230−1235.

[5] Maoliang, H., Zesheng, J., Xiaoyu, C., Zhenkao, Z. Effect of chip size on mechanical property and microstructure of AZ91D magnesium alloy prepared by solid state recycling. Journal of Material Characterization (2008). 5 9: 3 8 5 – 3 8 9.

DOI: 10.1016/j.matchar.2007.02.002

[6] Samuel, M. A new technique for recycling aluminium scrap. Journal of Materials Processing Technology. (2003). 135(1): 117−124.

DOI: 10.1016/s0924-0136(02)01133-0

[7] Tekkaya, A.E., Schikorra, M., Becker, D., Biermann, D., Hammer, N., Pantke, K. Hot Profile extrusion of AA-6060 aluminium chips. Journal of Materials Processing Technology. (2009). 209: 3343-3350.

DOI: 10.1016/j.jmatprotec.2008.07.047

[8] Suzuki, K.I., Xinsheng, H., Akira W., Ichinori, S., Naobumi S. Recycling of 6061 aluminium alloy cutting chip using hot extrusion and hot rolling. Materials Science Forum. (2007). 544-54.

DOI: 10.4028/www.scientific.net/msf.544-545.443

[9] Shuyan, W., Zesheng, J., Tielei, Z. Microstructure and mechanical properties of AZ31B magnesium alloy recycled by solid-state process from different size chips. Journal of Materials Processing Technology. (2009). 209: 5319–5324.

DOI: 10.1016/j.jmatprotec.2009.04.002

[10] Fogagnolo, J. B., Ruiz-Navas, E. M., Simon, M. A., Martinez, M. A. Recycling of aluminium alloy and aluminium matrix composite chip by pressing and hot extrusion. Journal of Materials Processing Technology. (2003). 143(2): 792–5.

DOI: 10.1016/s0924-0136(03)00380-7

[11] Kim, Y. H., Ryou, T. K., Choi, H. J., Hwang, B. B. An analysis of the forging processes for 6061 aluminum-alloy wheels. Journal of Materials Processing Technology. (2002). 123 : 270–276.

DOI: 10.1016/s0924-0136(02)00087-0

[12] American Society for Testing and Materials. Standard Test Methods of Tension Testing of Metallic Materials [Metric]. Annual Book or ASTM Standards, ASTM E8M. Vol. 3. 01. (2003).

[13] American Society for Testing and Materials. Standard Guide for Preparation of Metallographic Specimens, ASTM International, West Conshohocken, PA, ASTM E3–01. (2001).

[14] American Society for Testing and Materials. Standard Test Method for Macroetching Metals and Alloys, ASTM International, West Conshohocken, PA, ASTM E340. (2006).

[15] Metals Handbooks, Desk Edition. ASM 1998. ISBN 0-87170-654-7.

[16] Rashid, M. Mathematical Modeling and Opimization of Precipitation Hardening of Extrudable Aluminum Alloys. Ph. D. Thesis. King Fahd University of Petroleum & Minerals: Dhahran, Saudi Arabia; (1997).

DOI: 10.18552/2016/scmt4s267

[17] Meng. C. Effect on preheating condition on strength of AA6060 Aluminium Alloy for Extrusion. Ph. D. Thesis. School of Engineering, Auckland University of Technology; (2010).

[18] Tiryakioglu, M., Campbell, J. and Staley, J. T. On macrohardness testing of Al–7 wt. % Si–Mg alloys II. An evaluation of models for hardness–yield strength relationships. Materials Science and Engineering. (2003). A361: 240–248.

DOI: 10.1016/s0921-5093(03)00514-8

[19] Naka, T., Nakayama, Y., Uemori, T., Hino, R., Yoshida, F. Effects of temperature on yield locus for 5083 aluminum alloy sheet. Journal of Material Processing Technology. (2003). 140: 494–499.

DOI: 10.1016/s0924-0136(03)00780-5

[20] Zhang, H. Hot deformation behavior of the new Al-Mg-Si-Cu aluminium alloy during compression at elevated temperature. Mater Charact. (2007). A(379): 321-326.

[21] Kurt Lange. Handbook of metal forming. University of Stuttgart Copyright © 1985 by McGraw-Hill Book Company. (1985).
