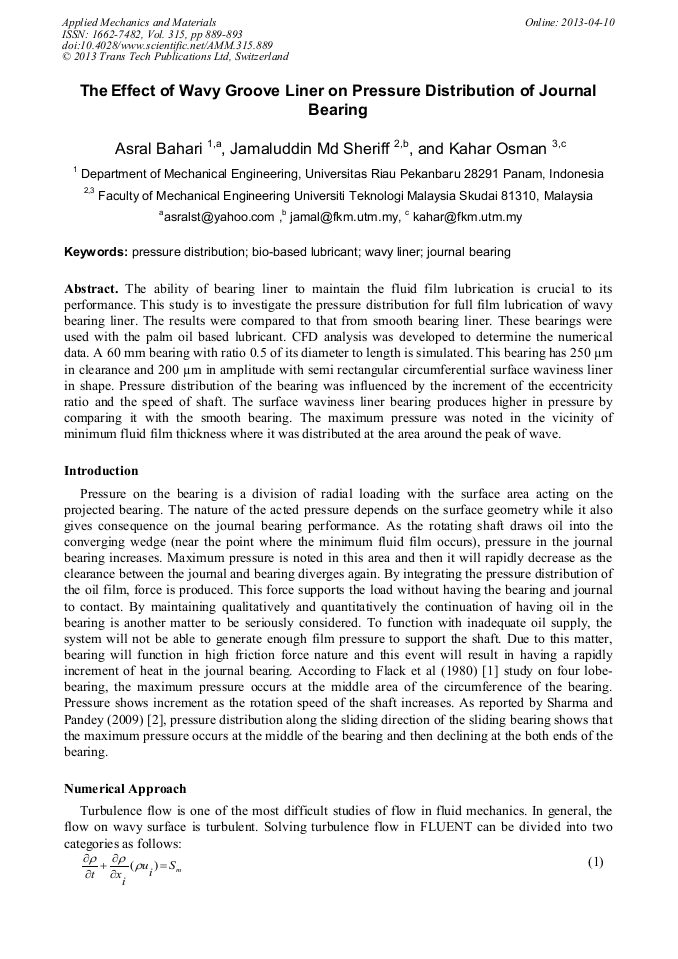

The Effect of Wavy Groove Liner on Pressure Distribution of Journal Bearing

Abstract:

The ability of bearing liner to maintain the fluid film lubrication is crucial to its performance. This study is to investigate the pressure distribution for full film lubrication of wavy bearing liner. The results were compared to that from smooth bearing liner. These bearings were used with the palm oil based lubricant. CFD analysis was developed to determine the numerical data. A 60 mm bearing with ratio 0.5 of its diameter to length is simulated. This bearing has 250 µm in clearance and 200 µm in amplitude with semi rectangular circumferential surface waviness liner in shape. Pressure distribution of the bearing was influenced by the increment of the eccentricity ratio and the speed of shaft. The surface waviness liner bearing produces higher in pressure by comparing it with the smooth bearing. The maximum pressure was noted in the vicinity of minimum fluid film thickness where it was distributed at the area around the peak of wave.

• Periodical: Applied Mechanics and Materials (Volume 315)
• Pages: 889-893
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.315.889
• Online since: April 2013
• Authors: Asral Asral, Jamaluddin Md Sheriff, Kahar Osman
• Keywords: Bio-Based Lubricant, Journal Bearing, Pressure Distribution, Wavy Liner

References

[1] Flack, R.D, Leader, M.E, and Allaire, P.E, An experimental and theoretical investigation of pressures in four lobe bearings, Wear, 1980, 61,233-242.

DOI: 10.1016/0043-1648(80)90288-4

[2] Sharma, R.K and Pandey, R.K, Experimental study of pressure distribution in finite slider bearing with single continuous surface profiles on the pads, Tribology International, 2009, 42, 1040-1045.

DOI: 10.1016/j.triboint.2009.02.010

[3] Gertzos, K.p, Nikolakopoulos, P.G, and Papadopoulos, C.A., CFD analysis of journal bearing hydrodynamic lubrication by Bingham Lubricant, Tribology International, 2008, 41, 1190-1204.

DOI: 10.1016/j.triboint.2008.03.002

[4] Habchi, W, Vergne, P, Bair, S, Anderson, O, Eyheramendy, D, and Morales-Espejel, G.E , Influence of pressure and temperature dependence of thermal properties of a lubricant on the behaviour of circular TEHD contacts, Tribology International, 2010, 43,1842-1850.

DOI: 10.1016/j.triboint.2009.10.002

[5] Rasheed, Hassan .E, Effect of surface waviness on the hydrodynamic lubrication of a plain cylindrical sliding element bearing, Wear, 1998, 223,1-6.

DOI: 10.1016/s0043-1648(98)00263-4

[6] Read, L.J, and Flack, R.D, Temperature, pressure and film thickness measurement for an offset half bearing, Wear, 1987, 117, 197-210.

DOI: 10.1016/0043-1648(87)90255-9

[7] Costa, L, Fillon, M, Miranda, A.S and Claro, J.C.P, An experimental investigation of the effect of groove location and supply pressure on the THD performanceof a steadily loaded journal bearing, Journal of Tribology, 2000,122,227.

DOI: 10.1115/1.555347
