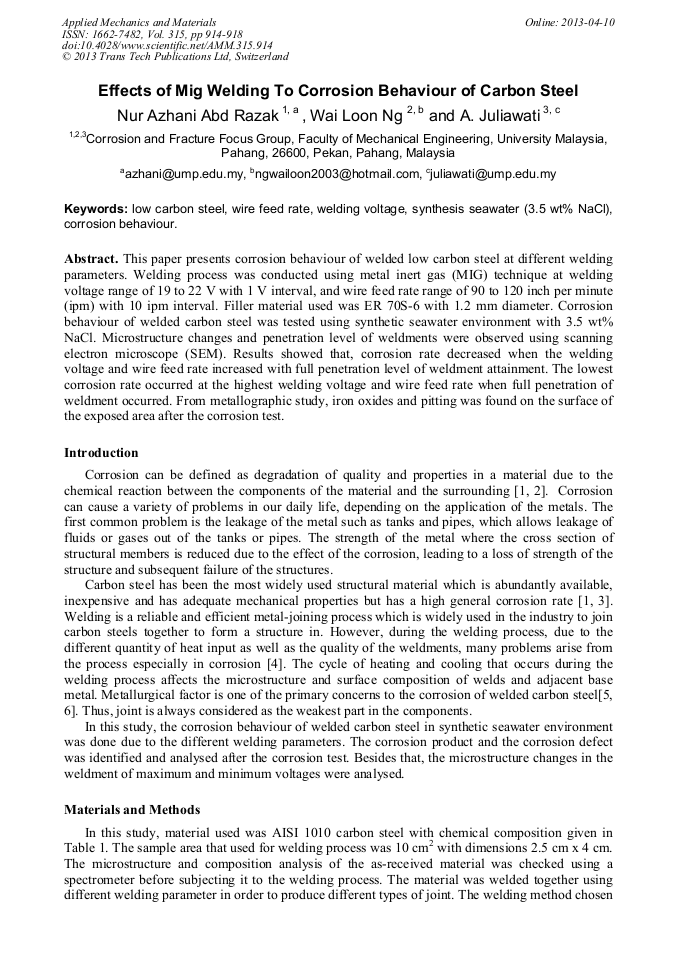

Effects of Mig Welding to Corrosion Behaviour of Carbon Steel

Abstract:

This paper presents corrosion behaviour of welded low carbon steel at different welding parameters. Welding process was conducted using metal inert gas (MIG) technique at welding voltage range of 19 to 22 V with 1 V interval, and wire feed rate range of 90 to 120 inch per minute (ipm) with 10 ipm interval. Filler material used was ER 70S-6 with 1.2 mm diameter. Corrosion behaviour of welded carbon steel was tested using synthetic seawater environment with 3.5 wt% NaCl. Microstructure changes and penetration level of weldments were observed using scanning electron microscope (SEM). Results showed that, corrosion rate decreased when the welding voltage and wire feed rate increased with full penetration level of weldment attainment. The lowest corrosion rate occurred at the highest welding voltage and wire feed rate when full penetration of weldment occurred. From metallographic study, iron oxides and pitting was found on the surface of the exposed area after the corrosion test.

• Periodical: Applied Mechanics and Materials (Volume 315)
• Pages: 914-918
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.315.914
• Online since: April 2013
• Authors: Nur Azhani Abd Razak, Wai Loon Ng, A. Juliawati
• Keywords: Corrosion Behaviour, Low Carbon Steel, Synthesis Seawater (3.5 wt% NaCl), Welding Voltage, Wire Feed Rate

References

[1] M.G. Fontana, Corrosion Engineering third edition, Singapore, McGraw-Hill. (1986).

[2] K. Seifedine, Corrosion analysis of stainless steel, European Journal of Scientific Research. 22 (2008) 508-516.

[3] F.S. Kadhim, Investigation of carbon steel corrosion in water base drilling mud, Modern Applied Science. 5 (2011) 224-229.

DOI: 10.5539/mas.v5n1p224

[4] R.S. Funderburk, Key concepts in welding engineering, Welding Innovation. 16 (1999).

[5] R. Davis, Basic understanding of weld corrosion, Corrosion of Weldments. (2006).

[6] F.S. William, and H. Javad, Foundation of Materials Science and Engineering, fourth edition. Singapore, McGraw-Hill. (2006).

[7] Murugan, and R.S. Parmar, Effects of MIG process parameters on the geometry of the bead in the automatic surfacing of stainless steel, Journal of Materials Processing Technology. 41(1994) 381-398.

DOI: 10.1016/0924-0136(94)90003-5

[8] C.C. Silva, H.C. Miranda, H. Sant'Ana, and J.P. Farias, Microstructure, hardness and petroleum corrosion evaluation of 316L/AWS E309 MoL-16 weld metal, Material Characterization. 60 (2008) 346-352.

DOI: 10.1016/j.matchar.2008.09.017

[9] S.P. Kumaresh, Influence of heat input on high temperature weldment corrosion in submerged arc welded power plant carbon steel, Materials and Design. 29 (2007) 1036-1042.

DOI: 10.1016/j.matdes.2007.04.009

[10] T. Udomphol, Solidification and phase transformations in welding. (2007).

[11] A. Iversen, and B. Leffler, Aqueous corrosion of stainless steel, Ferrous Metal and Alloys. (2010) 1806-1877.

[12] A. Garner, The effect of autogeneous welding on chloride pitting corrosion in austenitic stainless steels, Corrosion. 35 (1979) 108-114.

DOI: 10.5006/0010-9312-35.3.108

[13] E.A. Noor, and A.H. Al-Moubaraki, Corrosion behaviour of mild steel in hydrochloric acid solutions, International Journal Electrochemical Science. 3 (2008) 806-818.
